16
INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Product description: General description

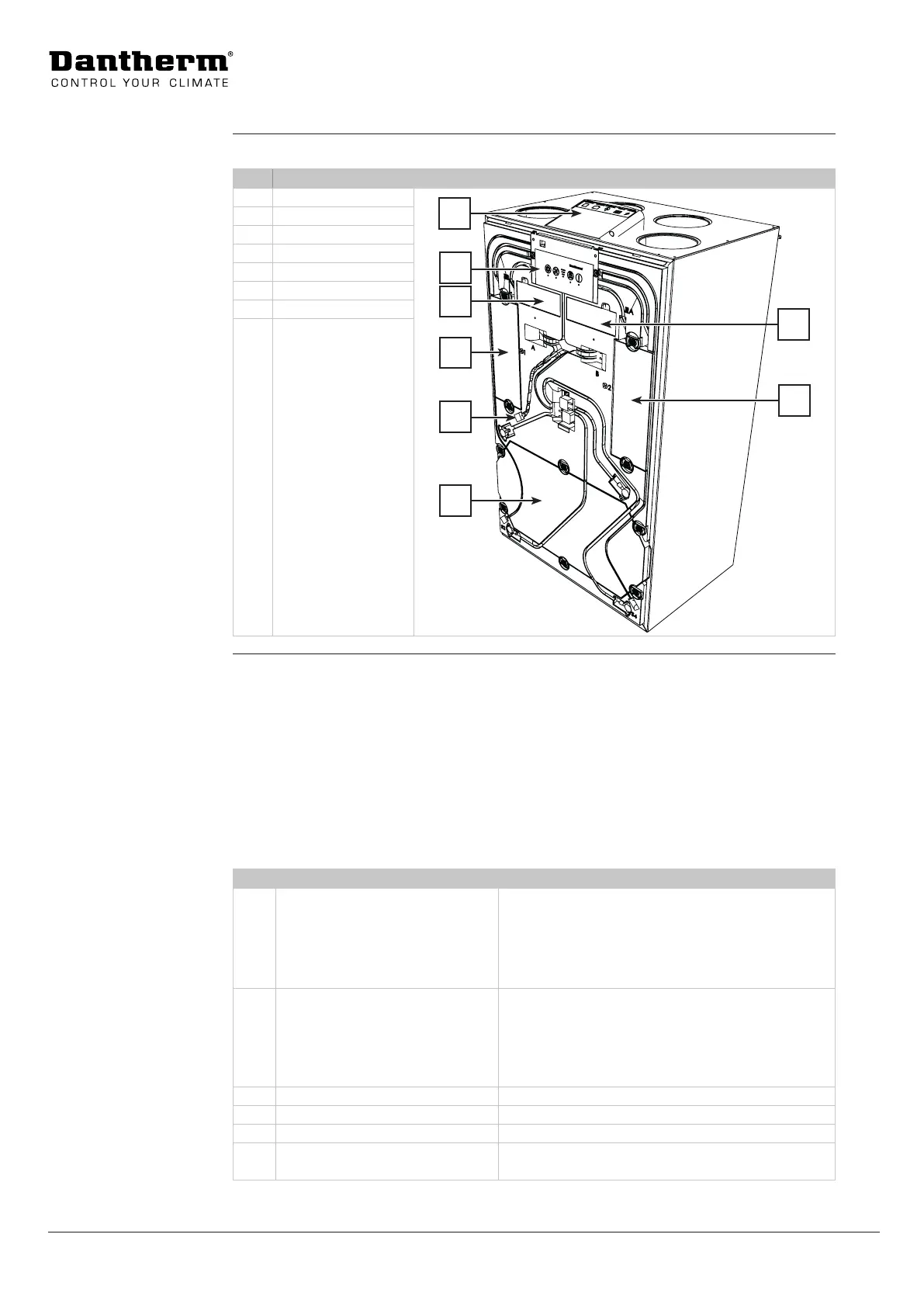

This illustration shows the HCV 300/500/700 unit without cover.
Loc. Part Illustration
1 Control panel
3
1
2
4
5
6
7
8
2 Filter 1
3 Filter 2
4 Main PCB
5 Fan case 1
6 Fan case 2
7 Bypass
8 Heat exchanger
Fig. 3
The HCV units are available in dierent variants. The functionality and installation of the vari-
ants are exactly the same. The variants only dier according to their heat exchanger and fan
or built-in accessories, which aects the performance of the unit.
This variant name is just an example (describing the syntax) and is not necessarily identical to
your HCV unit (see Fig. 4 for the exact variant name of your unit):
HCV 400 E1-A-BP-RH-PH
Loc. Description Options
1 Product name HCV 300
HCV 400
HCV 460
HCV 500
HCV 700
2 Heat exchanger ALU (aluminium)
P1 (plastic 1)
P2 (plastic 2)
P1/E1 (enthalpy) (P1 heat exchanger can be re-
placed by enthalpy heat exchanger)
3 Mode A/B (factory default) A
4 Equipped with bypass BP
5 Equipped with moisture sensor RH
6 Equipped with pre-heater PH (If this part is missing, the unit is not equipped
with a preheater)
Product illustra-
tion
HCV 300/500/700
Variant description
1
2
3 4 5 6
