Operation guide | DST 730 Top level inclination sensor
4 | © Danfoss | DCS (im) | 2019.04
AQ304230922416en-000101 | IC.PS.P21.L1.02
2.

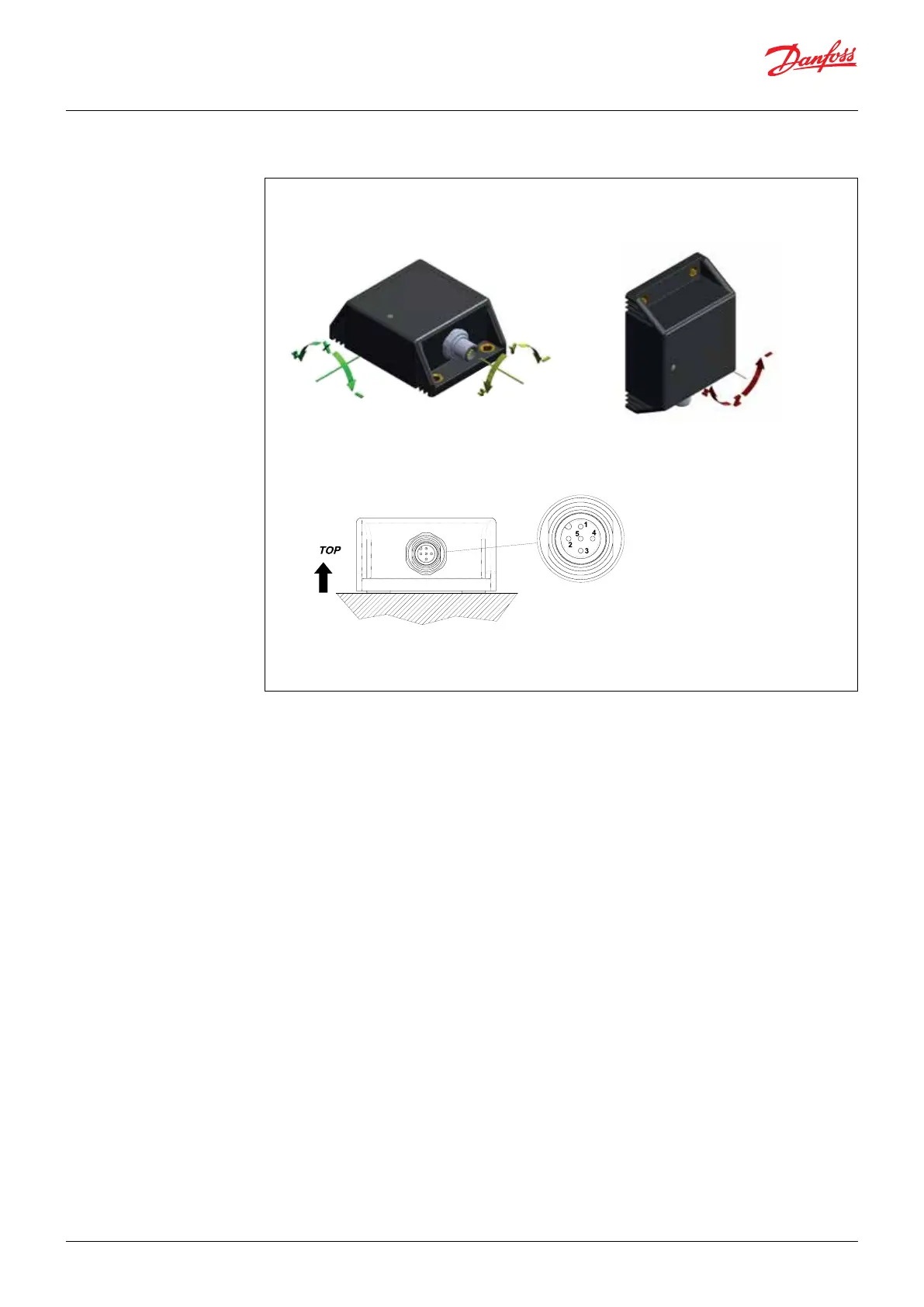

Electrical connections
2.1
M12 x 1, 5-pin 43-01090
CONNECTIONS
1.: NC
2.: + VS (+10 - +36 VDC)
3.: GROUND
4.: CAN-L
5.: CAN-H
NOTE:
Please make sure that the CANbus is terminated.
The impedance measured between CAN-H and
CAN-L must be 60 ohm that means the cable
must be connected to a 120 ohm resistor on each
ends of the bus line. Internally the tranducer is
not terminated with the resistor of 120 ohm.
Do not confuse the signal lines of the CAN bus,
otherwise communication with the transducer is
impossible.
