Air Conditioner Service Manual
35

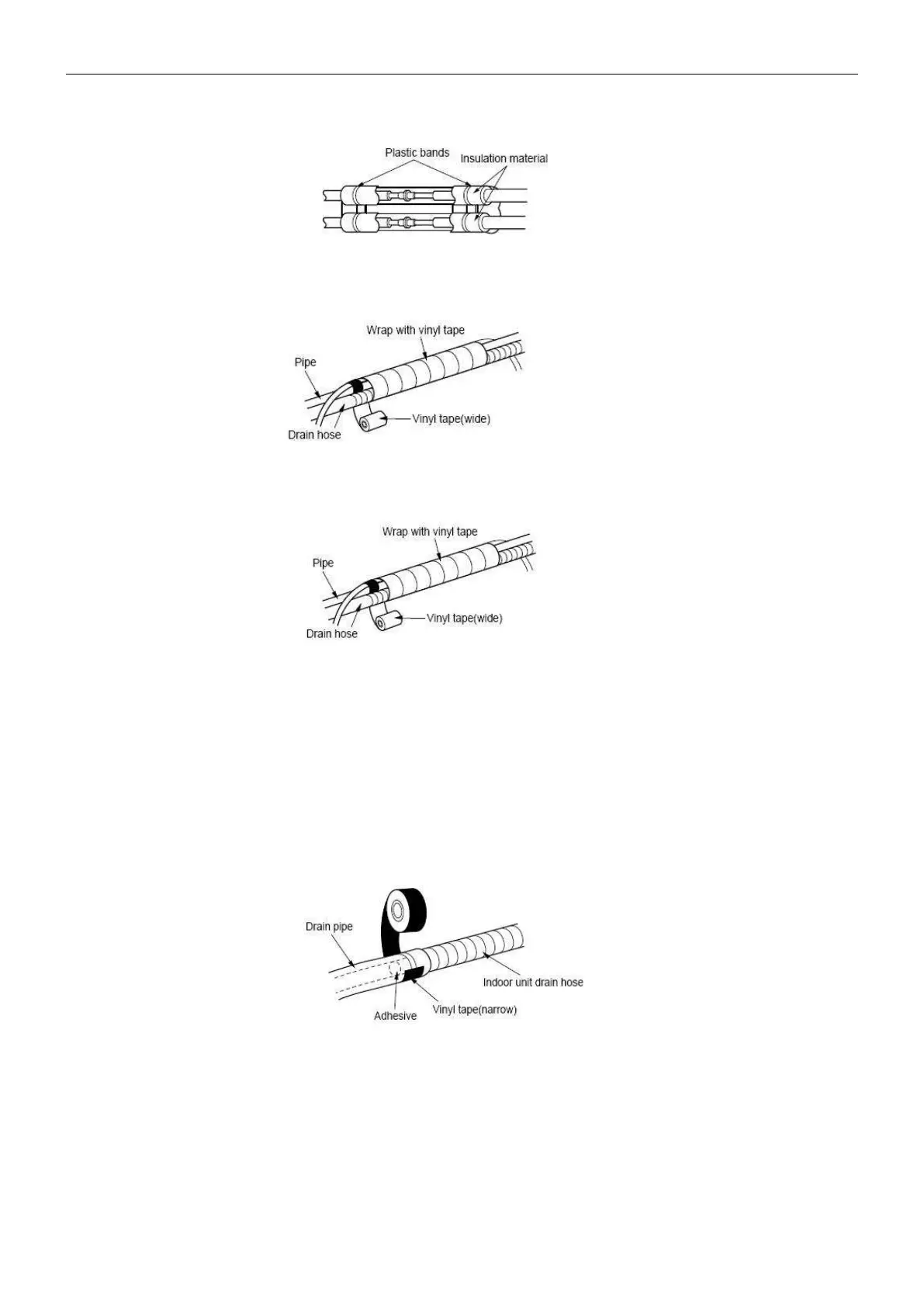

with vinyl tape so that there is no gap.
Wrap the area which accommodates the rear piping housing section with vinyl tape.
Bundle the piping and drain hose together by wrapping them with vinyl tape over the range within which they fit
into the rear piping housing section.
6. Indoor unit condensed water drainage
The indoor unit condensed water drainage is fundamental for the success of the installation.
1).Place the drain hose below the piping, taking care not to create siphons.
2).The drain hose must slant downwards to aid
drainage.
3).Do not bend the drain hose or leave it protruding or twisted and do not put the end of it in water. If an
extension is connected to the drain hose, ensure that it is lagged when it passes into the indoor unit.
4).If the piping is installed to the right, the pipes, power cable and drain hose must be lagged and secured onto
the rear of the unit with a pipe connection.
Insert the pipe connection into the relative slot.
Press to join the pipe connection to the base.
