Air Conditioner Service Manual
34

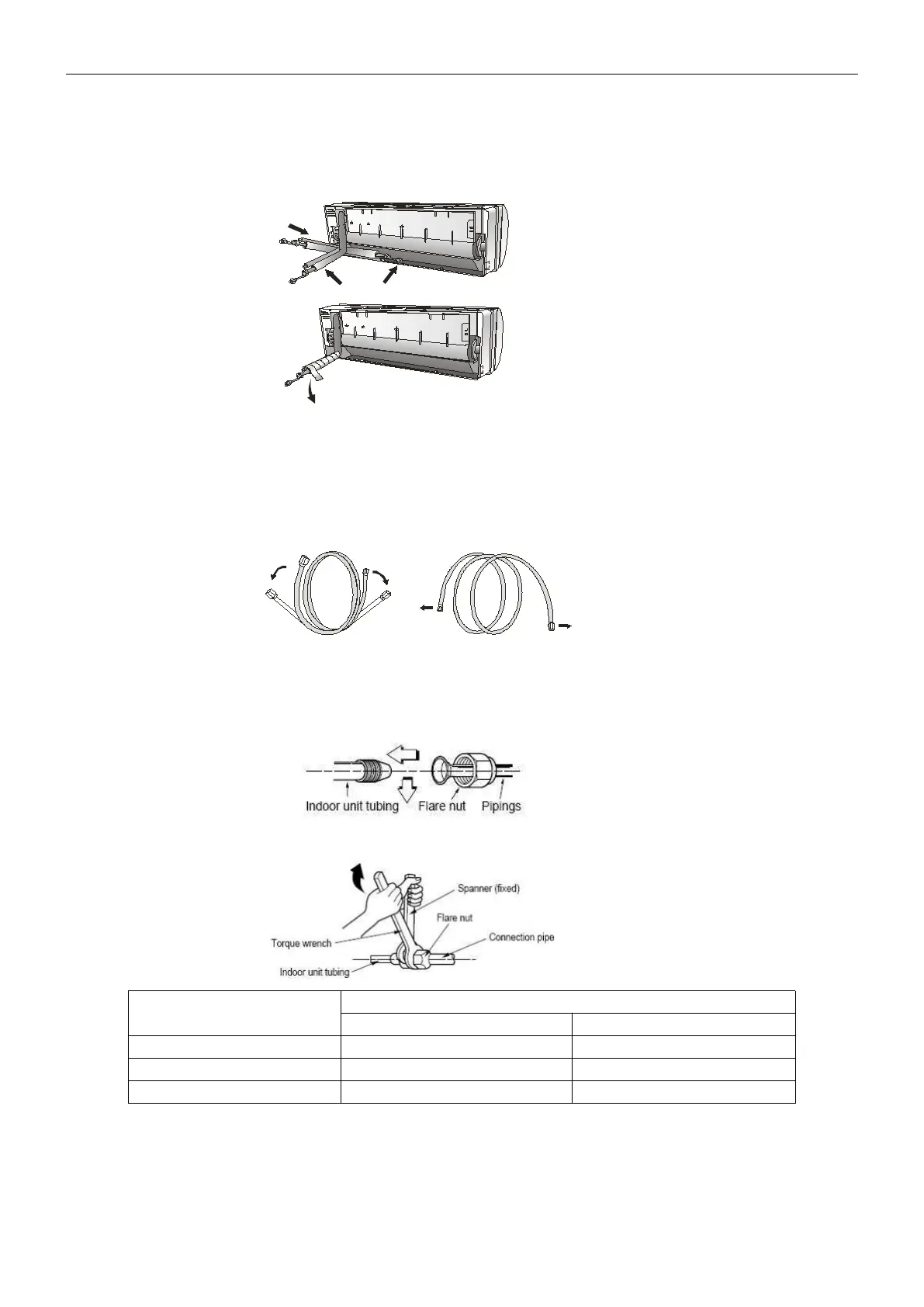

or 3, cut a notch along the groove on the side of the indoor unit with a cutter.
Run the piping in the direction of the wall hole and bind the copper pipes, the drain pipe and the power cables
together with the tape with the drain pipe at the bottom, so that water can flow freely.
4. Connecting the pipes.
Do not remove the cap from the pipe until connecting it, to avoid dampness or dirt from entering.
If the pipe is bent or pulled too often, it will become stiff. Do not bend the pipe more than three times at one
point.
When extending the rolled pipe, straighten the pipe by unwinding it gently as shown in the picture.
5. Connections to the indoor unit
1).Remove the indoor unit pipe cap (check that there is no debris inside).
2).Insert the fare nut and create a flange at the extreme end of the connection pipe.
3).Tighten the connections by using two wrenches working in opposite directions.
When extending the drain hose at the indoor unit, install the drain pipe.
Wrap the insulation material around the connecting portion.
Overlap the connection pipe insulation material and the indoor unit pipe insulation material. Bind them together
Capacity
(Btu/h)
Pipe Size (Torque)
Gas
Liquid
7/9/12K
3/8" (4.2kg.m)
1/4" (1.8kg.m)
18K
1/2" (5.5kg.m)
1/4" (1.8kg.m)
24K
5/8" (6.6kg.m)
3/8" (4.2kg.m)
3
2
1
Shape the connection pipe
NO
YES
Extending the rolled pipe
