Air Conditioner Service Manual
42
loose.
● The unit must be installed following the national regulations.
Outdoor unit condensed water drainage
(only for heat pump models)
● The condensed water and the ice formed in the outdoor unit during heating operation can be drained away
through the drain pipe.

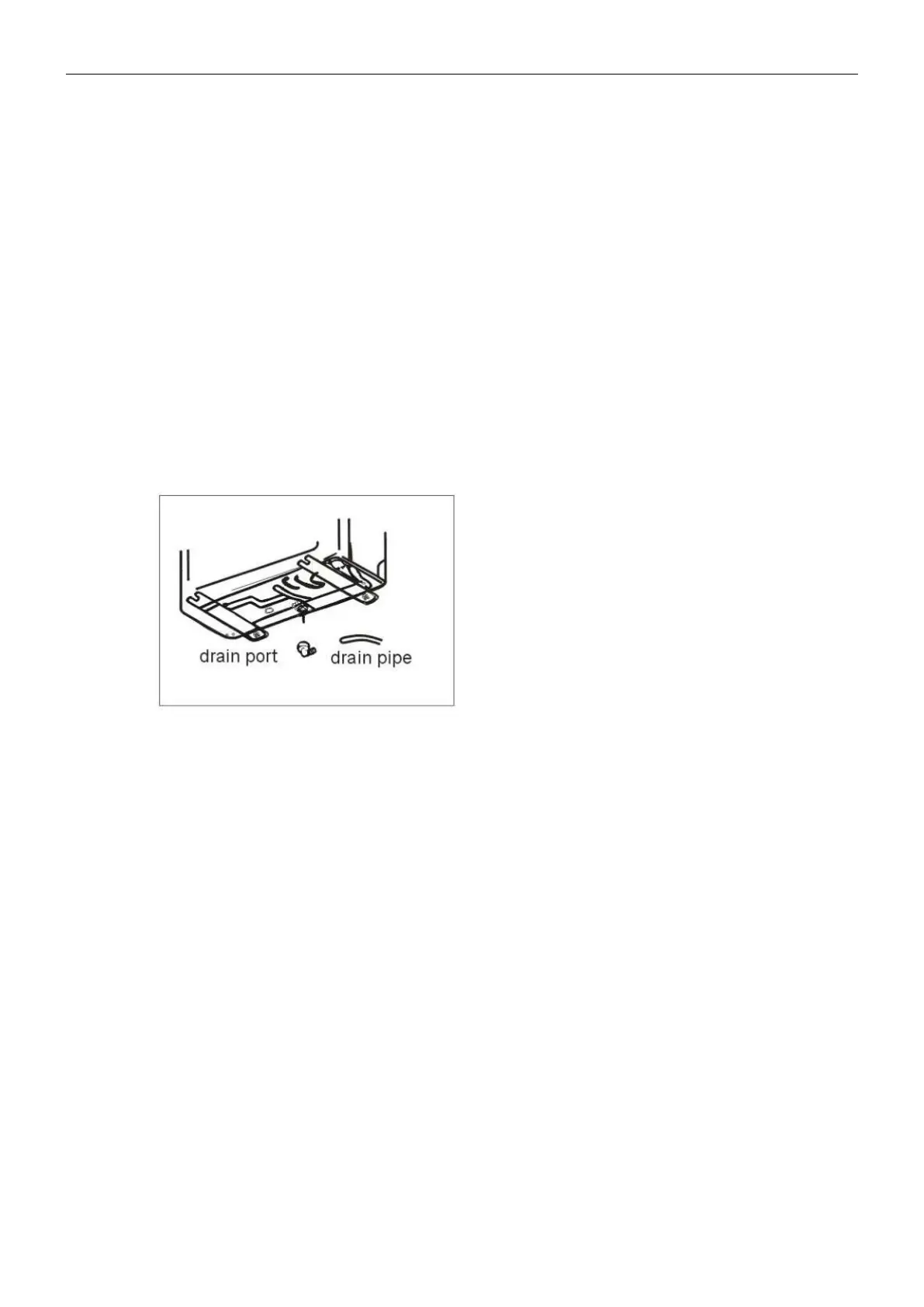

1) Fasten the drain port in the 25mm hole placed in the part of the unit as shown in the picture.
2) Connect the drain port and the drain pipe.
Pay attention that water is drained in a suitable place.
.
5.5 Electrical Installation
Cable Connection Between IDU To ODU
Note:Plug the connective cables to the corrersponding terminals,as shown.
For example,terminal (A) of the ourdoor unit must connect with terminal (A) on the indoor unit.
Note:
1)Connect to internal and external communication lines.
2)Connect the fire line.
3)Connect the zero line.
