Air Conditioner Service Manual
41
10. Using allen wrench, fully open the master valves (M1, M2) on the top and the high pressure side
service valves (A1, B1, C1, etc.).
11. Tighten valve caps on all valves (master valves, high side and low side services valves) by hand. You
may tighten it further using a torque wrench if needed.
NOTICE: Open valve stems gently, When opening service valve, turn the allen wrench until it hits against
the stopper. Do not try to force the valve to open further.
5.4.2 Pipe Length and Additional Refrigerant
Inverter Models ODU Capacity (Btu/h)
2 Zone system
3 Zone system
4 Zone system
5 Zone system
Max equivalent length for all indoor units
131ft/40m
197ft/60m
197ft/80m
295ft/90m
Max length to farthest indoor unit
82ft/25m
98ft/30m
98ft/30m
98ft/30m
Max height difference between indoor and
outdoor unit
49ft/15m
49ft/15m
49ft/15m
49ft/15m
Max height difference btw indoor
33ft/10m
33ft/10m
33ft/10m
33ft/10m
Standard refrigerant pipe length (ft/m)
49ft/15m
74ft/22.5m
98ft/30m
123ft/37.5m
Additional refrigerant charge (Based on
the IDU liquid line size)
1/4in 0.11oz/ft
1/4in 0.11oz/ft
1/4in 0.11oz/ft
3/8in 0.22oz/ft
1/4in 0.11oz/ft
3/8in 0.22oz/ft

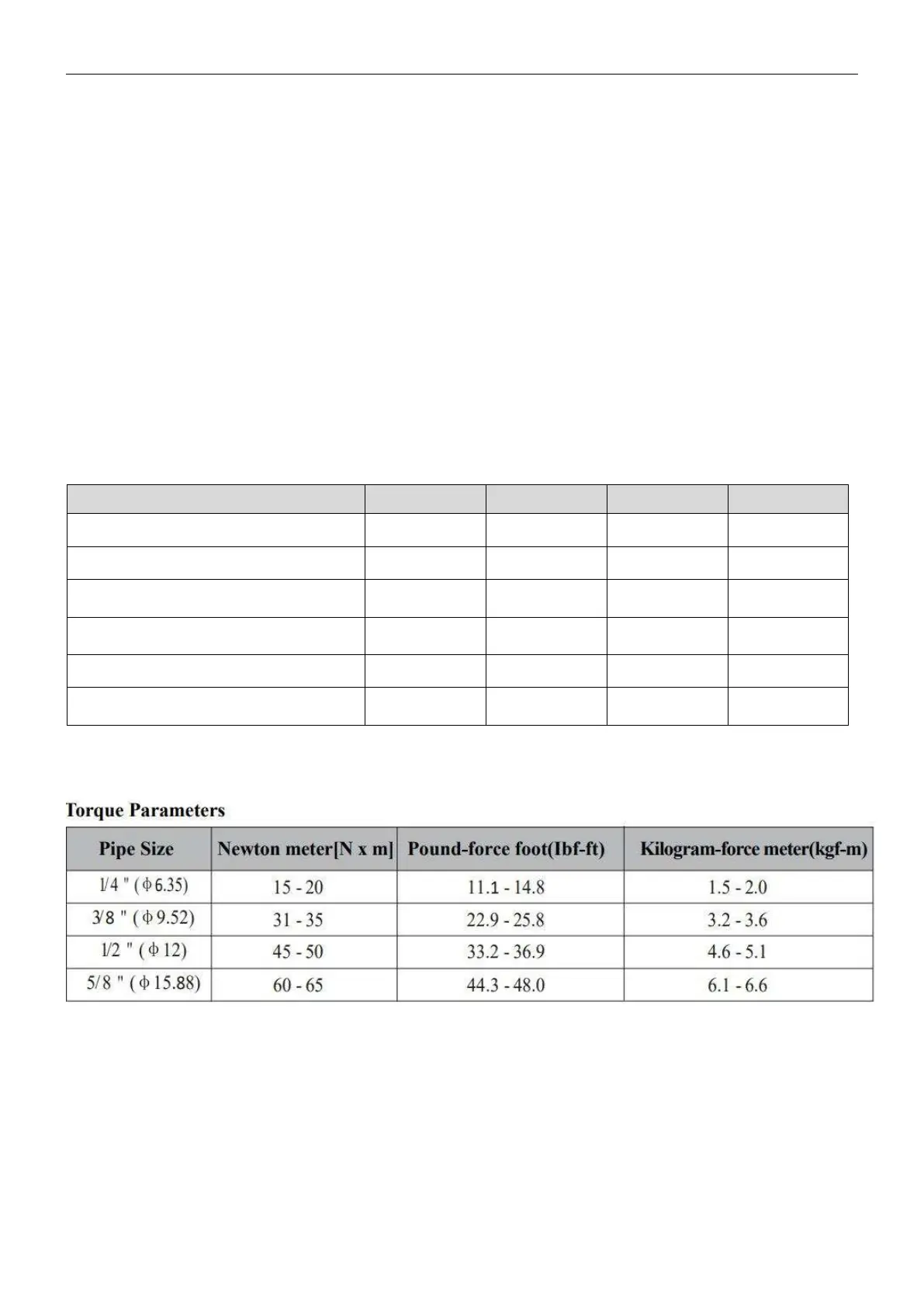

5.4.3 Torque Parameters
5.4.4 Outdoor Side Drain Pipe
● The outdoor unit should be installed on a solid wall and fastened securely.
● The following procedure must be observed before connecting the pipes and connecting cables : decide
which is the best position on the wall and leave enough space to be able to carry out maintenance easily.
● Fasten the support to the wall using screw anchors which are particularly suited to the type of wall;
● Use a larger quantity of screw anchors than normally required for the weight they have to bear to avoid
vibration during operation and remain fastened in the same position for years without the screws becoming
