Please prepare spanner and flat-blade screw-
driver before your installation work.
Australia Models

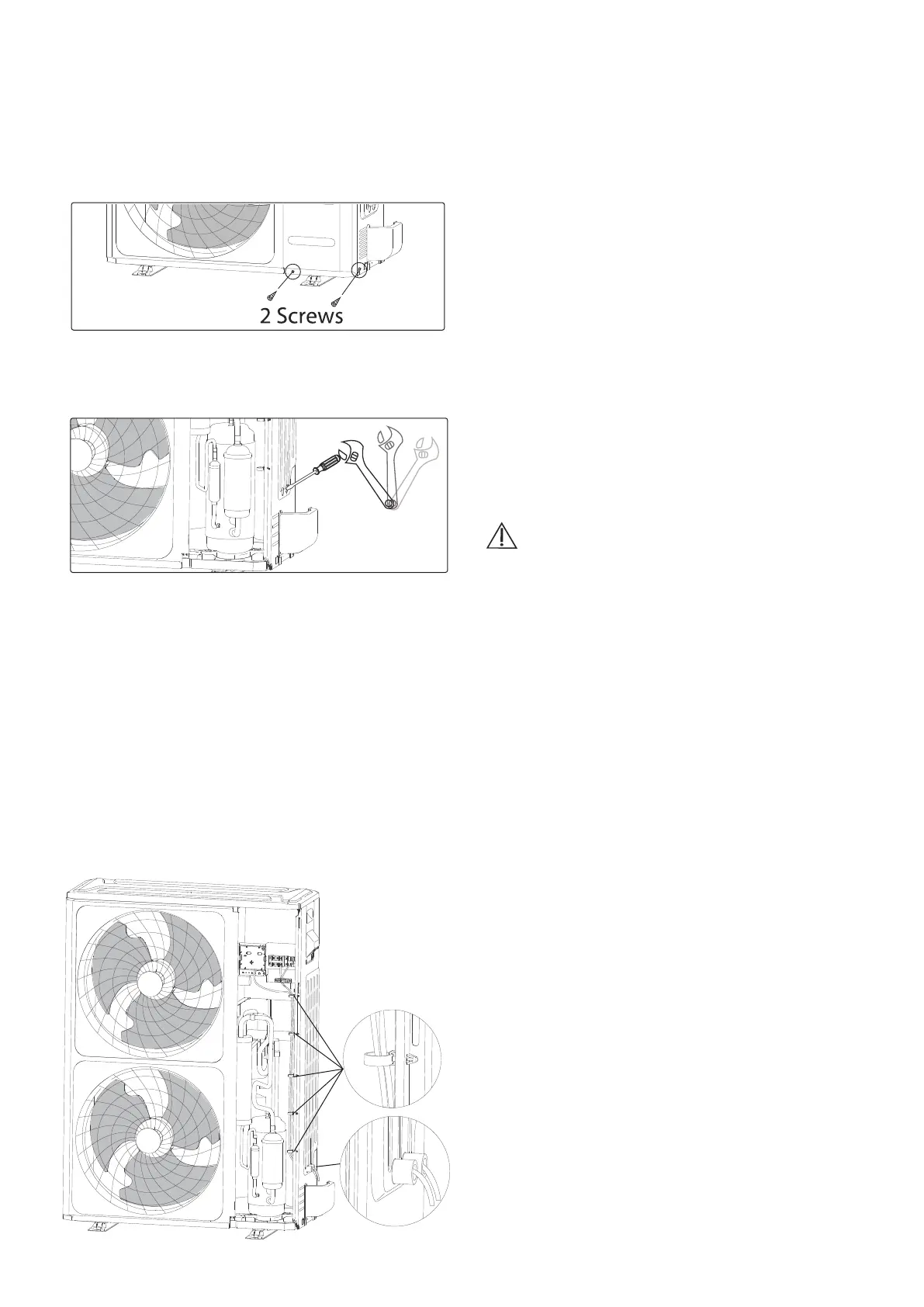

1. Remove two fixing screws, then remove
the front panel.
2. Use spanner and flat-blade screwdriver to
knock down two metal seals, the pick the
metal flakes out.
3. Connect the power cable and indoor &
outdoor connection cable. Clamp down
the cable with the cable clamp.
4. The wire groups shall be bound with
cable ties and fixed on the right side plate
after they are connected. The strong
electric wire group and weak electric wire
shoup shall be led out separately through
the two knock down holes on the bottom
of the right side plate and fastened with a
locking connector as shown in the figure
below.
Outdoor Unit Wiring
1. Prepare the cable for connection
A. Using wire strippers, strip the rubber
jacket from both ends of the signal
cable to reveal about 15cm(5.9”) of
the wire.
B. Strip the insulation from the ends of
the wires.
C. Using a wire crimper, crimp the u-lugs
to the ends of the wires.
2. Remove the cover of the electric control
box on your indoor unit.
3. Connect the u-lugs to the terminals.
Match the wire colors/labels with the
labels on the terminal block. Firmly screw
the u-lug of each wire to its correspond-
ing terminal. Refer to the Serial Number
and Wiring Diagram located on the cover
of the electric control box.
4. Clamp down the cable with the cable
clamp. The cable must not be loose or
pull on the u-lugs.
5. Reattach the electric box cover.
• While connecting the wires, please strictly
follow the wiring diagram.
• The refrigerant circuit can become very hot.
Keep the interconnection cable away from
the copper tube.
CAUTION
Page 39
