1. Prepare the cable for connection
2. Remove the 2 screws fixed on the front
3. Connect the u-lugs to the terminals.
Match the wire colors/labels with the
labels on the terminal block. FIrmly screw
the u-lug of each wire to its correspond-
ing terminal.
4. Clamp down the cable with the cable
clamp.
5. Insulate unused wires with electrical tape.
Keep them away from any electrical or
metal parts.
6. Reinstall the cover of the electric control
box.
1. Prepare the cable for connection
A. You must first choose the right cable
size. Be sure to use H07RN-F cables.
B. Using wire strippers, strip the rubber
jacket from both ends of the signal
cable to reveal approximately 15cm
(5.9”) of wire.
C. Strip the insulatiion from the ends.
D. Using a wire crimper, crimp u-lugs on
the ends.
Page 38
Outdoor Unit Wiring
Minimum Cross-Sectional Area of
Power and Signal Cables
(for reference)
CHOOSE THE RIGHT CABLE SIZE
Before performing any electrical or wiring
work, turn o the main power to the system.
The size of the power supply cable, signal
cable, fuse, and switch needed is determined
by the maximum current is indicated on the
nameplate located on the side planel of the
unitl Refer to this nameplate to choose the
right cable, fuse, or switch.
1. Prepare the cable for connection
A. You must first choose the right cable
size. Be sure to use H07RN-F cables.
1. Prepare the cable for connection

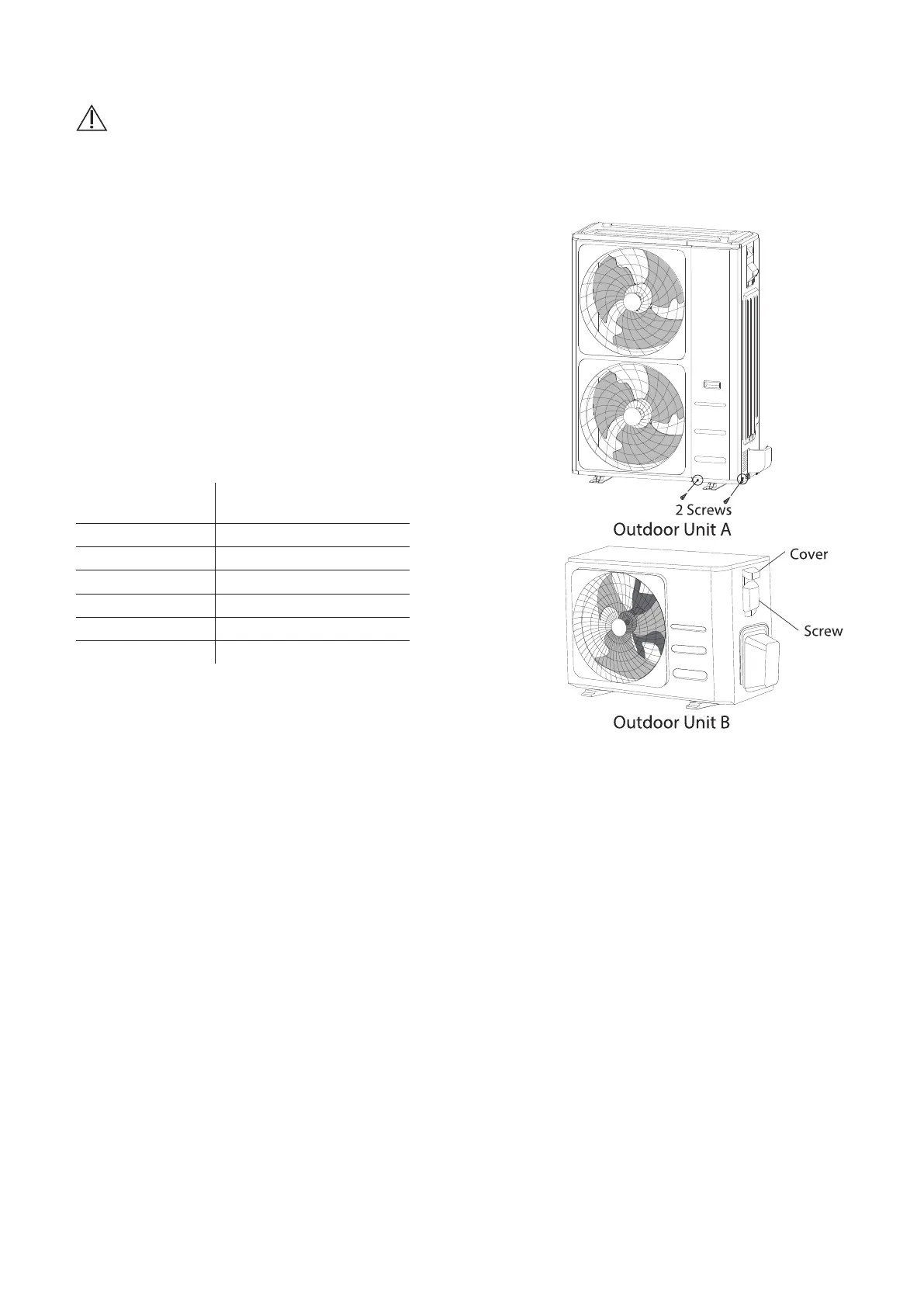

2. Remove the 2 screws fixed on the front
panel and side panel, then take it down to
perform wire connection (see the figure
of outdoor unit A). Unscrew the electrical
wiring cover and remove it. (see the
figure of outdoor unit B)
WARNING
NOTE: In North America, choose the cable
type according to the local electrical codes
and regulations.
NOTE: In North America, please choose the
right cable size according to the Minimum
Circuit Ampacity indicated on the nameplate
of the unit.
NOTE: When connecting the wires, strictly
follow the wiring diagram found inside the
electrical box cover.
Rated Current
of Appliance (A)
Nominal Cross-Sectional
Area (mm2)
>6 and ≤10
>10 and ≤16
>16 and ≤25
>25 and ≤32
>32 and ≤40
>3 and ≤6
1
1.5
2.5
4
6
0.75
