Drainpipe Installation
The drainpipe is used to drain water away
from the unit. Improper installation may
cause unit and property damage.
• Insulate all piping to prevent condensation,
which could lead to water damage.
• If the drainpipe is bent or installed incor-
rectly, water may leak and cause a water-lev-
el switch malfunction.
• In HEAT mode, the outdoor unit will
discharge water. Ensure that the drain hose is
placed in an appropriate area to avoid water
damage and slippage.
• DO NOT pull the drainpipe forcefully. This
could disconnect it.
WARNING
Installation requires a PVC tube (exterior
diameter = 1in(25mm) ) (depending on
models), which can be obtained at your
localhardware store or dealer.
NOTE ON PURCHASING PIPES
• When using an extended drainpipe, tighten
the indoor connection with an additional
protection tube to prevent it from pulling
loose.
• The drainpipe should slope downward at a
gradient of at least 1/100 to prevent water
from flowing back into the air conditioner.
• To prevent the pipe from sagging, space
hanging wires every 1-1.5m (39-59”).
• If the outlet of the drainpipe is higher than
the body’s pump joint, provide a lift pipe for
the exhaust outlet of the indoor unit. The lift
pipe must be installed no higher than 75cm
(29.5”) from the ceiling board and the
distance between the unit and the lift pipe
must be less than 30cm (11.8”) (depending on
models). Incorrect installation could cause
water to flow back into the unit and flood.
• To prevent air bubbles, keep the drain hose
level or slightly tiled up (<75mm / 3”) (some
models ).
NOTE ON DRAINPIPE
INSTALLATION

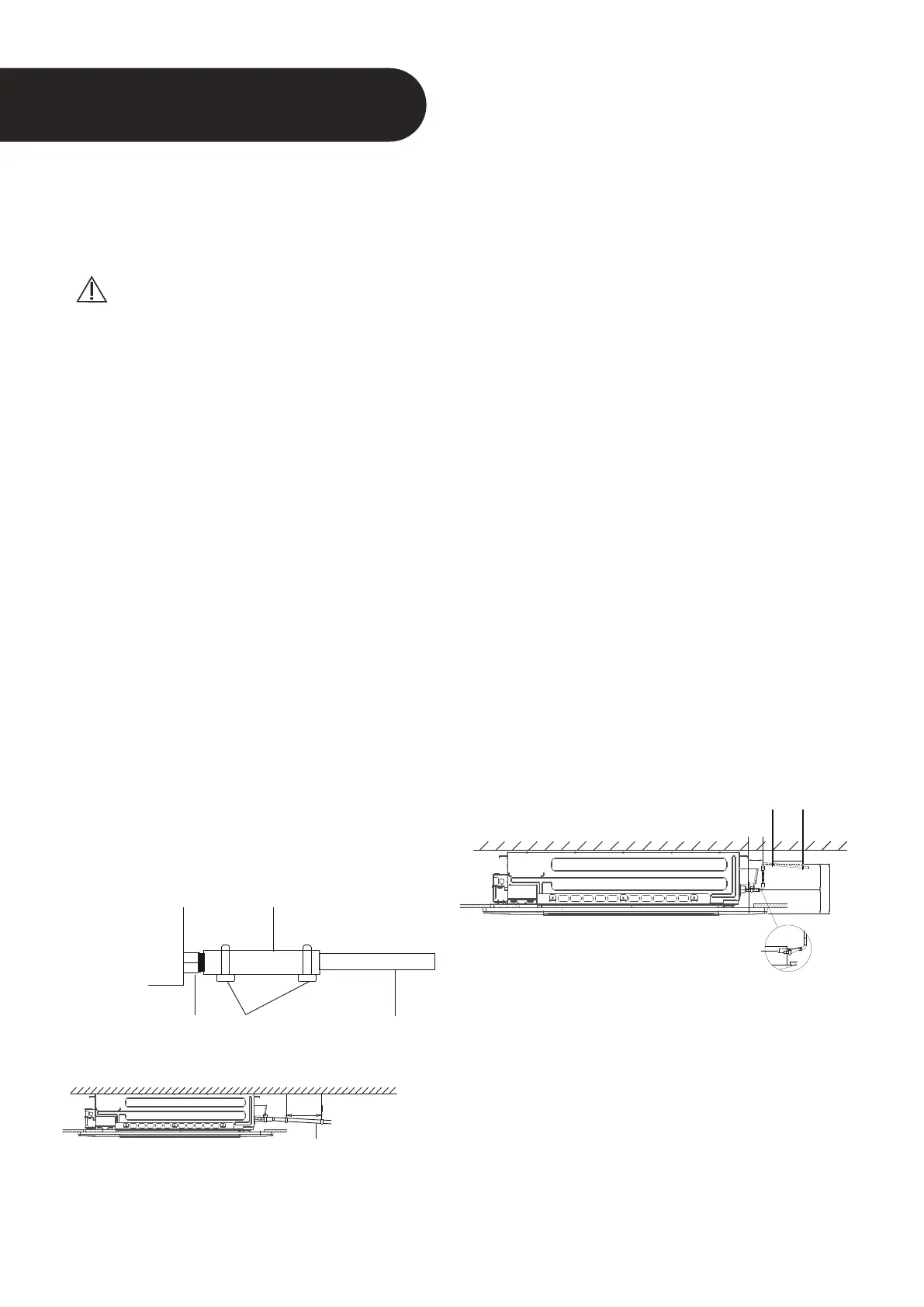

Install the drainpipe as illustrated in the
following figure.
Connect drainpipe to the indoor unit via
drain adaptor.
Indoor Drainpipe Installation
Drainpipe
connecting port
Drainpipe
Metal clamp
Downward slope
1/100
1-1.5m
(39-59”)
≤75cm
(29.5”)
1 - 1.5m
(39-59”)
0 - 75mm
(3”)
≤30cm
(11.8”)
≤53cm
(20.8”)
22cm
(8.6”)
Page 31
