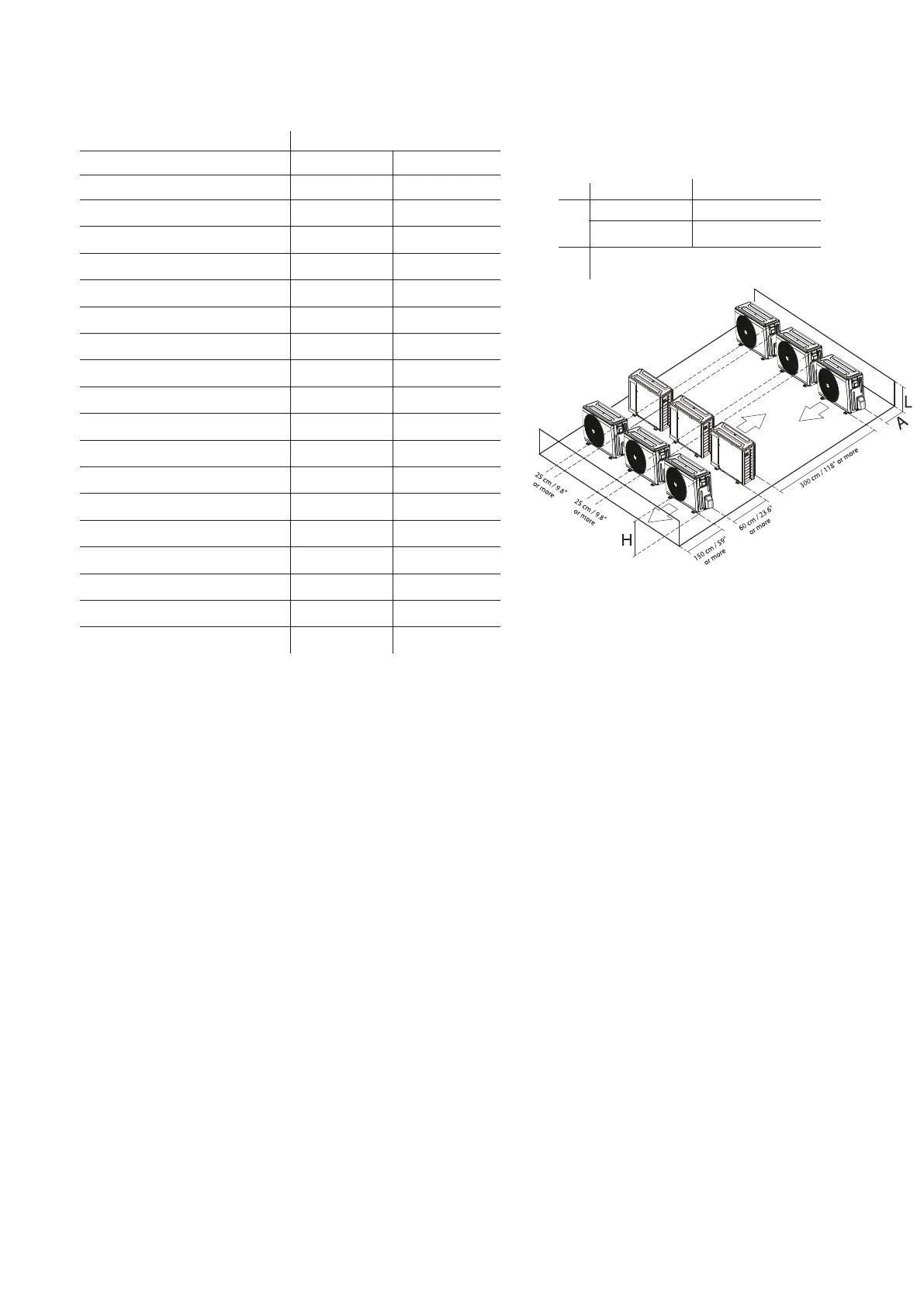

(unit: mm/inch) Rows of series installation
The relations between H, A and L
are as follows
Outdoor Unit Dimensions
W x H x D
Mounting Dimensions
760x590x285 (29.9x23.2x11.2)
810x558x310 (31.9x22x12.2)
845x700x320 (33.27x27.5x12.6)
900x860x315 (35.4x33.85x12.4)
945x810x395 (37.2x31.9x15.55)
990x965x345 (38.98x38x13.58)
938x1369x392 (36.9x53.9x15.4)
900x1170x350 (35.4x46x13.8)
800x554x333 (31.5x21.8x13.1)
845x702x363 (33.27x27.6x14.3)
946x810x420 (37.24x31.9x16.5)
946x810x410 (37.24x31.9x16.14)
952x1333x410 (37.5x52.5x16.14)
952x1333x415 (37.5x52.5x16.34)
890x673x342 (35x26.5x13.46)
765x555x303 (30.1x21.8x11.9)
805x554x330 (31.7x21.8x12.9)
770x555x300 (30.3x21.8x11.8)
Distance A Distance B
530 (20.85) 209 (11.4)
549 (21.6) 325 (12.8)
560 (22) 335 (13.2)
590 (23.2) 333 (13.1)
640 (25.2) 405 (15.95)
624 (24.58) 366 (14.4)
634 (24.96) 404 (15.9)
590 (23.2) 378 (14.88)
514 (20.24) 340 (13.39)
540 (21.26) 350 (13.8)
673 (26.5) 403 (15.87)
673 (26.5) 403 (15.87)
634 (24.96) 404 (15.9)
634 (24.96) 404 (15.9)
663 (26.1) 354 (13.94)
452 (17.8) 286 (11.3)
511 (20.1) 317 (12.5)
487 (19.2) 298 (11.7)
L
L ≤ H
L > H
A
L ≤ 1/2H
1/2H < L ≤ H
Cannot be installed
25cm / 9.8” or more
30cm / 11.8” or more
