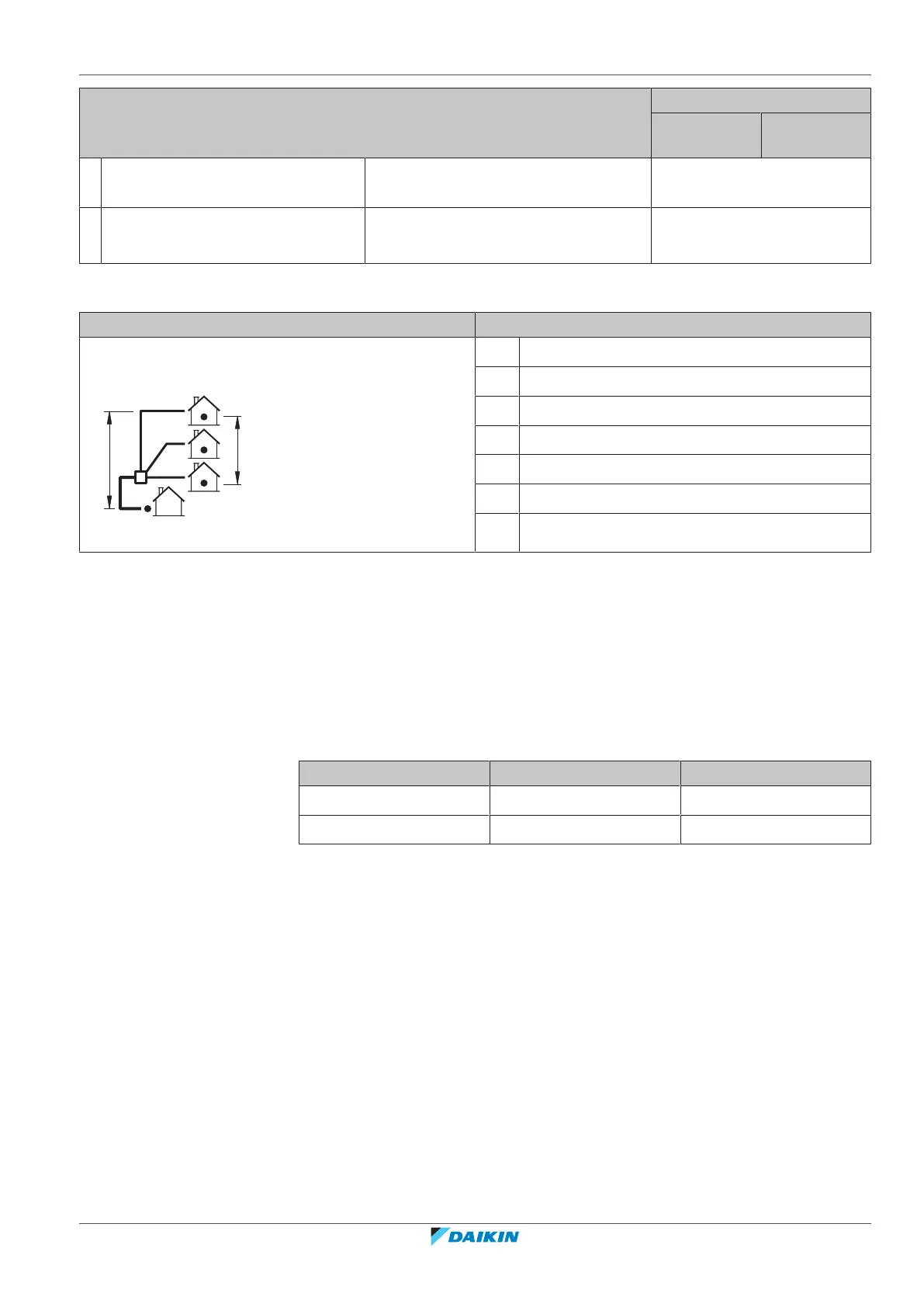

7 | Piping installation
Installer reference guide
37
RZASG100~140MUV/Y
Sky Air Advance-series
4P743506-1 – 2023.08
Requirement Limit
RZASG100 RZASG125 +
RZASG140
6 Maximum height between indoor
and outdoor
Pair, twin, triple and double twin:
H1≤Limit
30m
7 Maximum height between indoors Pair: N/A
Twin, triple and double twin: H2≤Limit
0.5m
(a) Parenthesised figure represents the equivalent length.
Example
If the system layout is as follows… Then the requirements are…
▪ RZASG125
▪ Triple:
L2
L3
L4
H1
H2
L1
▪ Østandard
1 5m≤L1+L4
2 L1+L2≤50m (70m)
3 L1+L2+L3+L4≤50m
4 L2≤20m
5 L2–L4≤10m
6 H1≤30m
7 H2≤0.5m
7.1.6 Refrigerant piping insulation
▪ Use polyethylene foam as insulation material:
- with a heat transfer rate between 0.041 and 0.052 W/mK (0.035 and
0.045kcal/mh°C)
- with a heat resistance of at least 70°C for liquid piping and at least 120°C for
gas piping
▪ Insulation thickness:
Ambient temperature Humidity Minimum thickness
≤30°C 75% to 80% RH 15mm
>30°C ≥80% RH 20mm
7.2 Connecting the refrigerant piping
7.2.1 About connecting the refrigerant piping
Before connecting the refrigerant piping
Make sure the outdoor and indoor unit are mounted.
Typical workflow
Connecting the refrigerant piping involves:
▪ Connecting the refrigerant piping to the outdoor unit
▪ Connecting the refrigerant piping to the indoor unit
▪ Installing oil traps
▪ Insulating the refrigerant piping
