12 Technical data
Installer reference guide
29
RZAG71~140L7V1B
Split system air conditioners
4P418663-1 – 2016.02

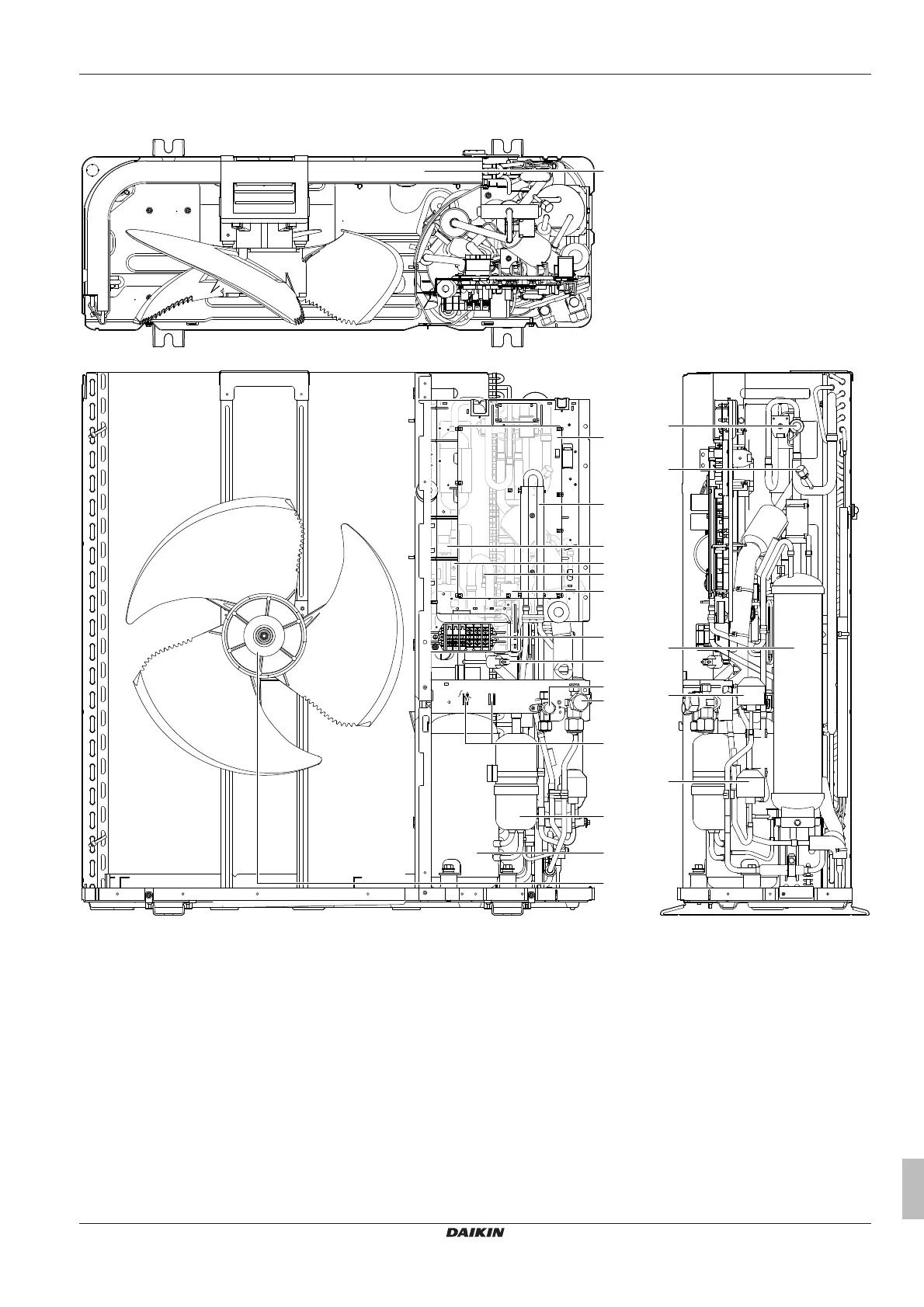

12.4 Components: Outdoor unit
RZAG71
Y3E
Y1E
e
b
Y1S
a
c
A1P
S1PH-A
d
S1PL
Y2S
X1M
S1PH-M
g
M1C
i
f
h
M1F
a Heat exchanger
b Internal service port
c Switch box cooling
d Check valve
e Liquid receiver
f Stop valve with service port (liquid)
g Stop valve with service port (gas)
h Cable tie mountings (to fix the field wiring with cable ties to
ensure stress relief)
i Compressor accumulator
A1P Printed circuit board (main)
M1C Motor (compressor)
M1F Motor (fan)
S1PH-A Automatic high pressure switch
S1PH-M Manual high pressure switch
S1PL Low pressure switch
X1M Terminal (communication and power supply)
Y1E Electronic expansion valve
Y3E Electronic expansion valve
Y1S Solenoid valve (4‑way valve)
Y2S Solenoid valve
