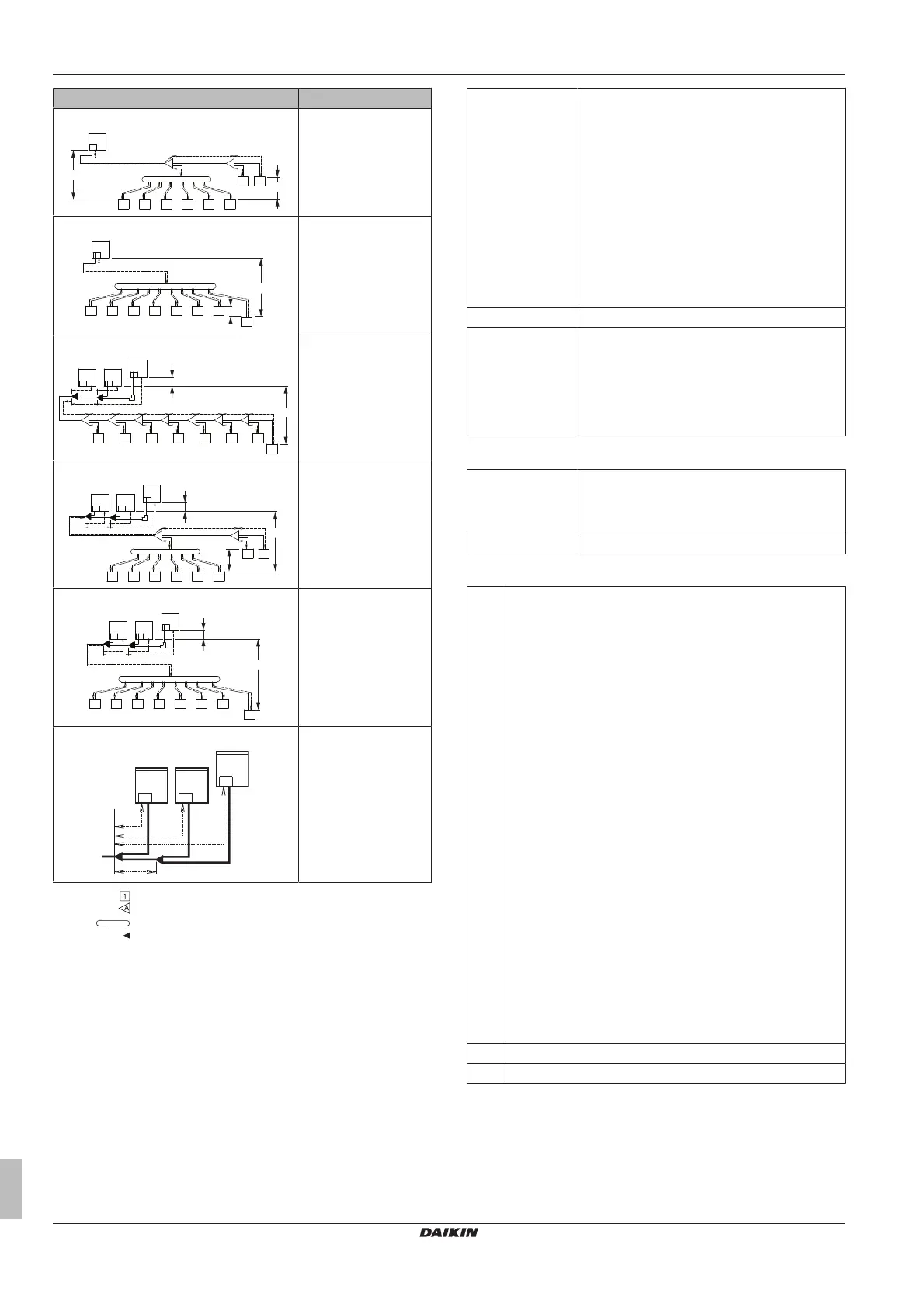

5 Preparation
Installer and user reference guide
14
RXYTQ8~16T7YF
VRV IV system air conditioner
4P388989-1A – 2015.07
Example Description
Example 1.2
a
b
c d e f
i
k
j
g h
A B
1 2 3 4 5 6
7 8
H1
H2
Single outdoor
Branch with refnet joint
and refnet header
Example 1.3
a
c
b d e f
i
g h
1 2 3 4 5 6 7
8
H1
H2
Single outdoor
Branch with refnet
header
Example 2.1
a
A
h i j k l m n
B C D E F G
p
b c d e f
1 2 3 4 5 6 7
8
g
t
u
r
s
H1
H3
Multi outdoor
Branch with refnet joint
Example 2.2
a
j k
b
1 2 3 4 5 6
7 8
c d e f g h
t
u
r
s
BA
H1
H3
H2
Multi outdoor
Branch with refnet joint
and refnet header
Example 2.3
a
b
1 2 3 4 5 6 7
8
c d e f g h i
t
u
r
s
H1
H3
Multi outdoor
Branch with refnet
header
Example 3
r s
u
t
With standard multi
layout
Indoor unit
Refnet joint
Refnet header
Outdoor multi connection piping kit
Maximum allowable length
Between outdoor and indoor units (single installation/multi
combinations)
Actual piping
length
165m/135m
Example 1.1
unit8: a+b+c+d+e+f+g+p≤165m
Example 1.2
unit6: a+b+h≤165m
unit8: a+i+k≤165m
Example 1.3
unit8: a+i≤165m
Example 2.1
unit8: a+b+c+d+e+f+g+p≤135m
Equivalent length 190m/160m
Total piping
length
1000m/500m
Example 1.1
a+b+c+d+e+f+g+h+i+j+k+l+m+n+p≤1000m
Example 2.1
a+b+c+d+e+f+g+h+i+j+k+l+m+n+p≤500m
Between outdoor branch and outdoor unit (only in case >16HP)
Actual piping
length
10m
Example 3
r, s, t≤10m; u≤5m
Equivalent length 13m
Maximum allowable height difference
H1 ≤50m (40m)
(if outdoor is located below indoor units)
Conditional extension up till 90m is possible without
additional option kit:
In case the outdoor location is higher than indoor:
extension is possible up till 90 m and following
2conditions must be fulfilled:
Liquid piping size up (see table "Size up" in "E: Piping
between refrigerant branch kit and indoor unit" on
page12).
Dedicated setting on outdoor unit is required (see [2‑49]
in "7.2.8Mode 2: Field settings"on page33).
In case the outdoor location is lower than indoor:
extension is possible up till 90 m and following
6conditions must be fulfilled:
40~60m: minimum connection ratio connected: 80%.
60~65m: minimum connection ratio connected: 90%.
65~80m: minimum connection ratio connected: 100%.
80~90m: minimum connection ratio connected: 110%.
Liquid piping size up (see table "Size up" in "E: Piping
between refrigerant branch kit and indoor unit" on
page12).
Dedicated setting on outdoor unit is required (see [2‑35]
in "7.2.8Mode 2: Field settings"on page33).
H2 ≤30m
H3 ≤5m
Maximum allowable length after branch
The pipe length from the first refrigerant branch kit to the indoor unit
≤40 m.
Example 1.1: unit 8: b+c+d+e+f+g+p≤40m
Example 1.2: unit 6: b+h≤40m, unit 8: i+k≤40m
Example 1.3: unit 8: i≤40m
