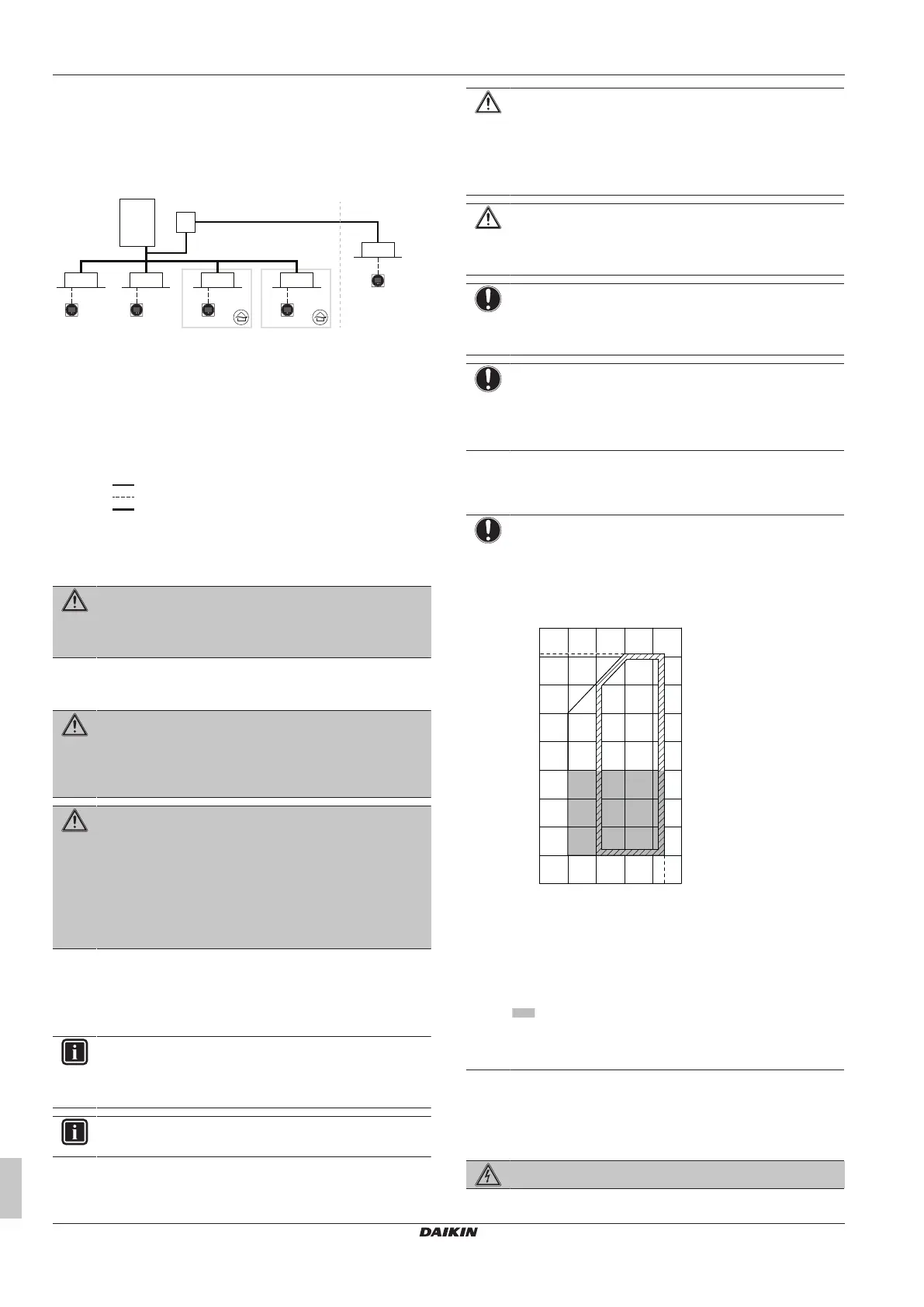

14 Unit installation
Installation and operation manual
26
RYMA5+RXYA8~20A7Y1B
VRV 5 heat pump
4P739915-1C – 2024.10
13.5 Combinations of safety measures
It is possible to combine indoor units with different safety measures
(no safety measures, alarm and/or natural ventilation, alarm and
shut-off valves) in the same system.
Example
a
i
c
f
b
e
d
f
g
e
h
f
a Heat pump outdoor unit
b Safety valve unit (SV)
c Indoor unit with no safety measure
d Indoor unit with alarm safety measure
e Remote controller in normal mode (R32 safety
deactivated)
f Remote controller in normal mode (R32 safety activated)
g Indoor unit with natural ventilation safety measure
h Indoor unit with alarm + natural ventilation safety
measure
i Indoor unit with alarm + shut-off valves safety measure
Refrigerant piping
Interconnection and user interface wiring
Direct connection of indoor units to the outdoor unit
14 Unit installation
WARNING
The installation MUST comply with the requirements that
apply to this R32 equipment. For more information, see
"13Special requirements for R32 units"[418].
14.1 Preparing the installation site
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
WARNING
The appliance shall be stored/installed as follows:
▪ in such a way as to prevent mechanical damage.
▪ in a well-ventilated room without continuously operating
ignition sources (example: open flames, an operating
gas appliance or an operating electric heater).
▪ in a room with dimensions as specified in "13 Special
requirements for R32 units"[418].
14.1.1 Installation site requirements of the
outdoor unit
Mind the spacing guidelines. See the "Technical data" chapter.
INFORMATION
Equipment meets the requirement for commercial and
light-industrial location when professionally installed and
maintained.
INFORMATION
The sound pressure level is less than 70dBA.
CAUTION
Appliance NOT accessible to the general public, install it in
a secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial and light industrial
environment.
CAUTION
This equipment is NOT intended for use in residential
locations and will NOT guarantee to provide adequate
protection to radio reception in such locations.
NOTICE
If the equipment is installed closer than 30 m to a
residential location, the professional installer MUST
evaluate the EMC situation before installation.
NOTICE
The installation and any maintenance requires a
professional with relevant EMC experience to install any
specific EMC mitigation measures defined in the user
instructions.
14.1.2 Additional installation site requirements
of the outdoor unit in cold climates
NOTICE
When operating the unit in a low outdoor ambient
temperature with high humidity conditions, make sure to
take precautions to keep the drain holes of the unit free by
using proper equipment.
In heating:
T
AO
(°C WB)
a b
20
15.5
15
10
5
0
–5
–10
–15
–20
10 15 20 25
27
30
T
AI
(°C DB)
a Warming up operation range
b Operation range
T
AI
Ambient indoor temperature
T
AO
Ambient outdoor temperature
If the unit has to operate for 5 days in this area with
high humidity (>90%), Daikin recommends to install the
optional heater tape kit (EKBPH012TA or EKBPH020TA)
to keep the drain holes free.
14.2 Opening the unit
14.2.1 To open the outdoor unit
DANGER: RISK OF ELECTROCUTION
