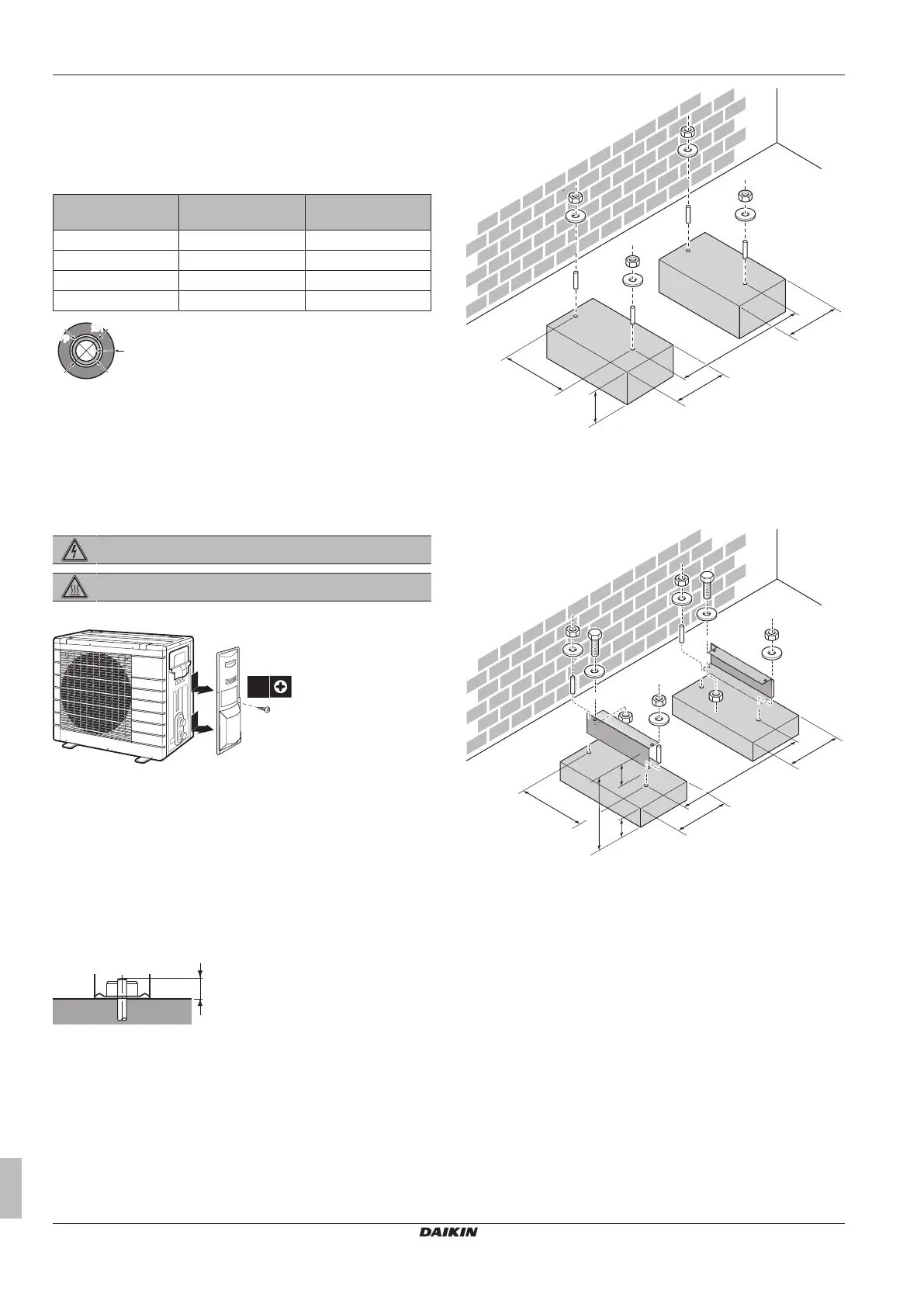

5 Installation
Installation manual
10
RXS50+60 + RX50+60 + ARXS50~71
R410A split series
3P360062-1H – 2016.09
▪ Use polyethylene foam as insulation material:
▪ with a heat transfer rate between 0.041 and 0.052W/mK (0.035
and 0.045kcal/mh°C)
▪ with a heat resistance of at least 120°C
▪ Insulation thickness
Pipe outer diameter
(Ø
p
)
Insulation inner
diameter (Ø
i
)
Insulation thickness
(t)
6.4mm (1/4") 8~10mm ≥10mm
9.5mm (3/8") 10~14mm ≥13mm
12.7mm (1/2") 14~16mm ≥10mm
15.9mm (5/8") 16~20mm ≥13mm
Ø
i
Ø
i
t
Ø
p
Ø
p
5 Installation
5.1 Opening the units
5.1.1 To open the outdoor unit
DANGER: RISK OF ELECTROCUTION
DANGER: RISK OF BURNING
1×
1
2
2
5.2 Mounting the outdoor unit
5.2.1 To provide the installation structure
1 Check the strength and level of the installation ground so that
the unit will not cause any operating vibration or noise after
installation.
2 Prepare 4 sets of M8 or M10 anchor bolts, nuts and washers
each (field supply).
3 Fix the unit securely with anchor bolts.
20 mm
330
580
240
(mm)
240
>300
In any case, provide at least 300mm of free space below the unit.
Additionally, make sure the unit is positioned at least 100mm above
the maximum expected level of snow. In this case, it is
recommended to construct a pedestal.
330
580
240
240
(mm)
>300
100
a
a Maximum snowfall height
If the unit is installed on brackets to the wall, install the unit as
follows:
