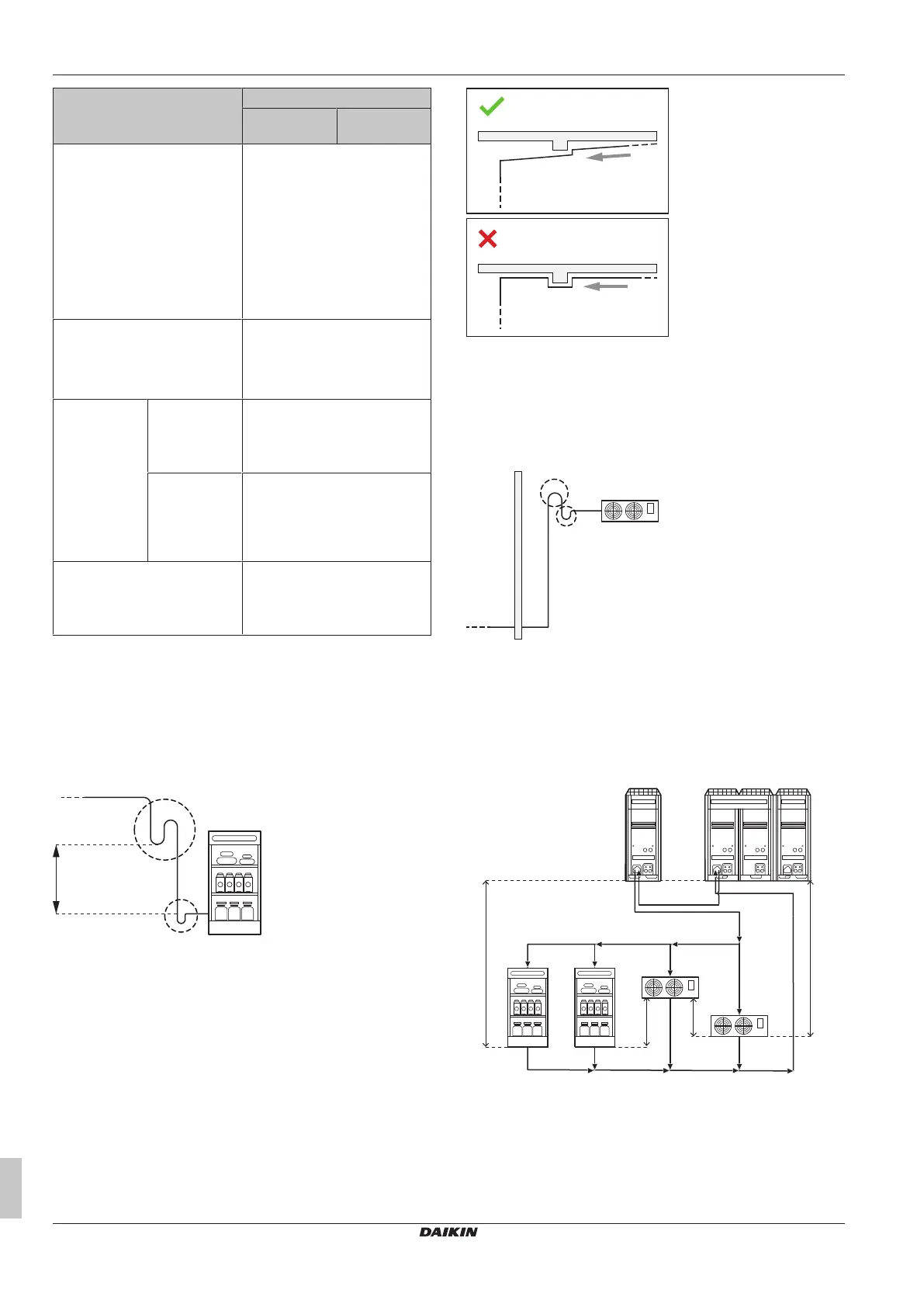

13 Piping installation
Installation and operation manual
22
LREN8~12A + LRNUN5A
CO₂ ZEAS outdoor unit and capacity up unit
4P704141-1F – 2024.12
Requirement Limit
LREN* LREN* +
LRNUN5*
Maximum branch piping length
▪ Example refrigeration side:
▪ C+D+(E or F)
(a)
▪ c+d+(e or f)
(a)
▪ C+G
▪ c+g
▪ J
▪ j
50m
Maximum total equivalent
piping length
Example:
A+B+C+D+E+F+G+J≤Limit
Low temperature: 150m
Medium temperature: 180m
Maximum
height
difference
between
outdoor unit
and indoor
unit
(b)
Outdoor higher
than indoor
Example:
H3≤Limit
35m
(c)
Outdoor unit
lower than
indoor unit
Example:
H3≤Limit
10m
Maximum height difference
between blower coil and
showcase
▪ Example: H2≤Limit
5m
(a)
Whichever is longer
(b)
For low load restrictions, see 'Constraints for refrigeration' in the
Installer and user reference guide.
(c)
You may have to install an oil trap. See "To install an oil
trap"[422].
To install an oil trap
If the outdoor unit is installed higher than the refrigeration indoor
unit, install an oil trap in the gas piping every 5meter. Oil traps will
make the oil return more easily.
a
c
b
c
a Showcase
b Height difference=5m
c Trap
The refrigerant suction piping must always run down:
a
b
a
b
a Refrigeration indoor unit
b Flow direction in refrigerant suction piping
To install riser piping
If the outdoor unit is installed lower than the refrigeration indoor unit,
install riser piping close to the indoor unit. When the compressor of
the outdoor unit starts, correctly installed riser piping will prevent
liquid from flowing back to the outdoor unit.
a
b
c
a Refrigeration indoor unit
b Riser piping close to the indoor unit (gas pipe)
c Oil trap
13.1.4 To select the piping size
Determine the proper size using the following tables and reference
figure (only for indication).
2
A
B
CD
G
J
j
f
F
E
H3
H2
H1
e d
g
c a
b
1
3
4
4
3
H3
1 Capacity up unit (LRNUN5*)
2 Outdoor unit (LREN* )
3 Indoor unit (showcase)
4 Indoor unit (blower coil)
A~J Liquid piping
a~g Gas piping
H1~H3 Height difference
