11 About the units and options
Installation and operation manual
16
LREN8~12A + LRNUN5A
CO₂ ZEAS outdoor unit and capacity up unit
4P704141-1F – 2024.12
Text on card Translation
Any gas or oil remaining inside
the stop valve may blow off the
spun piping.
Any gas or oil remaining inside
the stop valve may blow off the
spun piping
Failure to observe the instruction
in procedure above properly may
result in property damage or
personal injury, which may be
serious depending on the
circumstances.
Failure to observe the instruction
in procedure above properly may
result in property damage or
personal injury, which may be
serious depending on the
circumstances
Steps Steps
Open stop valves CsV3 and
CsV4.
Open stop valves CsV3 and
CsV4.
Fully open service ports SP3,
SP7 and SP11 to release the
refrigerant.
Fully open service ports SP3,
SP7 and SP11 to release the
refrigerant
All refrigerant must be evacuated
before continuing.
All refrigerant must be evacuated
before continuing
See Note. See Note.
Cut off the lower part of the gas
and liquid stop valve pipes along
the black line.
Cut off the lower part of the gas
and liquid stop valve pipes along
the black line.
Always use appropriate tools,
such as a pipe cutter or pair of
nippers.
Always use appropriate tools,
such as a pipe cutter or pair of
nippers
Warning Warning
NEVER remove the spun piping
by brazing.
NEVER remove the spun piping
by brazing.
Any gas or oil remaining inside
the stop valve may blow off the
spun piping.
Any gas or oil remaining inside
the stop valve may blow off the
spun piping.
Wait until the oil has dripped out
of the piping.
Wait until the oil has dripped out
of the piping.
All oil must be evacuated before
continuing.
All oil must be evacuated before
continuing.
Close stop valves CsV3 and
CsV4 and service ports SP3,
SP7 and SP11.
Close stop valves CsV3 and
CsV4 and service ports SP3,
SP7 and SP11.
Connect the field piping to the cut
pipes.
Connect the field piping to the cut
pipes.
Note: Note:
In case the outdoor unit is
installed indoors: install a
pressure hose to service ports
SP3, SP7 and SP11.
In case the outdoor unit is
installed indoors: install a
pressure hose to service ports
SP3, SP7 and SP11.
Check that the hoses are
properly fixed.
Check that the hoses are
properly fixed.
For more information, see "13.3.1 To cut off the spun pipe
ends"[425].
Card about the safety valve pipe installation
WARNING
The safety valve included in the
accessory bag must be installed
on this pipe.
EN
Text on the card Translation
Warning Warning
The safety valve included in the
accessory bag must be installed
on this pipe.
The safety valve included in the
accessory bag must be installed
on this pipe.
For more information, see "13.4.1To install safety valves"[428].

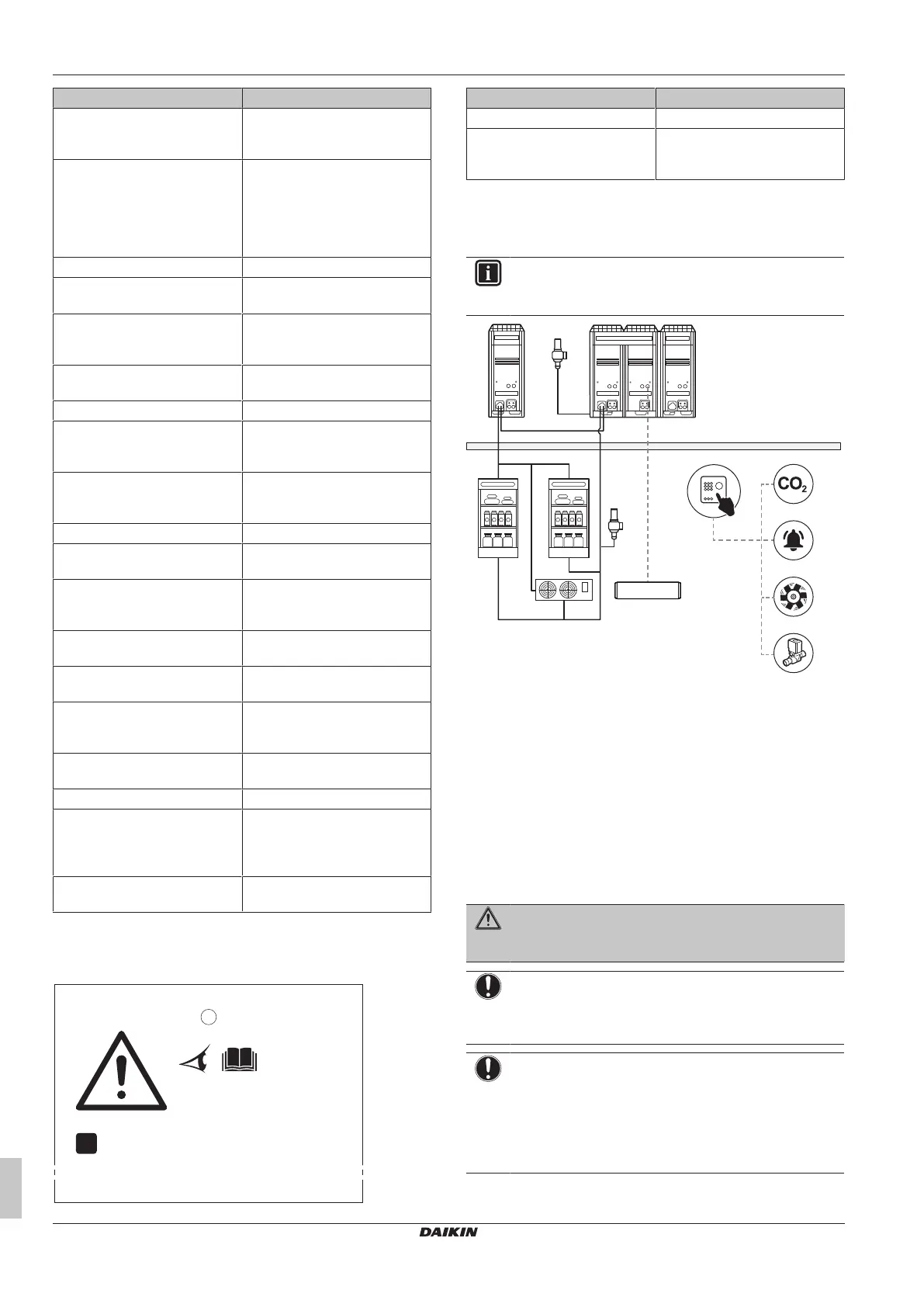

11.2 System layout
INFORMATION
The following figure is an example and may NOT
completely match your system layout.
ab
d d
e
g
h
i
j
k
l
f
c
a Main outdoor unit (LREN*)
b Capacity up unit (LRNUN5*): only in combination with
LREN12*
c Safety valve (accessory bag)
d Indoor unit for refrigeration (showcase) (field supply)
e Indoor unit for refrigeration (blower coil) (field supply)
f Safety valve (field supply)
g Communication box (BRR9B1V1)
h CO
2
control panel (field supply)
i CO
2
detector (field supply)
j CO
2
alarm (field supply)
k CO
2
ventilator (field supply)
l Shut off valve (field supply)
11.3 Indoor unit constraints
WARNING
ONLY the refrigeration parts that are also designed to work
with R744 (CO
2
) shall be connected to the system.
NOTICE
The design pressure of high pressure side of the
connected refrigeration parts MUST be 9 MPaG (90 bar
gauge).
NOTICE
If the design pressure of the gas piping of refrigeration
parts is different from 90bar gauge (for example: 6 MPaG
(60bar gauge)), a safety valve MUST be installed on the
field piping according to this design pressure. It is NOT
possible to connect refrigeration parts with design pressure
below 60bar gauge.
