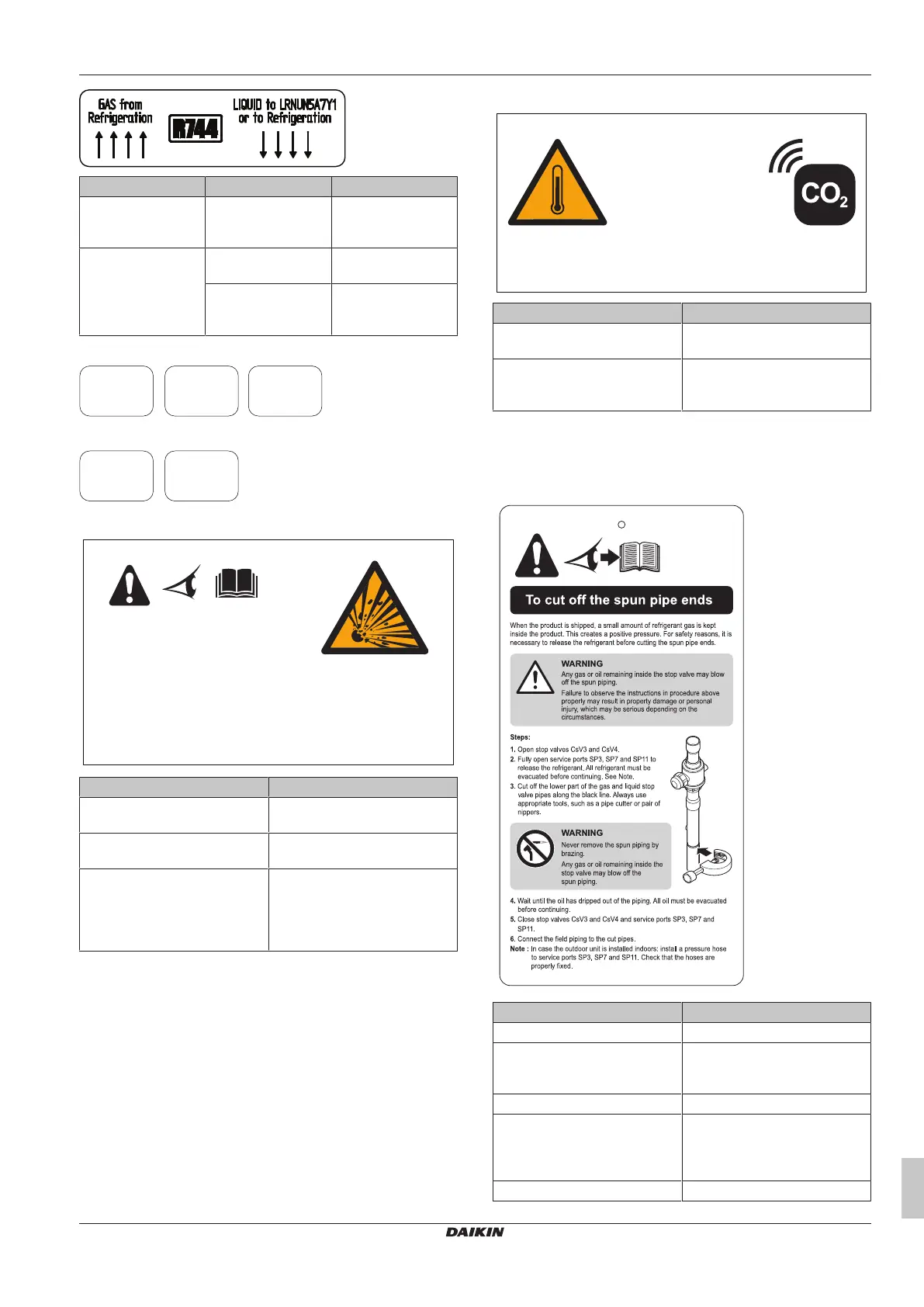

11 About the units and options
Installation and operation manual
15
LREN8~12A + LRNUN5A
CO₂ ZEAS outdoor unit and capacity up unit
4P704141-1F – 2024.12
Label used for Text on label Translation
The first two labels:
Capacity up unit
from LRYEN10A7Y1
or LREN12A7Y1B to
Refrigeration
From LRYEN10A7Y1
or LREN12A7Y1B to
Refrigeration
The third label:
Outdoor unit (left unit)
Gas from
Refrigeration
Gas from
Refrigeration
Liquid to
LRNUN5A7Y1 or to
Refrigeration
Liquid to
LRNUN5A7Y1 or to
Refrigeration
Label about service ports – left unit
SP3 SP7 SP10
Label about service ports – right unit
SP8 SP11
Label about safety valve
WARNING
Unit is charged and under high pressure.
Set pressure of safety valve is 90 bar g.
If refrigerant temperature is higher than 31°C
there is a possibility that the safety valve will
open during service or power shutdown.
Text on warning label Translation
Unit is charged and under high
pressure.
Unit is charged and under high
pressure.
Set pressure of safety valve is 90
bar g.
Set pressure of safety valve is
90barg.
If refrigerant temperature is
higher than 31°C there is a
possibility that the safety valve
will open during service or power
shutdown.
If refrigerant temperature is
higher than 31°C there is a
possibility that the safety valve
will open during service or power
shutdown.
Check the set pressure of the safety valve at the low pressure side
of the refrigeration cabinet to verify a safe service temperature.
See also "13.4About safety valves"[428].
Label about maximum storage temperature
MAXIMUM STORAGE TEMPERATURE.
55°C
A CO2 detector is always recommended during storage and transport.
Text on warning label Translation
MAXIMUM STORAGE
TEMPERATURE: 55°C
MAXIMUM STORAGE
TEMPERATURE: 55°C
A CO
2
detector is always
recommended during storage
and transport.
A CO
2
detector is always
recommended during storage
and transport.
The unit has some rest refrigerant inside when it leaves the factory.
To avoid the safety relief valve being opened, the unit must not be
exposed to temperatures above 55°C.
Card on how to cut the spun pipe ends of the stop valve pipes
Text on card Translation
To cut off the spun pipe ends To cut off the spun pipe ends
When the product is shipped, a
small amount of refrigerant gas is
kept inside the product.
When the product is shipped, a
small amount of refrigerant gas is
kept inside the product.
This creates a positive pressure. This creates a positive pressure.
For safety reasons, it is
necessary to release the
refrigerant before cutting the
spun pipe ends.
For safety reasons, it is
necessary to release the
refrigerant before cutting the
spun pipe ends.
Warning Warning
