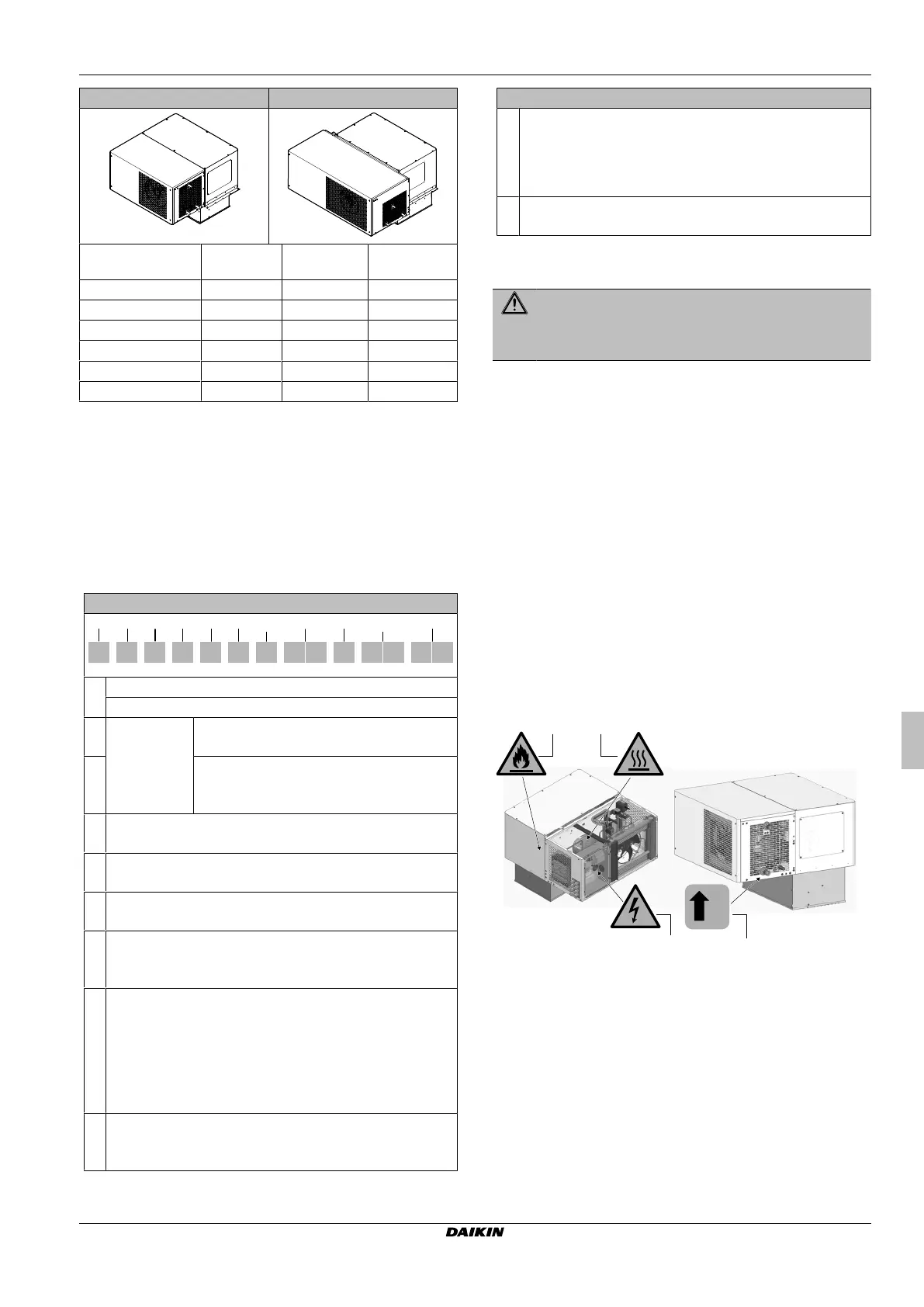

3 About the unit and options
Operation manual
7
LMCEY1A/W + LMCEY2A/W
Daikin LMC
4P753996-1 – 2024.06
LMCEY1W12AVM01
LMCEY2W19+25AYE01
Model
Capacity Number of
cooling circuits
Cooling mode
LMCEY1A13AVM01
1.26kW
(a)
1 Air cooled
LMCEY2A19AYE01
1.98kW
(a)
2 Air cooled
LMCEY2A25AYE01
2.57kW
(a)
2 Air cooled
LMCEY1W12AVM01
1.23kW
(b)
1 Water cooled
(c)
LMCEY2W19AYE01
1.96kW
(b)
2 Water cooled
(d)
LMCEY2W25AYE01
2.60kW
(b)
2 Water cooled
(e)
(a)
Cooling capacity at a rated empty condition according to
EN17432 (indoor temperature of 0°C, outdoor temperature of
32°C).
(b)
Cooling capacity at a rated empty condition according to
EN17432 (indoor temperature of 0°C, inlet water temperature of
30°C, outlet water temperature of 35°C).
(c)
Rated water volumetric flow: 5.7 l/min.
(d)
Rated water volumetric flow: 8.3 l/min.
(e)
Rated water volumetric flow: 11.6 l/min.
In this document, LMCEY1A13AVM01 for air cooled models and/or
LMCEY1W12AVM01 for water cooled models are shown in the
instructions. Unless there is a need to treat the models separately.
Product nomenclature
ML ES Y 1 A
0 9
A V M
0 1
a
b c d e f g
h
i j k
a Product category
▪ L = Refrigeration
b
Series Unit type
▪ M = Monoblock with inverter technology
c
Installation type
▪ S = Wall
▪ C = Ceiling
d
Cold room working range
▪ E = Multi-temperature (MT & LT)
e
Refrigerant
▪ Y = R290
f
Number of refrigerating circuits
▪ 1 or 2
g
Condensation type
▪ A = Air
▪ W = Water
h
Capacity index
▪ Maximum cooling capacity of the unit in MT at nominal
conditions according to EN17432 standard:
▪ Air cooled version:
Ta=32°C / Tc=0°C | kW × 10
▪ Water cooled version:
Tw
IN
=30°C / Tc=0°C | kW × 10
i
Major design change / Product differentiation
▪ A = CE certified (Europe)
▪ ...
Product nomenclature
j
Power supply
▪ VM = 220240 V, 1P+N 50 Hz &
220230 V, 1P+N 60 Hz
▪ YE = 380415 V, 3P+N 50 Hz &
400440 V, 3P+N 60 Hz
k
Option code (minor BOM changes / batch definition)
▪ 01 = Basic version
3.3
Safety systems
WARNING
Removal of protections during machine operation is
absolutely forbidden. They have been developed to
safeguard the operator’s safety.
In this document, LMCEY1A13AVM01 for air cooled models and/or
LMCEY1W12AVM01 for water cooled models are shown in the
instructions. Unless there is a need to treat the models separately.
Mechanical safety devices:
▪ Fixed enclosure protection for evaporator and condensing unit,
secured by locking screws.
Electrical safety devices:
▪ High pressure switch to protect against excessive pressure with
automatic reset.
▪ Alarm:
A buzzer or alarm lamp (if option is installed) goes on when an
alarm occurs (see "4User interface"[49]).
▪ Fuses, located in the electrical box.
▪ A magneto thermal circuit breaker for overcurrent protection and a
residual current device for earth fault/residual current protection
(MUST be installed on field).
3.4
Safety symbols location
LMCEY1A/W
IN
ba
cd
