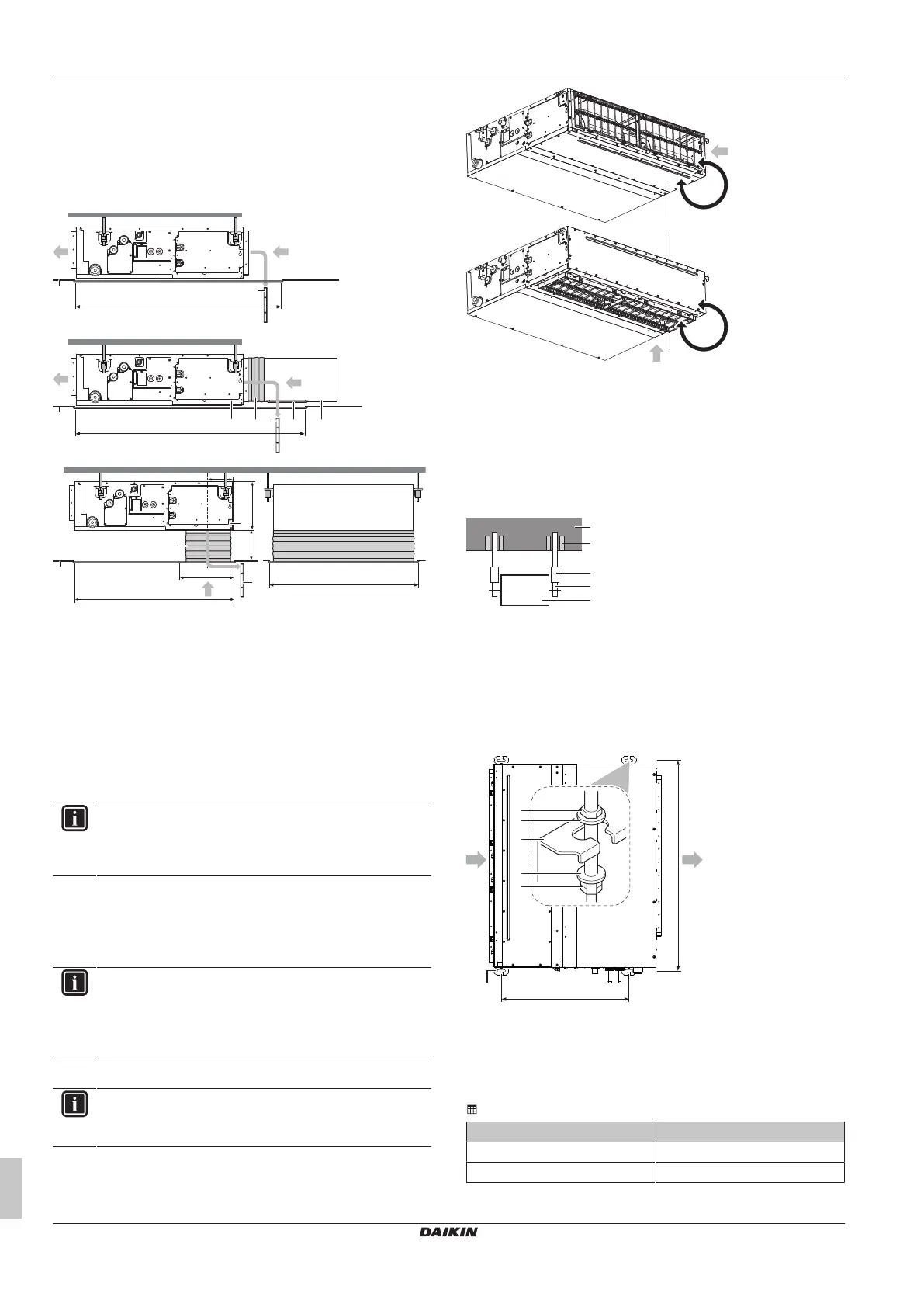

12 Unit installation
Installation and operation manual
12
FXSN-B
CO₂ VRV system air conditioner
3P672850-3C – 2024.11
A Side view: refrigerant piping, drain piping, control box
B Side view: air inlet
C Top view
a Ceiling opening
For classes 40, 50: 1000 mm
For classes 63, 80: 1400 mm
b Service space
Installation options
A
ca
b
≥1100
(mm)
B
a
b
≥1100
(mm)
c
d
e
g
f
h
125
c
b 800
160
(160~300)
h
g
a
C
245
f
(mm)
A Standard rear suction
B Installation with rear canvas duct and duct service
opening
C Installation with bottom canvas duct and air inlet grill
a Ceiling surface
b Ceiling opening
c Air filter removal route for air filter maintenance
d Air inlet filter
e Duct service opening
f Interchangeable plate
g Canvas connection for air inlet panel (field supply)
h Minimum opening for protective guard (field supply)
For classes 40, 50: 954×210mm
For classes 63, 80: 1354×210mm
INFORMATION
Some options may require additional service space. Sees
the installation manual of the used option before
installation.
12.2 Mounting the indoor unit
12.2.1 Guidelines when installing the indoor unit
INFORMATION
Optional equipment. When installing optional equipment,
also read the installation manual of the optional equipment.
Depending on the field conditions, it might be easier to
install the optional equipment first.
Installation options
INFORMATION
The unit can be used with bottom suction by replacing the
interchangeable plate by the air filter holding plate.
b
a
a
a Air filter holding plate with air filter(s)
b Interchangeable plate
▪ Ceiling strength. Check whether the ceiling is strong enough to
support the weight of the unit. If there is a risk, reinforce the ceiling
before installing the unit.
▪ For existing ceilings, use anchors.
▪ For new ceilings, use sunken inserts, sunken anchors or other
field supplied parts.
b
a
c
e
d
a Anchor
b Ceiling slab
c Long nut or turn-buckle
d Suspension bolt
e Indoor unit
▪ Suspension bolts. Use M10 suspension bolts for installation.
Attach the hanger bracket to the suspension bolt. Fix it securely
using a nut and washer from the upper and lower sides of the
hanger bracket.
e: 630
e: A
(mm)
a
b
b
d
c
4×
f
a Nut (field supply)
b Washer (accessories)
c Hanger bracket
d Double nut (field supply)
e Suspension bolt spacing
f Suspension bolt
12‒1 Suspension bolt spacing (A)
Class A(mm)
40, 50 1038
63, 80 1438
