18 | Electrical installation
Installer and user reference guide
67
FXNA-A
VRV system air conditioner
4P785124-1 – 2024.09

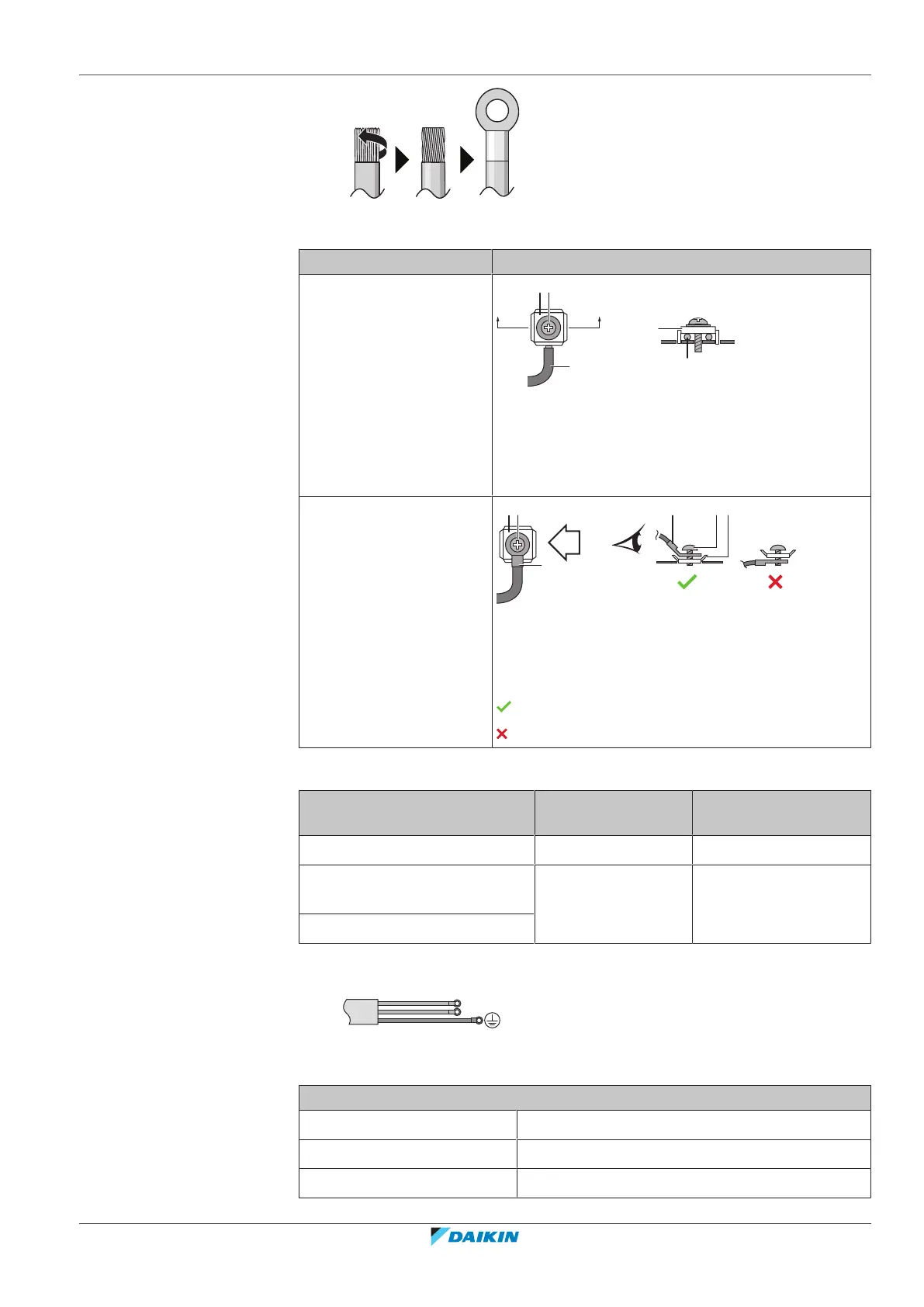

Use the following methods for installing wires:
Wire type Installation method
Single-core wire
Or
Stranded conductor wire
twisted to "solid-like"
connection
c b
c
aa
A
AA´
A´
a Curled wire (single-core or twisted stranded
conductor wire)
b Screw
c Flat washer
Stranded conductor wire
with round crimp-style
terminal
c b ba c
a
B
B
a Terminal
b Screw
c Flat washer
Allowed
NOT allowed
Tightening torques
Wiring Screw size Tightening torque
(N•m)
Power supply cable M4 1.08~1.32
Interconnection cable
(indoor↔outdoor)
M3.5 0.79~0.97
User interface cable
▪ The earth wire between the wire retainer and the terminal must be longer than
the other wires.
18.1.3 Specifications of standard wiring components
Power supply of the product
Voltage 220~240V/220V
Frequency 50/60Hz
Phase 1~
