Installation and operation manual
2

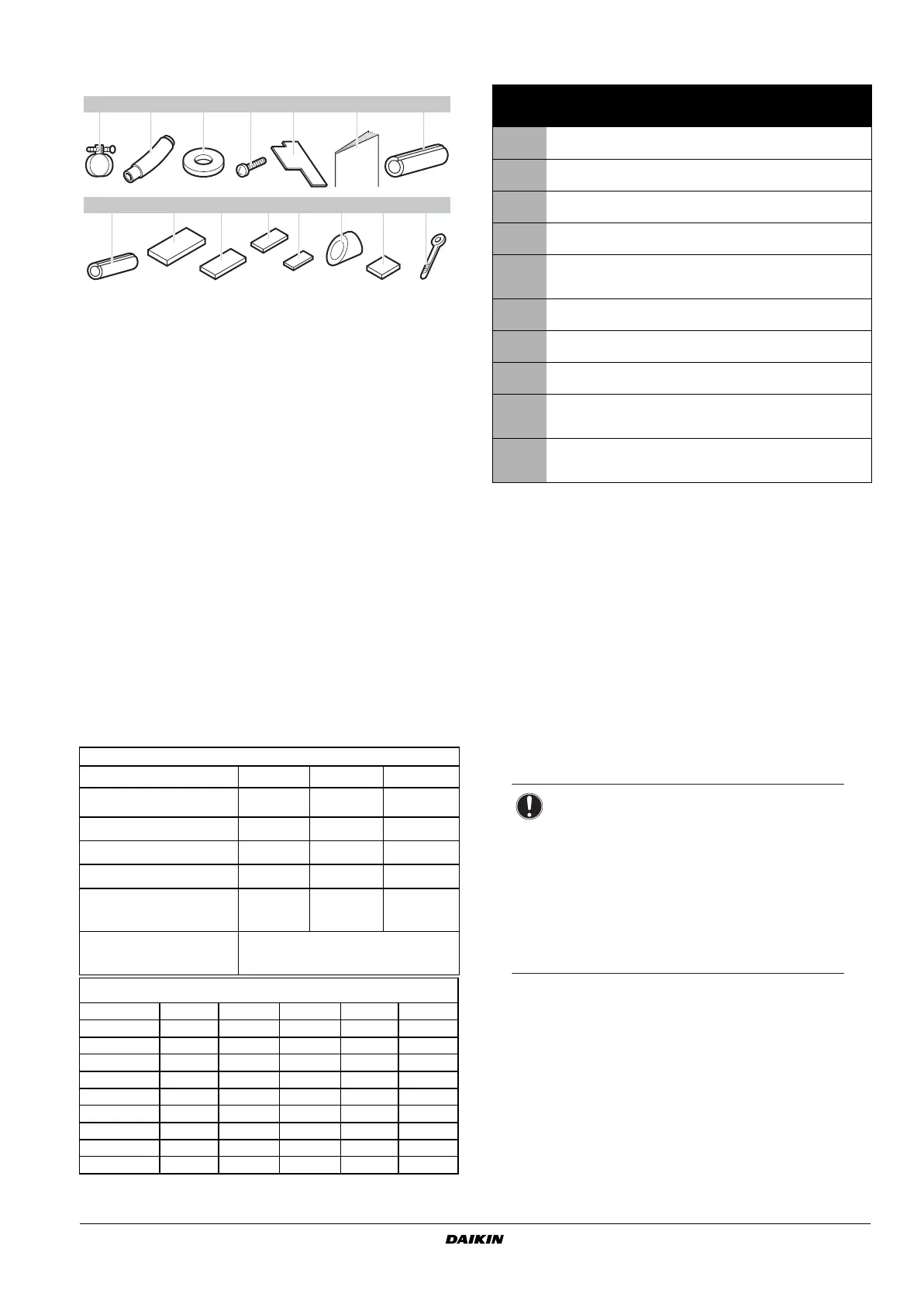

Accessories
Check if the following accessories are included with your unit.
Optional accessories
There are two types of remote controllers: wired and
wireless. Select a remote controller according to customers
request and install in an appropriate place.
Refer to catalogues and technical literature for selecting a
suitable remote controller.
This indoor unit requires installation of an optional decoration
panel.
For the following items, take special care during
construction and check after installation is finished
Selecting installation site
When the conditions in the ceiling are exceeding 30°C and a
relative humidity of 80%, or when fresh air is inducted into the
ceiling, an additional insulation is required (minimum 10 mm
thickness, polyethylene foam).
For this unit you can select different air flow directions. It is
necessary to purchase an optional blocking pad kit to discharge
the air in 3 or 4 (closed corners) directions.
Install the unit so that air vents, lights, or machines near the unit
do not interfere with the air flow.
1 Metal clamp
2 Drain hose
3 Washer for hanger bracket
4 Screw
5 Installation guide
6 Installation and operation manual
7 Insulation for fitting for gas pipe
8 Insulation for fitting for liquid pipe
9 Large sealing pad
10 Medium 1 sealing pad
11 Medium 2 sealing pad
12 Small sealing pad
13 Drain sealing pad
14 Paper pattern for installation (upper part of packing)
15 Clamp
Information requirements for fan coil units
Item
Symbol Value Unit
Cooling capacity
(sensible)
P
rated, c
AkW
Cooling capacity (latent)
P
rated, c
BkW
Heating capacity
P
rated, h
CkW
Total electric power input
P
elec
DkW
Sound power level
(per speed setting
if applicable)
L
WA
EdB
Contact details
DAIKIN INDUSTRIES CZECH REPUBLIC s.r.o.
U Nové Hospody 1/1155, 301 00 Plzeň
Skvrňany, Czech Republic
THE ABOVE TABLE RELATES TO THE MODELS
AND VALUES STATED IN THIS TABLE
Models
ABCDE
FXFQ20AVEB
1.8 0.4 2.5 0.038 49
FXFQ25AVEB
2.1 0.7 3.2 0.038 49
FXFQ32AVEB
2.8 0.8 4 0.038 49
FXFQ40AVEB
3.4 1.1 5 0.038 51
FXFQ50AVEB
4.1 1.5 6.3 0.053 51
FXFQ63AVEB
5.2 1.9 8 0.061 53
FXFQ80AVEB
6.5 2.5 10 0.092 55
FXFQ100AVEB
7.8 3.4 12.5 0.115 60
FXFQ125AVEB
9.8 4.2 16 0.186 61
1x 1x 8x 4x 1x 1x 1x
1x 1x 1x1x1x 1x
1x
7x
123 5467
8 9 11 1210 13
14 15
Tick
when
checked
Is the indoor unit fixed firmly?
The unit may drop, vibrate or make noise.
Is the gas leak test finished?
It may result in insufficient cooling or heating.
Is the unit fully insulated?
Condensate water may drip.
Does drainage flow smoothly?
Condensate water may drip.
Does the power supply voltage correspond to that shown on the
name plate?
The unit may malfunction or components may burn out.
Are wiring and piping correct?
The unit may malfunction or components may burn out.
Is the unit safely grounded?
Dangerous at electric leakage.
Is the wiring size according to specifications?
The unit may malfunction or components may burn out.
Is nothing blocking the air outlet or inlet of either the indoor or
outdoor units?
It may result in insufficient cooling or heating.
Are refrigerant piping length and additional refrigerant charge
noted down?
The refrigerant charge in the system might not be clear.
(1)
GWP = global warming potential
Periodical inspections for refrigerant leaks may be
required depending on European or local legislation.
Please contact your local dealer for more information.
Important information regarding
the refrigerant used
This product contains fluorinated greenhouse gases.
Do not vent gases into the atmosphere.
Refrigerant type:
GWP
(1)
value:
2087.5
R410A
NOTICE regarding tCO
2
eq
In Europe, the greenhouse gas emissions of
the total refrigerant charge in the system
(expressed as tonnes CO
2 -equivalent) is used
to determine the maintenance intervals. Follow
the applicable legislation.
Formula to calculate the greenhouse gas
emissions:
GWP value of the refrigerant × Total refrigerant
charge [in kg] / 1000
EN3P320142-1F.book Page 2 Tuesday, October 3, 2017 2:46 PM
