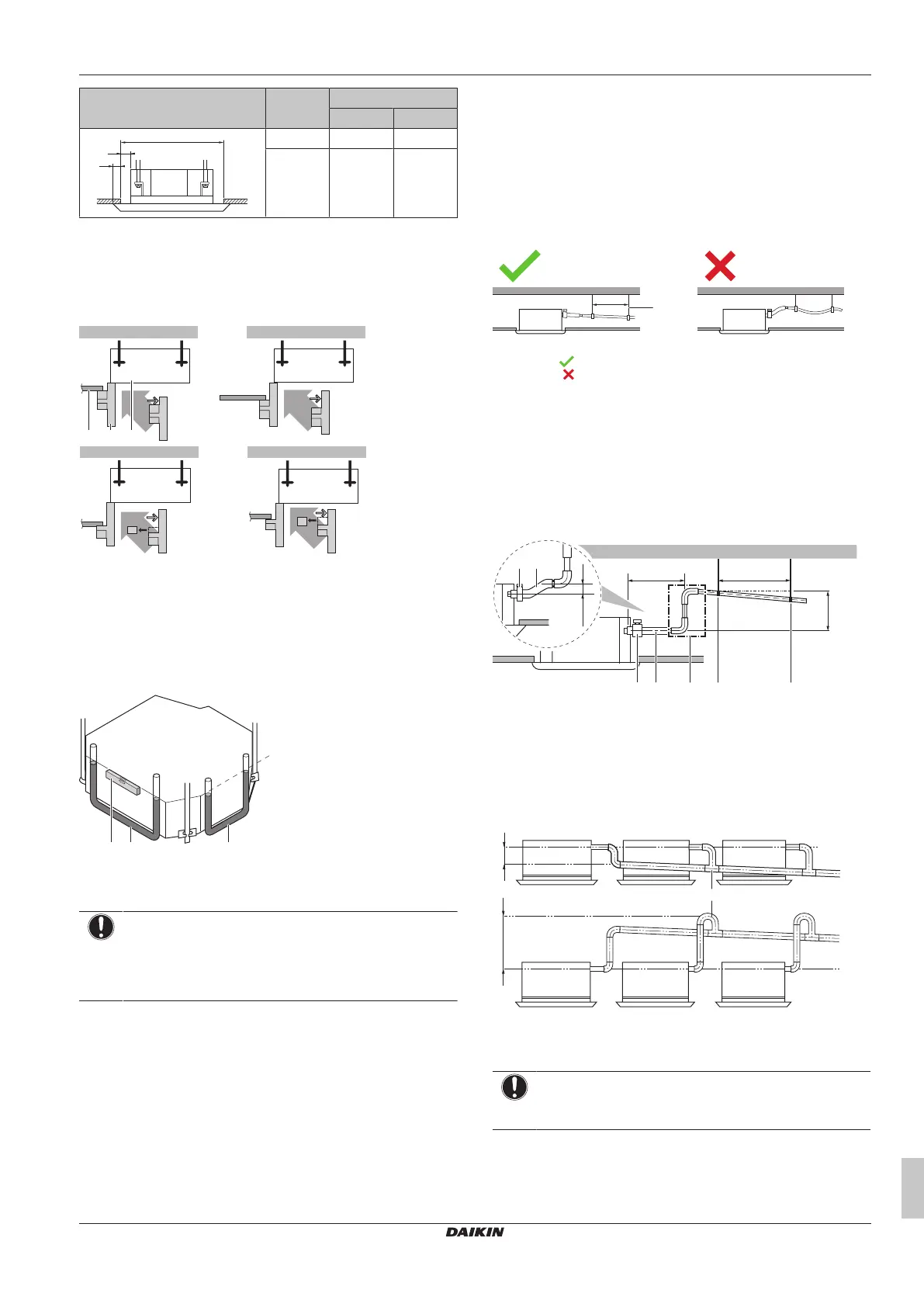

12 Unit installation

Installation and operation manual

FXFA20~125A2VEB

VRV system air conditioner

3P599604-1E – 2022.02

Example If A

(a)

Then

(a)

860mm 10mm 45mm

910mm 35mm 20mm

(a)

A: Ceiling opening

B: Distance between the unit and the ceiling opening

C: Overlap between the decoration panel and the suspended

ceiling

▪ Installation guide. Use the installation guide to determine the

correct vertical position.

A B

b c

A In case of installation with standard decoration panel

B In case of installation with fresh air intake kit

C In case of installation with auto cleaning decoration panel

D In case of installation with design decoration panel

a Suspended ceiling

b Installation guide (accessory)

c Unit

▪ Level. Make sure the unit is level at all 4 corners using a level or a

water-filled vinyl tube.

bba

a Level

b Vinyl tube

c Water level

NOTICE

Do NOT install the unit tilted. Possible consequence: If

the unit is tilted against the direction of the condensate flow

(the drain piping side is raised), the float switch might

malfunction and cause water to drip.

12.2.2 Guidelines when installing the drain

piping

Make sure condensation water can be evacuated properly. This

involves:

▪ General guidelines

▪ Connecting the drain piping to the indoor unit

▪ Checking for water leaks

General guidelines

▪ Pipe length. Keep drain piping as short as possible.

▪ Pipe size. Keep the pipe size equal to or greater than that of the

connecting pipe (vinyl pipe of 25 mm nominal diameter and

32mm outer diameter).

▪ Slope. Make sure the drain piping slopes down (at least 1/100) to

prevent air from being trapped in the piping. Use hanging bars as

shown.

1~1.5 m

a Hanging bar

Allowed

Not allowed

▪ Condensation. Take measures against condensation. Insulate

the complete drain piping in the building.

▪ Rising piping. If necessary to make the slope possible, you can

install rising piping.

▪ Drain hose inclination: 0~75 mm to avoid stress on the piping

and to avoid air bubbles.

▪ Rising piping: ≤300mm from the unit, ≤675 mm perpendicular

to the unit.

≤675

≤300

0~75

1000~1500

(mm)

b c

a Metal clamp (accessory)

b Drain hose (accessory)

c Rising drain piping (vinyl pipe of 25mm nominal diameter

and 32mm outer diameter) (field supply)

d Hanging bars (field supply)

▪ Combining drain pipes. You can combine drain pipes. Make

sure to use drain pipes and T-joints with a correct gauge for the

operating capacity of the units.

≥100

≤675

(mm)

a T-joint

To connect the drain piping to the indoor unit

NOTICE

Incorrect connection of the drain hose might cause leaks,

and damage the installation space and surroundings.

1 Push the drain hose as far as possible over the drain pipe

connection.

2 Tighten the metal clamp until the screw head is less than 4mm

from the metal clamp part.
