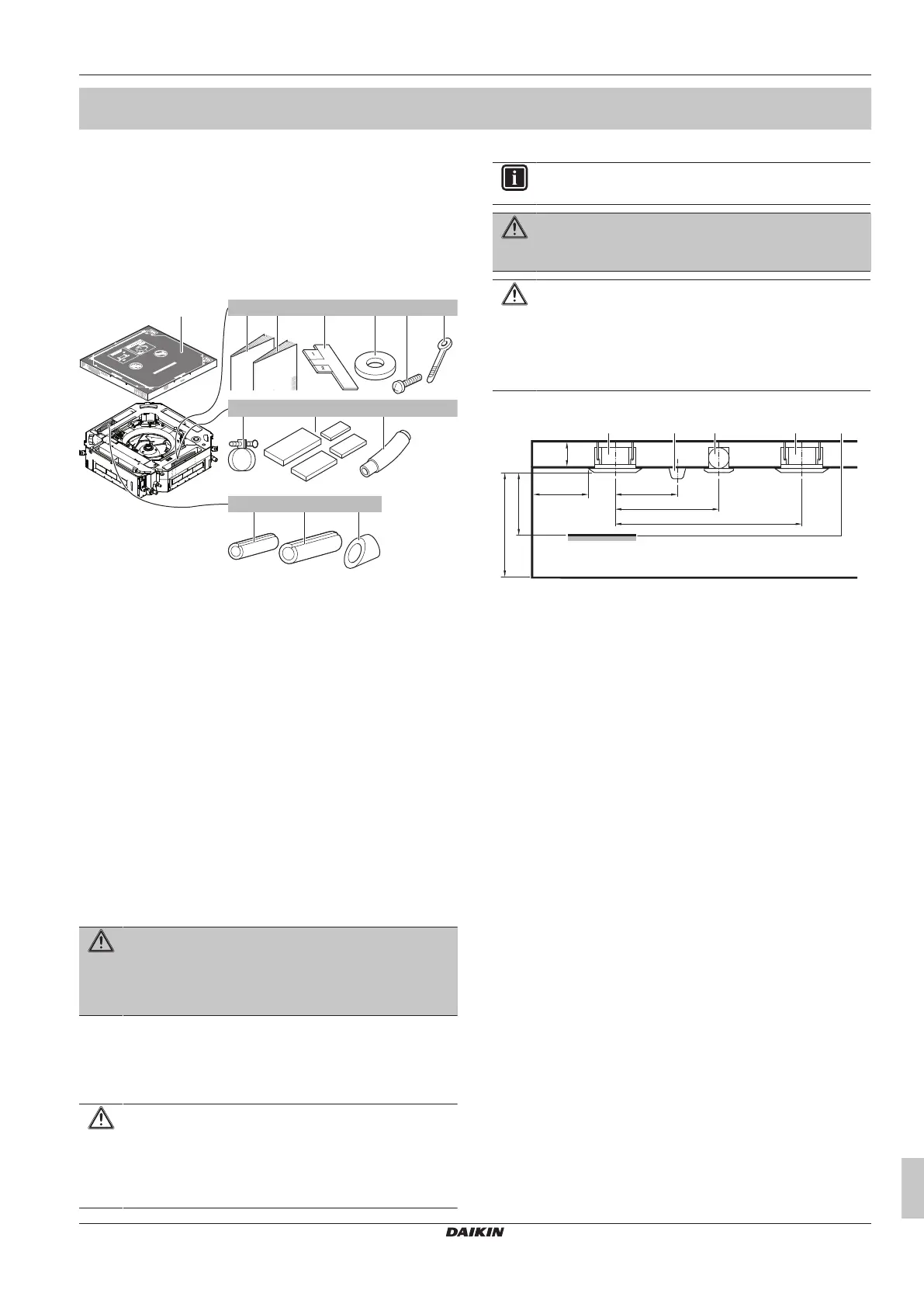

11 About the box

Installation and operation manual

FXFA20~125A2VEB

VRV system air conditioner

3P599604-1E – 2022.02

For the installer

11 About the box

11.1 Indoor unit

11.1.1 To remove the accessories from the

indoor unit

1×

1× 1×

8× 4×1×1× 1×

4×

1×

7×

e fdcb

h i

k l

a Paper pattern for installation (top part of packing box)

b General safety precautions

c Indoor unit installation and operation manual

d Installation guide

e Washers for hanger brackets

f Screws (to temporarily attach the paper pattern for

installation to the indoor unit)

g Tie wraps

h Metal clamp

i Sealing pads: Large (drain pipe), medium 1 (gas pipe),

medium 2 (liquid pipe), small (electrical wiring)

j Drain hose

k Insulation piece: Small (liquid pipe)

l Insulation piece: Large (gas pipe)

m Insulation piece (drain pipe)

12 Unit installation

12.1 Preparing the installation site

Avoid installation in an environment with a lot of organic solvents

such as ink and siloxane.

WARNING

The appliance shall be stored in a room without

continuously operating ignition sources (example: open

flames, an operating gas appliance or an operating electric

heater).

12.1.1 Installation site requirements of the

indoor unit

Minimum floor area requirements

CAUTION

The total refrigerant charge in the system cannot exceed

the requirements for minimum floor area of the smallest

room that is served. For minimum floor area requirements

for indoor units, see the installation and operation manual

of the outdoor unit.

INFORMATION

The sound pressure level is less than 70dBA.

WARNING

Keep any required ventilation openings clear of

obstructions.

CAUTION

Appliance NOT accessible to the general public, install it in

a secured area, protected from easy access.

This unit, both indoor and outdoor, is suitable for

installation in a commercial and light industrial

environment.

▪ Spacing. Mind the following requirements:

(mm)

≥1500

≥

2000

≥

4000

≥1500

ba dac

A Minimum distance to the wall (see below)

B Minimum and maximum distance to the floor (see below)

C 20~63 class:

≥227 mm: In case of installation with standard decoration

panel

≥269 mm: In case of installation with design decoration

panel

≥307 mm: In case of installation with self-cleaning

decoration panel

≥277 mm: In case of installation with standard panel +

fresh air intake kit

≥319 mm: In case of installation with design panel + fresh

air intake kit

80~100 class:

≥269mm: In case of installation with standard decoration

panel

≥311mm: In case of installation with design decoration

panel

≥349mm: In case of installation with self-cleaning

decoration panel

≥319mm: In case of installation with standard panel +

fresh air intake kit

≥361mm: In case of installation with design panel + fresh

air intake kit

125 class:

≥311 mm: In case of installation with standard decoration

panel

≥353 mm: In case of installation with design decoration

panel

≥391 mm: In case of installation with self-cleaning

decoration panel

≥361 mm: In case of installation with standard panel +

fresh air intake kit

≥403 mm: In case of installation with design panel + fresh

air intake kit

a Indoor unit

b Lighting (the figure shows ceiling-mounted lighting, but

recessed lighting is also allowed)

c Air fan

d Static volume (example: table)

▪ A: Minimum distance to the wall. Depends on the air flow

directions towards the wall.
