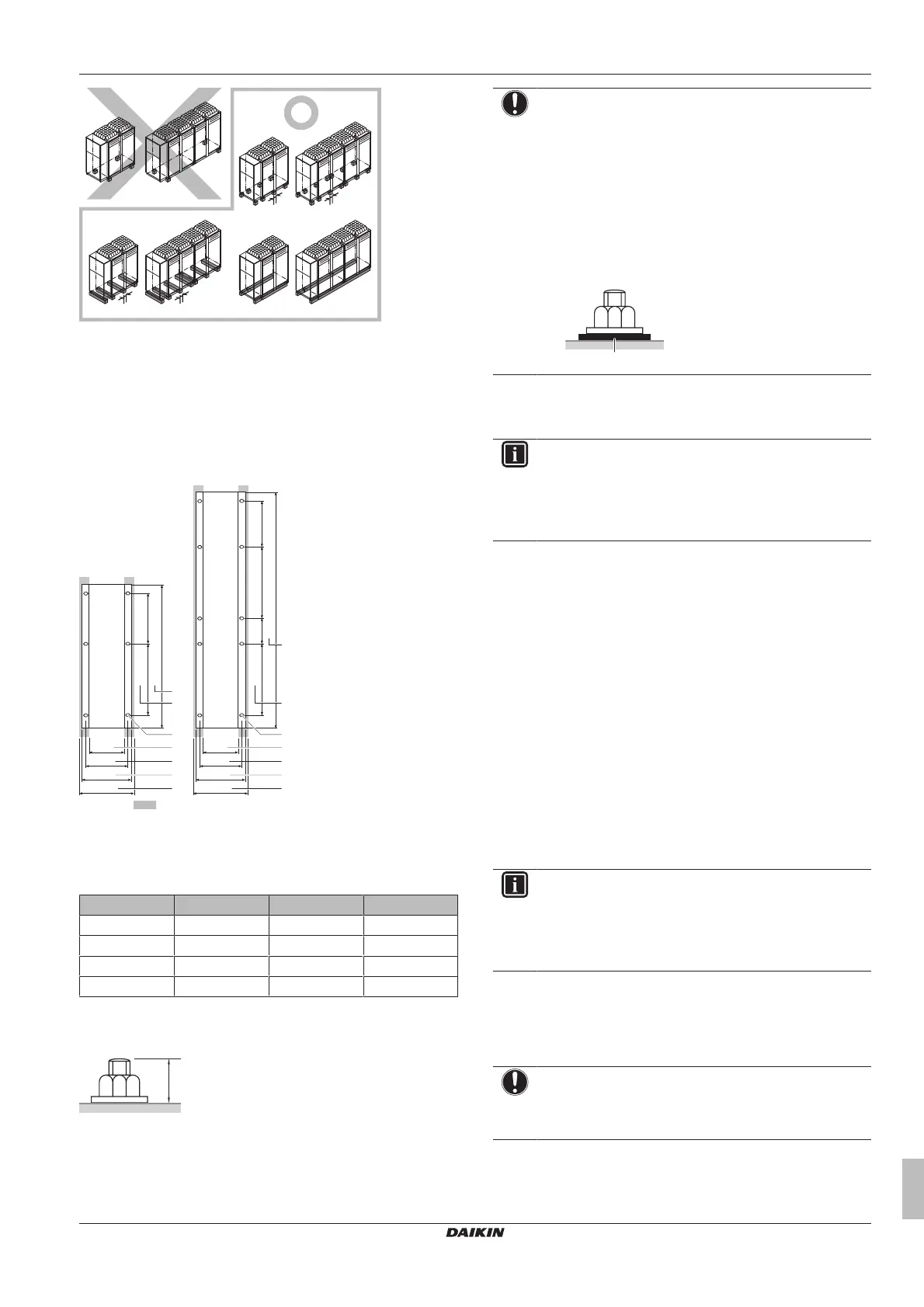

6 Installation
Installer and user reference guide
15
EWAQ016~064CAW + EWYQ016~064CAW
Packaged air-cooled water chiller
4P497339-1 – 2017.07
≥100 ≥100
≥100 ≥100
X Not allowed
O Allowed (* = preferred installation)
▪ The height of the foundation must at least be 150 mm from the
floor. In heavy snowfall areas, this height should be increased,
depending on the installation place and condition.
▪ The preferred installation is on a solid longitudinal foundation
(steel beam frame or concrete). The foundation must be larger
than the grey marked area.
729
765
765
631
A
B
729
765
765
631
A
B
C B
a
b
c
d
e
f
c
a
b
c
d
e
f
c
440
440
Minimum foundation
a Hole for foundation bolt
b Base inner dimension
c Distance between foundation bolt holes
d Depth of unit
e Base outer dimension
f Longitudinal foundation dimension
kW A B C
16~25 1340 792 —
32 1650 1102 —
40+50 2320 792 192
64 2940 1102 192
▪ Fasten the unit in place using four foundation bolts M12. It is best
to screw in the foundation bolts until their length remains 20mm
above the foundation surface.
20 mm
NOTICE
▪ Prepare a water drainage channel around the
foundation to drain waste water from around the unit.
During heating operation and when the outdoor
temperatures are negative, the drained water from the
outdoor unit will freeze up. If the water drainage is not
taken care of, the area around the unit might be very
slippery.
▪ When installed in a corrosive environment, use a nut
with plastic washer (a) to protect the nut tightening part
from rust.
a
6.3.3 Precautions when mounting the outdoor
unit
INFORMATION
Also read the precautions and requirements in the
following chapters:
▪ General safety precautions
▪ Preparation
6.4 Connecting the water piping
6.4.1 About connecting the water piping
Before connecting the water piping
Make sure the outdoor unit is mounted.
Typical workflow
Connecting the water piping typically consists of the following
stages:
1 Connecting the water piping of the outdoor unit.
2 Filling the water circuit.
3 Protecting the water circuit against freezing (addition of glycol).
4 Insulating the water piping.
6.4.2 Precautions when connecting the water
piping
INFORMATION
Also read the precautions and requirements in the
following chapters:
▪ General safety precautions
▪ Preparation
To connect the water piping
Water connections must be made in accordance with all applicable
legislations and the outlook drawing delivered with the unit,
respecting the water inlet and outlet.
NOTICE
Do NOT use excessive force when connecting the piping.
Deformation of the piping can cause malfunctioning of the
unit.
If dirt gets in the water circuit, problems may occur. Therefore,
always take into account the following when connecting the water
circuit:
