EWAQ016~064BAW + EWYQ016~064BAW
Packaged air-cooled water chiller
4PW70082-1E – 2016.12
Installation and operation manual
4

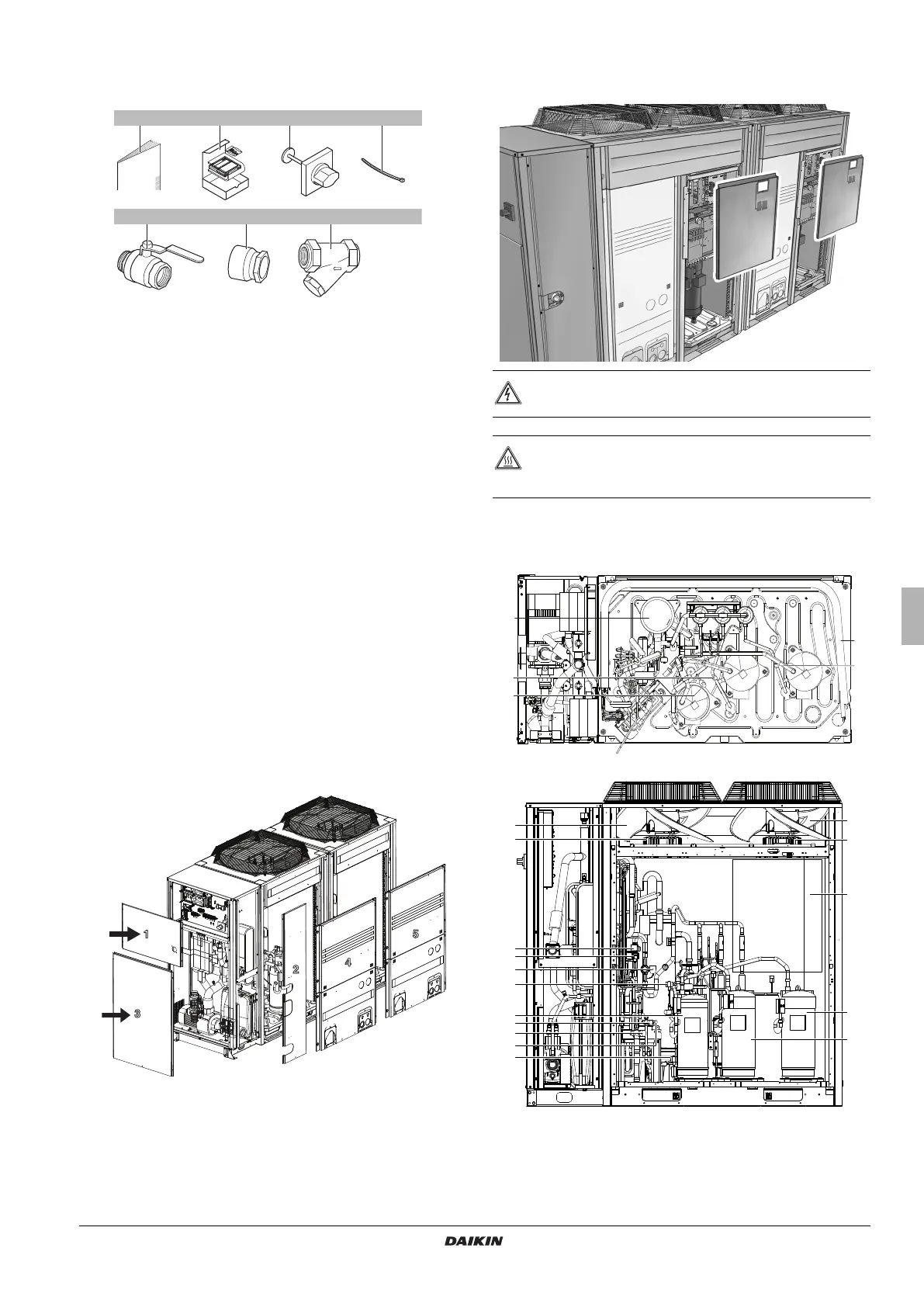

6. ACCESSORIES
The following accessories are supplied with the unit:
Refer to "7.1. Opening the unit" on page 4 how to get access to the
accessories. Refer to the table below for reference to where following
accessories are supplied with the unit.
If any optional kit is ordered with the unit, it will be delivered in a
separate box together with its respective addendum (manual):
• Addendum BHGP26A1 (electronic gauge kit) 1x
• Addendum DTA104A62 (external control adapter) 1x
• Addendum EKRP1AHTA (input PCB) 1x
For a detailed description of the optional kits, refer to "8.1. Check
optional equipment" on page 6.
7. OVERVIEW OF THE UNIT
7.1. Opening the unit
To gain access to the unit, front panels need to be opened as shown
in the following figure:
Once the front panels are open, the electrical component box of the
outdoor module(s) can be accessed by removing the electrical
component box cover as follows.
7.2. Main components of the outdoor module
The next figure refers to the model EWYQ032.
1 Installation and operation manual (panel 3)
2 Remote controller (panel 3)
3 Handle main switch (panel 1)
4 Tie wraps (panel 3)
5 Shut-off valves (panel 3)
6 Threaded connection (panel 3)
7 Filter (panel 3)
Panel 1 Gives access to the electrical parts of the hydro module
Panel 2 Gives access to the hydro module (side panel)
Panel 3 Gives access to the hydro module (front panel)
Panel 4 Give access to the outdoor module (left panel)
Panel 5 Give access to the outdoor module (right panel)
1x 8x
1342
1x 1x
567
2x 1x1x
1
3
2
4
5
DANGER: ELECTRICAL SHOCK
See "2. General safety precautions" on page 27.
DANGER: DO NOT TOUCH PIPING AND INTERNAL
PARTS
See "2. General safety precautions" on page 27.
16
7
10
16
16
5
6
5
25
20
19
6
1
2
11
12
18
23
24
14
22
4PWEN70082-1E_2016_12.book Page 4 Wednesday, December 7, 2016 2:18 PM
