EWAQ016~064BAW + EWYQ016~064BAW
Packaged air-cooled water chiller
4PW70082-1E – 2016.12
Installation and operation manual
40
6. FIELD SETTINGS
The unit shall be configured by the installer to match the installation
environment (outdoor climate, installed options, etc.) and user
demand. However, the field settings mentioned in "6.1.1. Field
settings on the remote controller" on page 41 can be modified to
customer preferences. Thereto, a number of so called field settings
are available. These field settings are accessible and programmable
through the remote controller.
Each field setting is assigned a 3-digit number or code, for example
[1-03], which is indicated on the remote controller display. The first
digit [1] indicates the 'first code' or field setting group. The second
and third digit [03] together indicate the 'second code'.
A list of all field settings and default values is given under
"6.1.1. Field settings on the remote controller" on page 41. In this
same list, we provided for 2 columns to register the date and value of
altered field settings at variance with the default value.
6.1. Procedure
To change one or more field settings, proceed as follows.

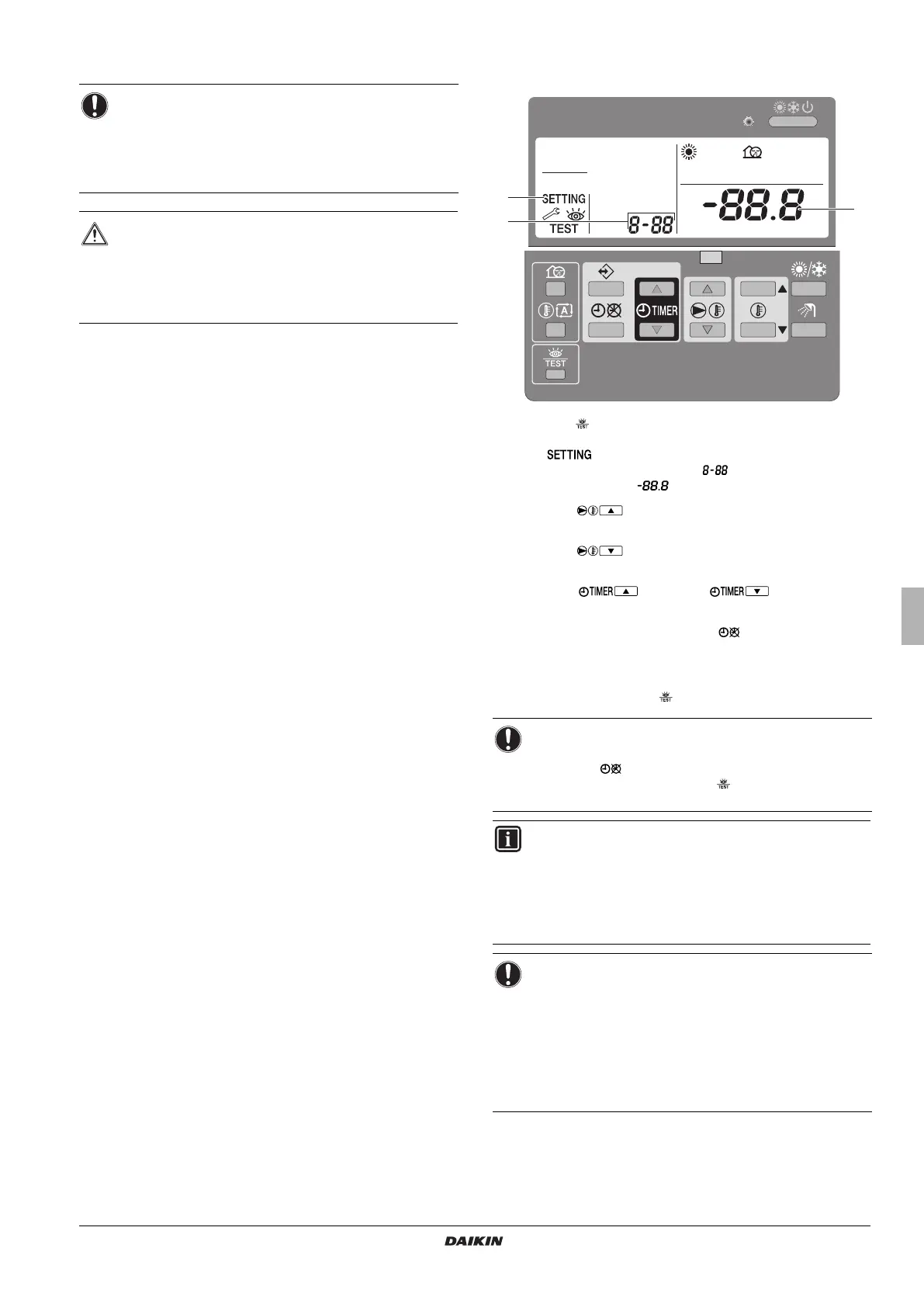

1 Press the button for a minimum of 5 seconds to enter FIELD
SET MODE.
The icon (3) will be displayed. The current selected
field setting code is indicated (2), with the set value
displayed to the right (1).
2 Press the button to select the appropriate field setting
first code.
3 Press the button to select the appropriate field setting
second code.
4 Press the button and button to change
the set value of the select field setting.
5 Save the new value by pressing the button.
6 Repeat step 2 through 4 to change other field settings as
required.
7 When finished, press the button to exit FIELD SET MODE.
NOTICE
The default values mentioned in "6.1.1. Field settings on
the remote controller" on page 41 are the values from
factory. The actual initial values shall be selected
according to your application. These values shall be
confirmed by your installer.
CAUTION
The field settings [4] and [5] depend on the applicable
legislation.
Before changing these settings, the new values shall
be confirmed by the installer and/or shall be according
to the applicable legislation.
NOTICE
Changes made to a specific field setting are only stored
when the button is pressed. Navigating to a new field
setting code or pressing the button will discard the
change made.
INFORMATION
Before shipping, the set values have been set as
shown under "6.1.1. Field settings on the remote
controller" on page 41.
When exiting FIELD SET MODE, "88" may be
displayed on the remote controller LCD while the unit
initialises itself.
NOTICE
When running through the field settings you may
notice that there are some more field settings as there
are mentioned in the "6.1.1. Field settings on the
remote controller" on page 41. These field settings
are not applicable and may not be changed!
For more information about installation related setting,
see installation manual of the unit. For settings
different from the default value, contact your installer.
2
3
1
4PWEN70082-1E_2016_12.book Page 40 Wednesday, December 7, 2016 2:18 PM
