D–EOMCP00104-14EN - 69/82
APPENDIX B: SOFTWARE UPLOAD TO THE CONTROLLER
It is possible to upload the software into the controller using two different ways: using the direct
download form a personal computer or using the Carel programming key.
B.1. Direct upload from PC
To upload the program, it is necessary:
-
To install in the PC the program Winload supplied by Carel and available on the web site
ksa.carel.com. It may also be required to Daikin.
-
to connect the PC, by means of a RS232 serial cable, to the Carel RS232/RS485 adapter
(code 98C425C001)
-
to connect the RS485 adapter port to the controller terminal port (J10) using a 6 wire phone
cable (terminal cable)
-
to disconnect the controller from pLAN and to set the net address to 0.
-
Switch on the controller and run Winload, select the correct serial port numer you are using
and wait (some tenths of seconds) for the “ON LINE” status (this meanings the program is
connected to the controller).
-
Then select the “Upload” folder and the “Application” section and select al program files
supplied by Daikin (one file in the “blb files” box and one or more files in the “iup files”
box).
-
Then press the “Upload” button and wait the transfer is completed; the program shows all
transfer phase in a window and when the process is completed the “UPLOAD
COMPLETED” message will appear.
-
Finally turn off the controller, disconnect it from the PC, reconnect the pLAN and set the
right net address.
This procedure has to be applied to all controllers on the unit with the exception of pCO
e
boards
and EEXV drivers.

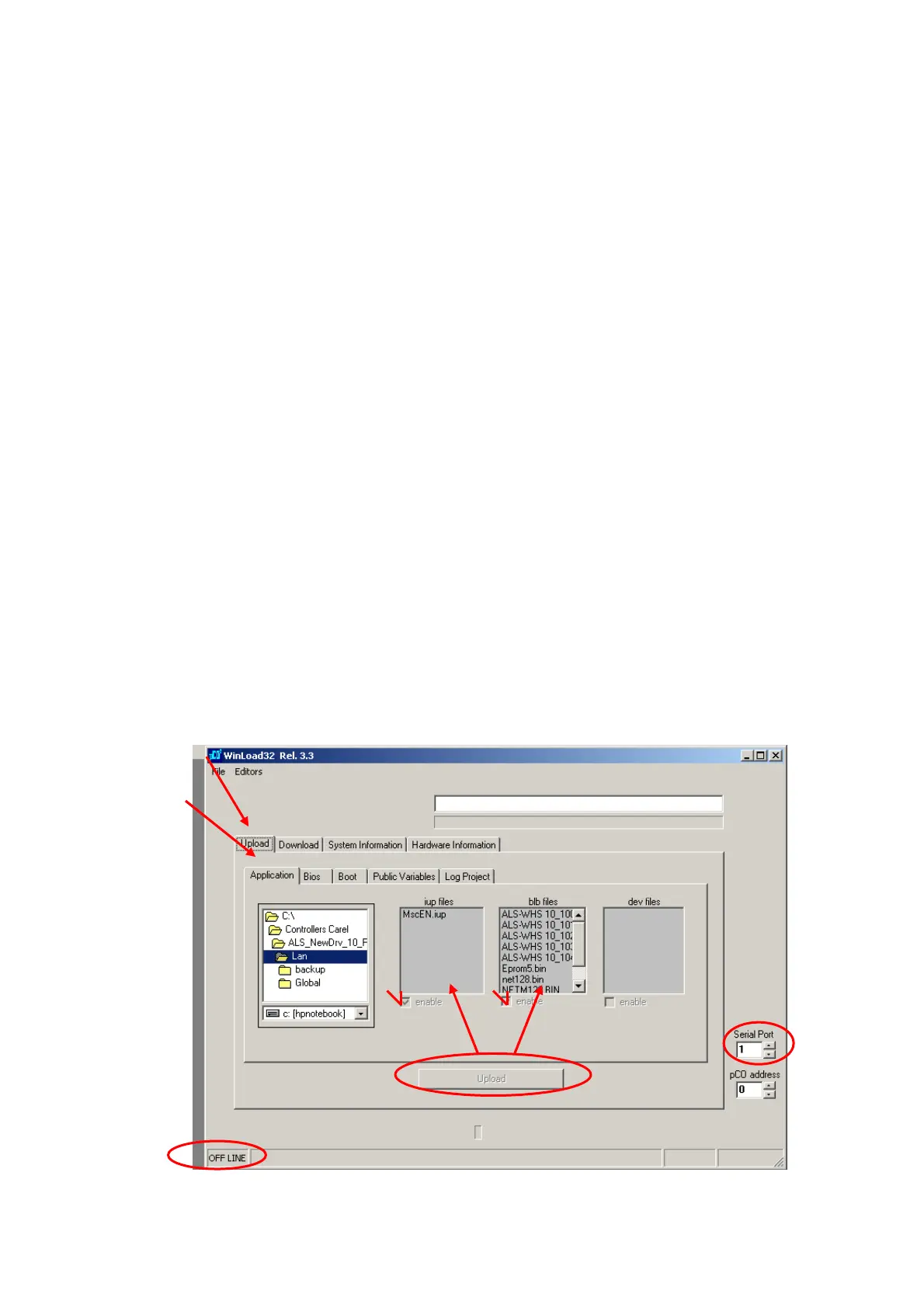

Fig 26 – WinLoad view
