D–EOMCP00104-14EN - 61/82
9.1. Mask tree
In fig 22 the structure of the mask tree beginning from the main menu is shown.
In violet the loop horizontally linked are shown.

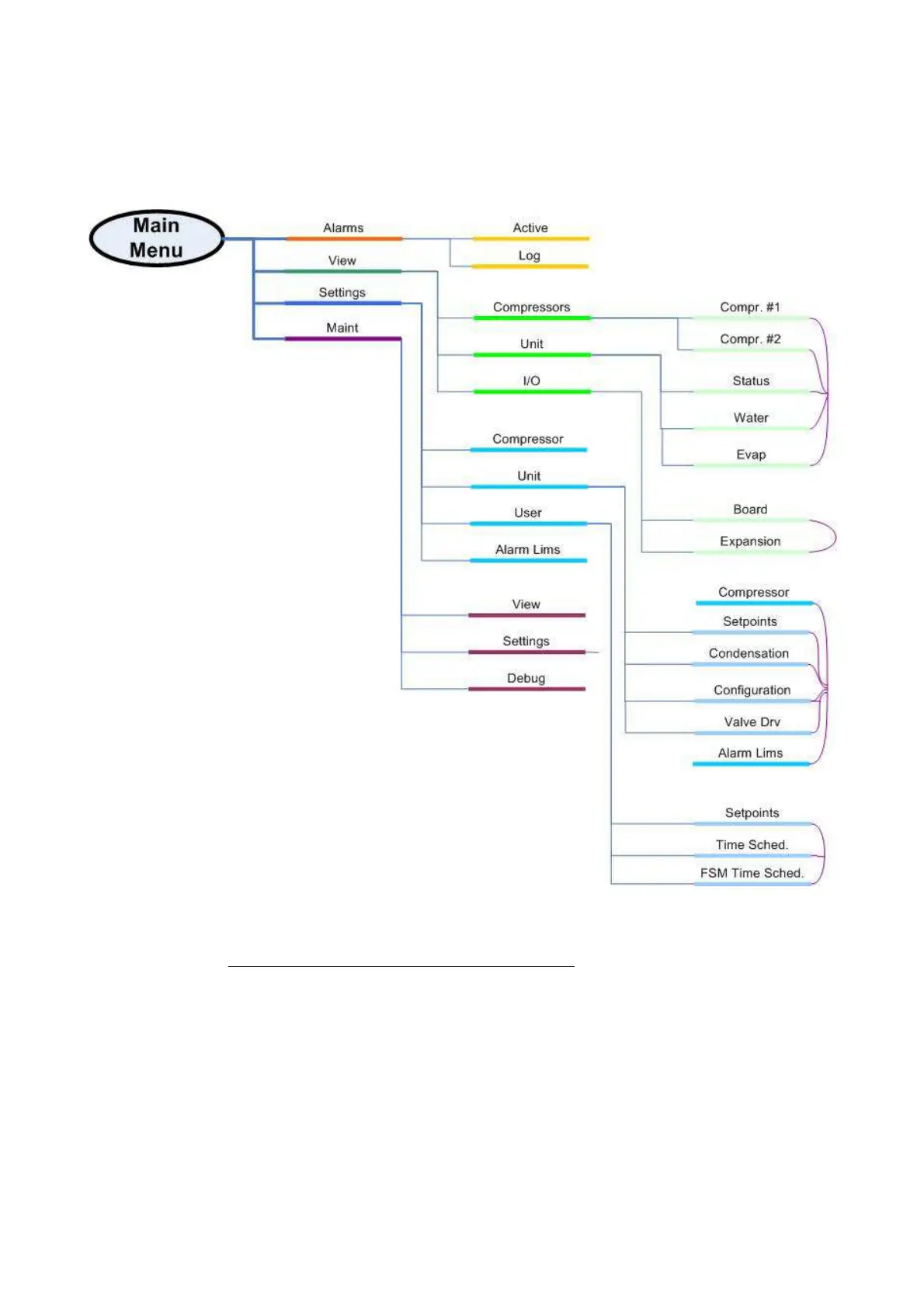

Fig 24 – Mask tree
9.1.1.
Details on Human Machine Interface structure
The HMI of the ASDU01C was developed trying to optimize its usability. This is the reason
why masks loops of the same group of parameters could be accessed using left and right arrows
creating also horizontal loops.
Parameters within a same horizontal loop could accessed with a unique password.
The structure of the interface assumes the layout of the following figure 24.
