5 | Application guidelines
Installer reference guide
38
EPRA14~18DAV3+W1 + ETBH/X16DA6V+9W
Daikin Altherma 3 H HT W
4P587501-1A – 2020.01
Benefits
Compared with heatpump convectors for one room:
▪ Comfort. You can set the desired room temperature, including schedules, for
each room via the remote controller of the heatpump convectors.

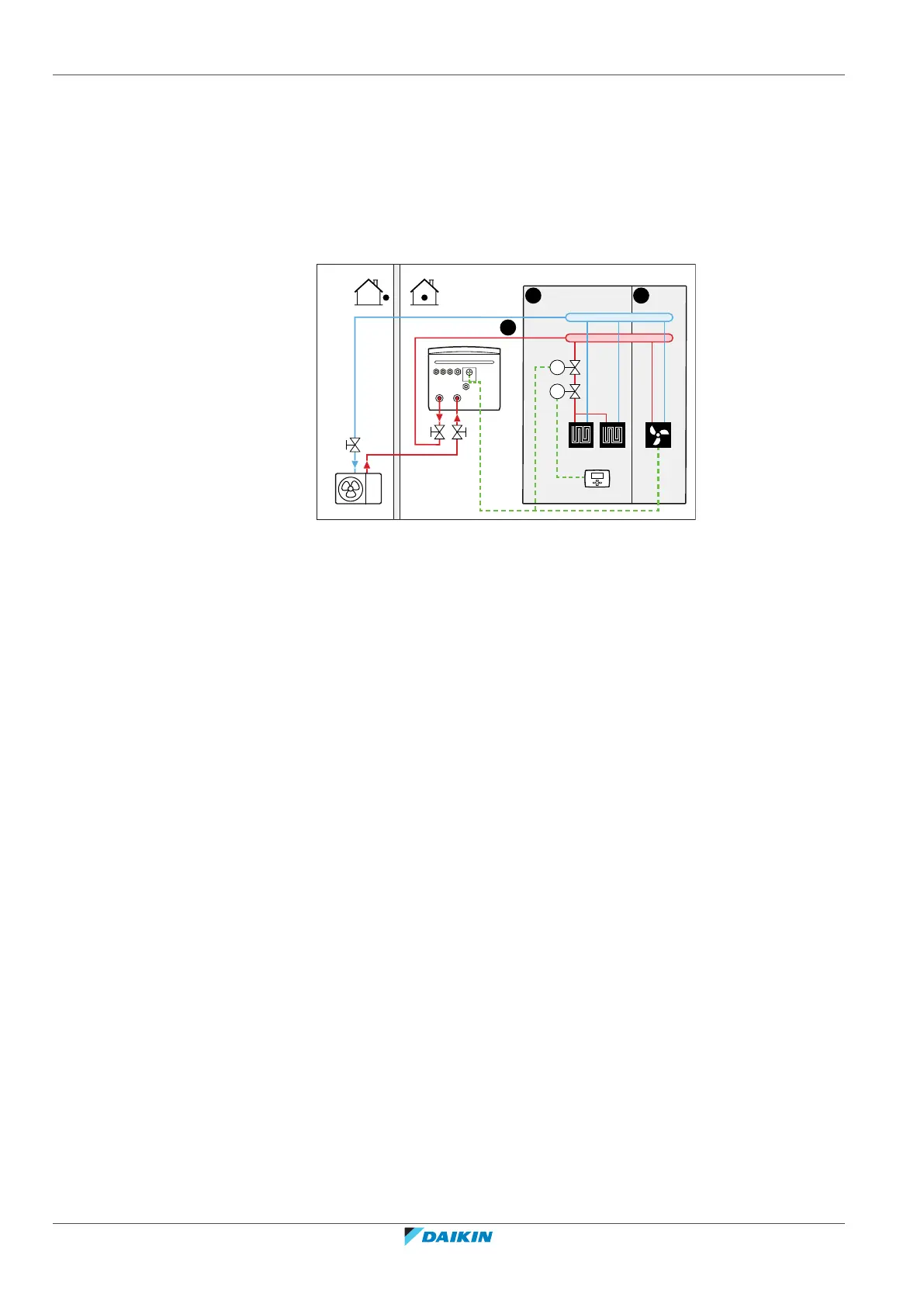

Combination: Underfloor heating + Heatpump convectors – Multiple rooms
Setup
b
B C
A
M1
a
M1
A Main leaving water temperature zone
B Room 1
C Room 2
a External room thermostat
b Heatpump convectors (+ controllers)
▪ For more information about connecting the electrical wiring to the unit, see:
- "8.2Connections to the outdoor unit"[494]
- "8.3Connections to the indoor unit"[4101]
▪ For each room with heat pump convectors: The heat pump convectors are
connected as follows:
- Warm water → Indoor unit
- Cold water → Outdoor unit
▪ For each room with underfloor heating: Two shut-off valves (field supply) are
installed before the underfloor heating:
- A shut-off valve to prevent hot water supply when the room has no heating
demand
- A shut-off valve to prevent condensation on the floor during cooling operation
of the rooms with heatpump convectors.
▪ For each room with heat pump convectors: The desired room temperature is set
via the controller of the heat pump convectors. There are different controllers
and setups possible for the heat pump convectors. For more information, see:
- The installation manual of the heat pump convectors
- The installation manual of the heat pump convector options
- The addendum book for optional equipment
▪ For each room with underfloor heating: The desired room temperature is set via
the external room thermostat (wired or wireless).
▪ The user interface integrated in the indoor unit decides the space operation
mode. Mind that the operation mode on each external room thermostat and
controller of the heatpump convectors must be set to match the indoor unit.
