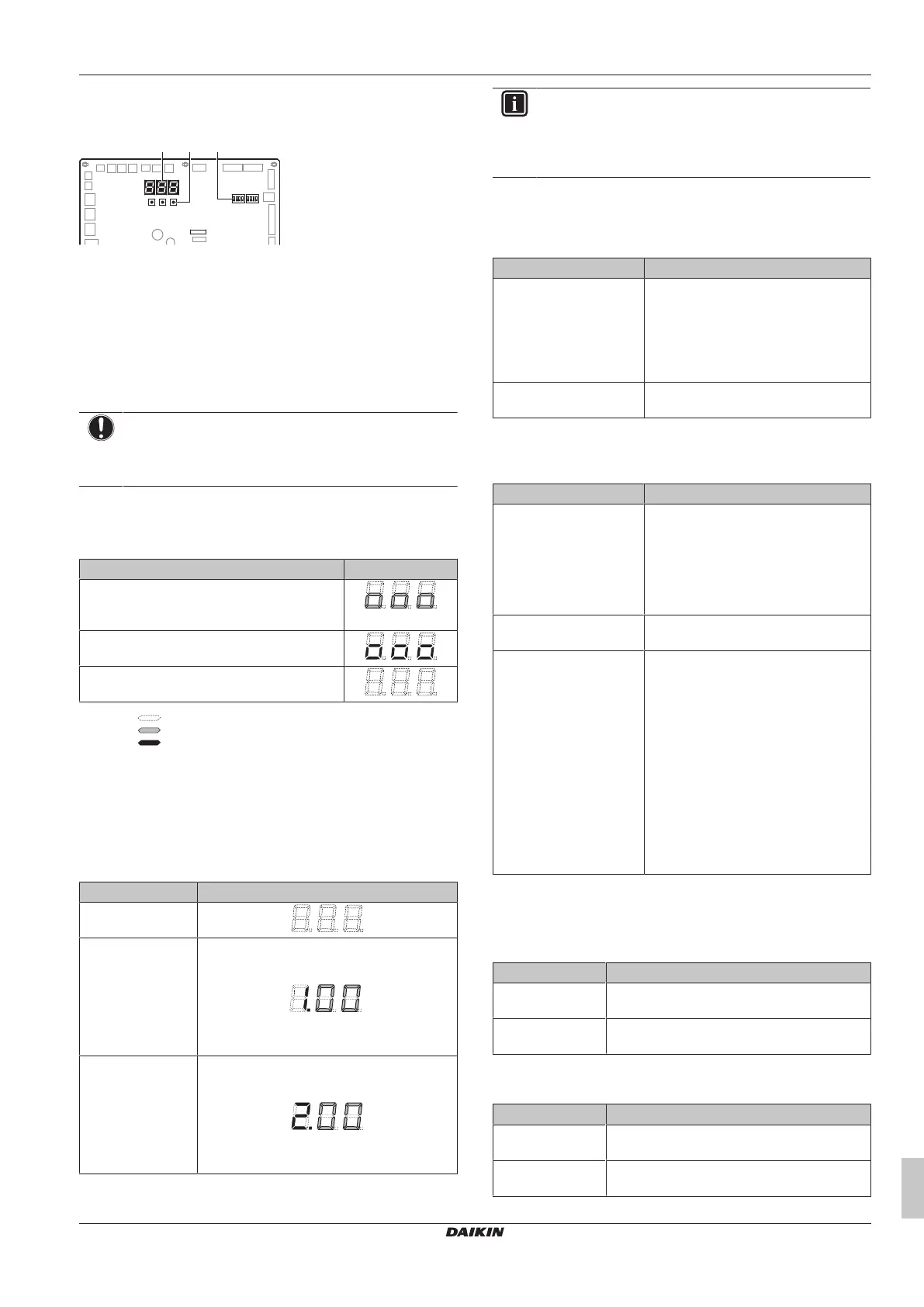

Je bekijkt pagina 37 van 48
18 Configuration
Installation and operation manual
37
ERA200~300AMYFB
Inverter outdoor unit for AHU option kit and air curtains
4P780153-1 – 2024.07
18.1.2 Field setting components
Location of the 7‑segment displays, buttons and DIP switches:
a b
BS1 BS2
DS1 DS2
BS3
c
X27A
BS1 MODE: for changing the set mode
BS2 SET: for field setting
BS3 RETURN: for field setting
DS1, DS2 DIP switches
a 7-segment displays
b Push buttons
c DIP switches
18.1.3 To access mode 1 or 2
Initialisation: default situation
NOTICE
Turn ON the power 6 hours before operation in order to
have power running to the crankcase heater and to protect
the compressor.
Turn ON the power supply of the outdoor unit and indoor unit. When
the communication between indoor unit and outdoor unit is
established and normal, the 7‑segment display indication state will
be as below (default situation when shipped from factory).
Stage Display
When turning on the power supply: blinking as
indicated. First checks on power supply are
executed (8~10min).
When no trouble occurs: lighted as indicated
(1~2min).
Ready for operation: blank display indication as
indicated.
Off
Blinking
On
In case of malfunction, the malfunction code is displayed on the
indoor unit user interface and the outdoor unit 7‑segment display.
Solve the malfunction code accordingly. The communication wiring
should be checked at first.
Access
BS1 is used to switch between the default situation, mode 1 and
mode2.
Access Action
Default situation
Mode1 ▪ Push BS1 one time.
7‑segment display indication changes to:
.
▪ Push BS1 one more time to return to the
default situation.
Mode2 ▪ Push BS1 for at least five seconds.
7‑segment display indication changes to:
▪ Push BS1 one more time (short) to return to
the default situation.
INFORMATION
If you get confused in the middle of the process, push BS1
to return to the default situation (no indication on
7‑segment displays: blank, see "18.1.3To access mode 1
or 2"[437].
18.1.4 To use mode 1
Mode1 is used to set basic settings and to monitor the status of the
unit.
What How
Changing and accessing
the setting in mode1
1 Push BS1 one time to select
mode1.
2 Push BS2 to select the required
setting.
3 Push BS3 one time to access the
selected setting's value.
To quit and return to the
initial status
Push BS1.
18.1.5 To use mode 2
Mode2 is used to set field settings of the outdoor unit and system.
What How
Changing and accessing
the setting in mode2
▪ Push BS1 for more than fiveseconds
to select mode2.
▪ Push BS2 to select the required
setting.
▪ Push BS3 one time to access the
selected setting's value.
To quit and return to the
initial status
Push BS1.
Changing the value of the
selected setting in mode2
▪ Push BS1 for more than fiveseconds
to select mode2.
▪ Push BS2 to select the required
setting.
▪ Push BS3 one time to access the
selected setting's value.
▪ Push BS2 to select the required value
of the selected setting.
▪ Push BS3 one time to validate the
change.
▪ Push BS3 again to start operation
with the chosen value.
18.1.6 Mode 1: monitoring settings
[1‑1]
Shows the status of low noise operation.
[1‑1] Description
0 Unit is currently not operating under low noise
restrictions.
1 Unit is currently operating under low noise
restrictions.
[1‑2]
Shows the status of power consumption limitation operation.
[1‑2] Description
0 Unit is currently not operating under power
consumption limitations.
1 Unit is currently operating under power
consumption limitation.
