2 | Applications
Application Guide
13
EKRACP* + EKRCTR* + EKRMIB* + EKRRVA* + EKRSEN* + EKRSIB* +
EKRUFH*
Daikin Home Controls
4P701747-1A – 2023.10
Zones Heating/cooling Connect to your Daikin
Altherma unit via…
Bizone Heating only DHC Basic IO Box
Heating/cooling DHC Multi IO Box
(a)
▪ Main zone can provide cooling
via underfloor heating or
convectors.
▪ Additional zone can ONLY
have thermostatic radiator
valves. They do NOT support
cooling.
(a)
An extra relay [Normally open; Coil: 220~240VAC; non-corroding contacts (preferably gold-
plated); minimum number of operations: 100.000] is required to connect the Daikin
Altherma unit and the DHC Multi IO Box. This is because the Daikin Altherma unit provides
a 230V H/C status signal and the DHC Multi IO Box input ONLY accepts low voltage.

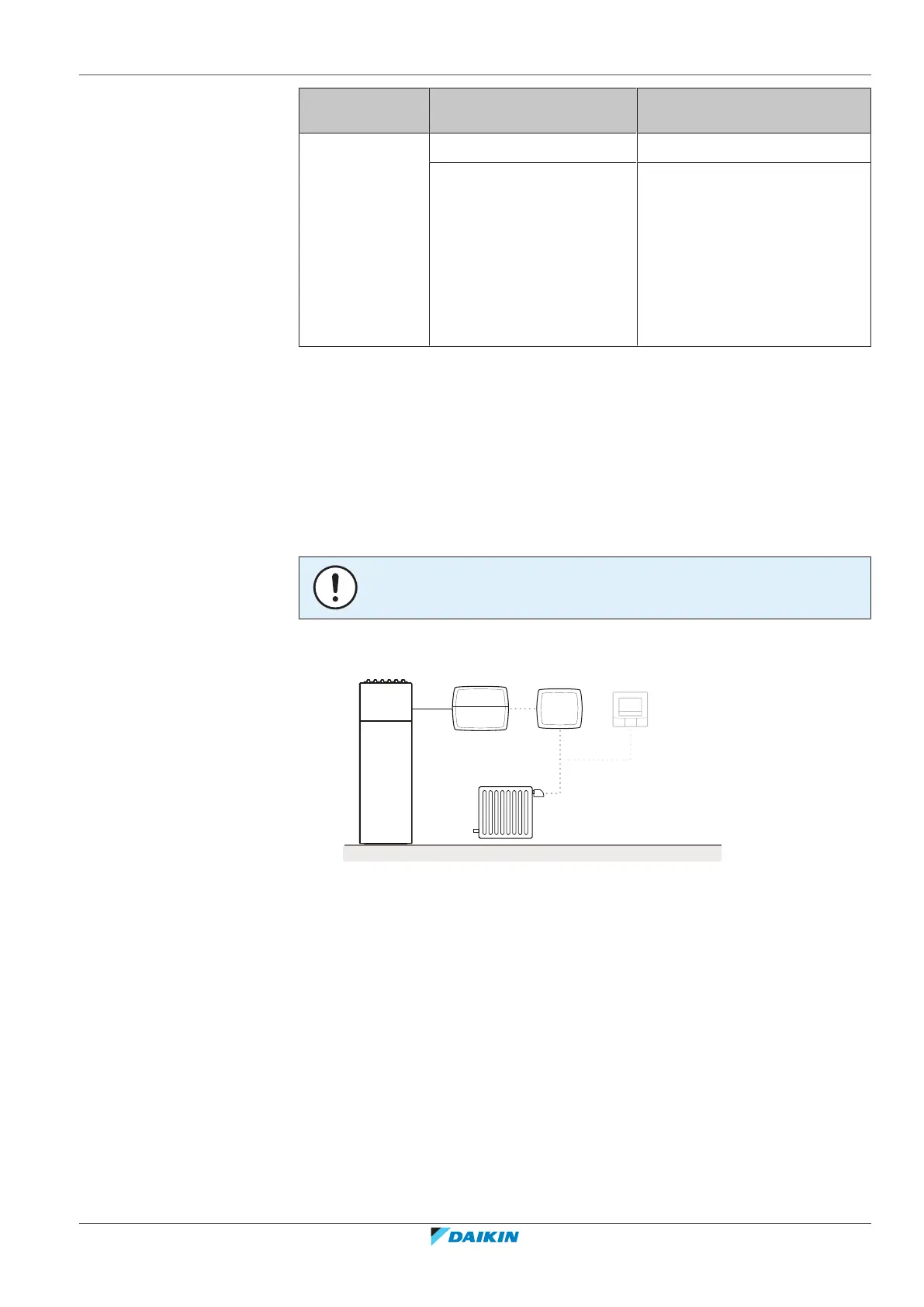

2.1 Single zone
2.1.1 Single zone heating only
NOTICE
The MMI settings MUST be adjusted first. See "5User interface settings"[422].
Radiator
a
c
d
e
b
f
a Daikin Altherma
b Radiator demand
c DHC Basic IO Box
d DHC Access Point
e (Optional) DHC Room Thermostat — 1 or 2
f DHC Radiator Thermostat
Underfloor heating
For this application, there MUST be one DHC Room Thermostat — 1 or 2 present
per room you wish to control.
