6 Configuration
Installation manual
18
EKMBPP1+EKMBPP1A
Modbus adapter
4P720139-1C – 2024.11

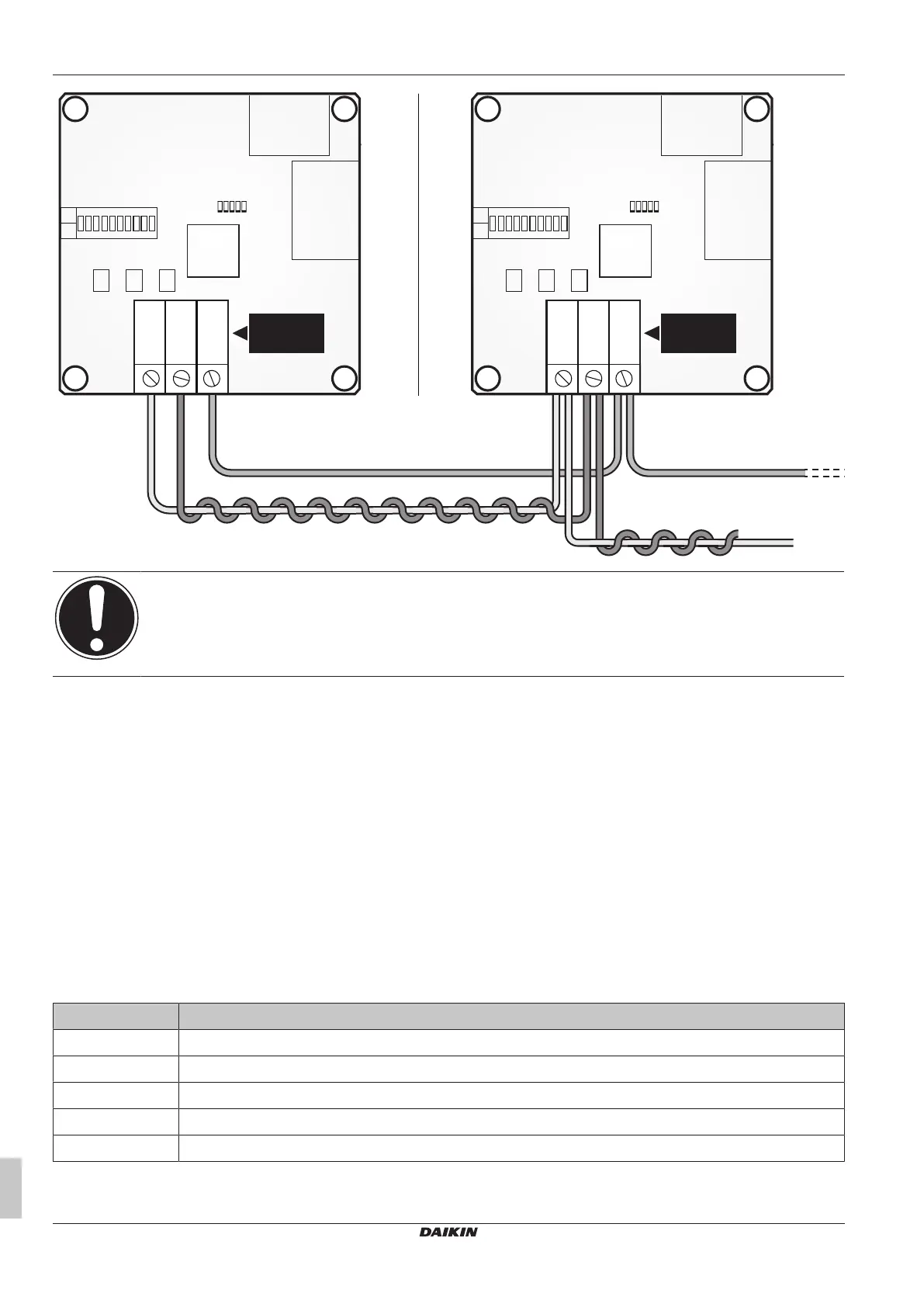

DB-
DA+
GND
DB-
DA+
X2M
GND
DB-
DA+
X2M
NOTICE
It is recommended that the GND connection is connected to
local earth at a single point only.
For information on the terminating resistance, see "6.3.4 Terminating
resistor settings" [4 23].
6 Configuration
6.1 Status LEDs
The EKMBPP1(A) has 5 LEDs that display information about the
current status. See "3.1 Components" [4 7] for the location of the LEDs
on the PCB.
LED Description
LED1 Status LED 1 (A)
LED2 Status LED 2 (B)
LED3 Indicates receiving P1P2 communication
(a)
LED4 Indicates receiving Modbus (RS-485) communication
(a)
HAP Indicates normal CPU operation
(b)
(a)
LED blinks for 20~40ms every time communication is received.
