4P642495-1– 2020.10 Page 6 of 52

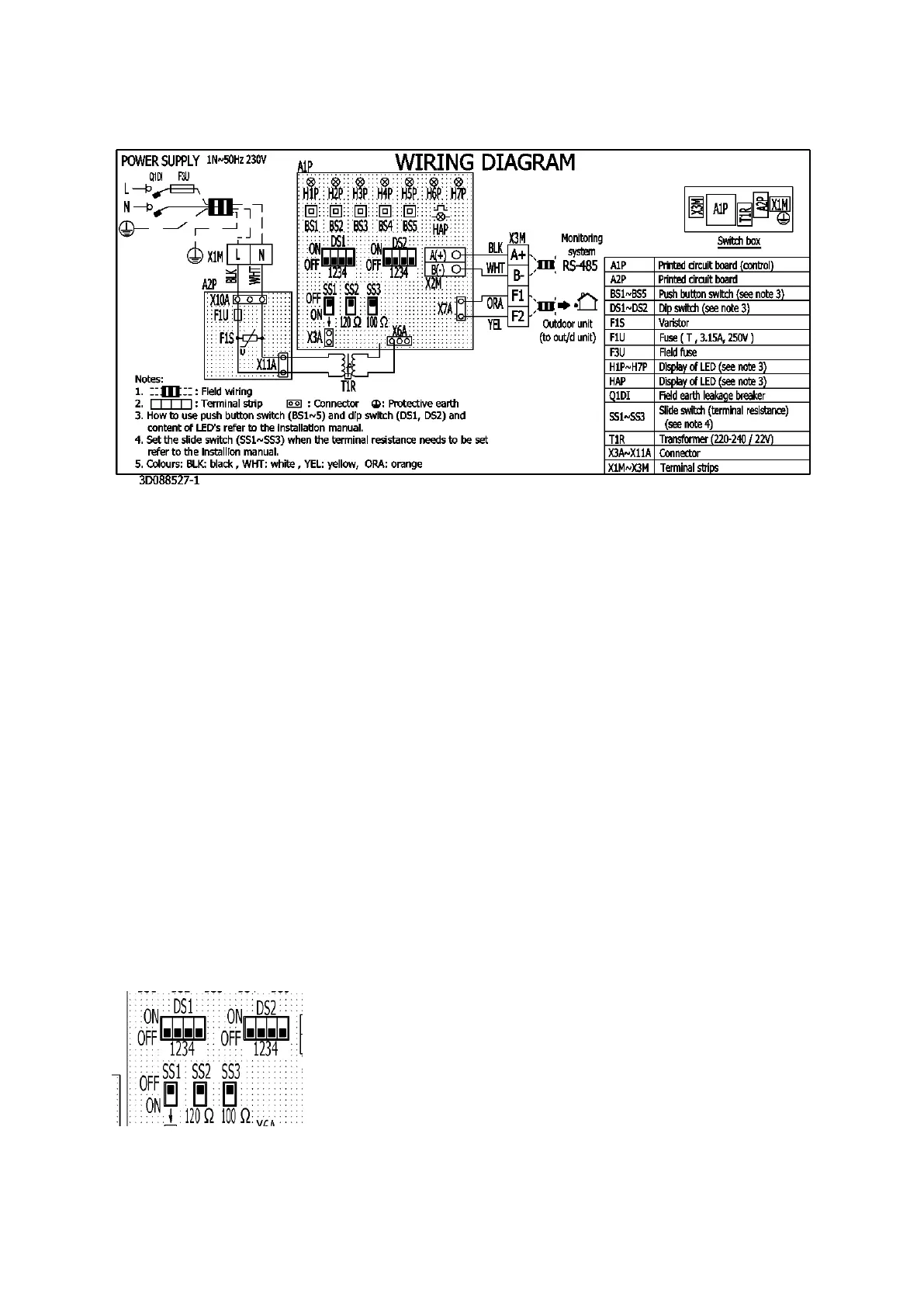

1.3.2 Wiring diagram
1.3.3 LED meaning
During normal operation (application is running):
H1P: DIII communication (sent)
H2P: DIII communication (receive)
H3P: RS485 communication (sent)
H4P: RS485 communication (receive)
H5P H6P H7P: no meaning
HAP: blinking at 400ms = application is running
During uploading of new software (firmware is running)
H1P till H7P: Progress indication (0 till 100%)
HAP: blinking at 200ms = firmware is running.
1.3.4 Termination resistance (SS switches)
By factory default the termination resistance is 0 Ohm (SS2=Off & SS3 =Off)
SS2 On = 120 Ohm
SS3 On = 100 Ohm
(SS2 = On & SS3 = On, not allowed)
Please slide the SS2 or SS3 to the ON position to set required termination resistance value of the RS485 line.
Remark: SS1: not used.
