14 Piping installation
Installation and operation manual
23
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1B – 2024.03
R3T
R2T

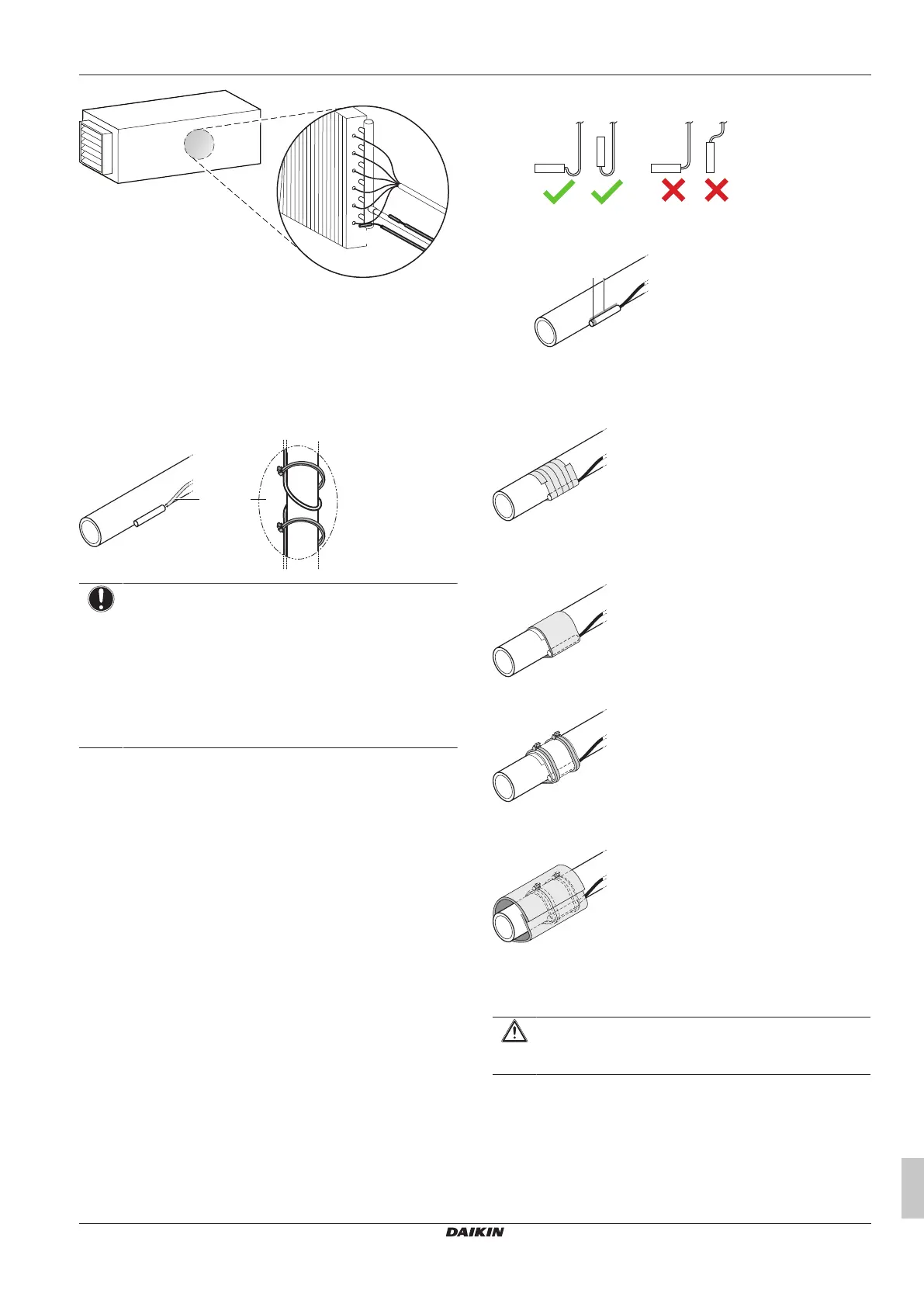

13.3.2 To install the thermistor cable
1 Put the thermistor cable in a separate protective tube.
2 Always add a pull-relief to the thermistor cable to avoid strain
on the thermistor cable and loosening of the thermistor. Strain
on the thermistor cable or loosening of the thermistor may result
in bad contact and incorrect temperature measurement.
a b
NOTICE
▪ The connection must be made on an accessible
location.
▪ To make the connection waterproof, the connection can
also be made in a switch box or connector box.
▪ The thermistor cable must be located at least 50 mm
away from power supply wire. Not following this
guideline may result in malfunction due to electrical
noise.
13.3.3 To install a longer thermistor cable
The thermistor is supplied with a standard cable of 2.5m. This cable
can be made longer up to 20m.
1 Cut the wire or bundle the remainder of the thermistor cable.
Keep at least 1m of the original thermistor cable.
2 Strip the wire ±7mm at both ends and insert these ends into the
wire-to-wire splice.
3 Pinch the splice with the correct crimp tool (pliers).
4 After connection, heat up the shrink-insulation of the wire-to-
wire splice with a shrink heater to make a watertight connection.
5 Wrap electrical insulation tape around the connection.
6 Put a pull-relief in front of and behind the connection.
13.3.4 To fix the thermistor
1 Make sure to install as follows:
▪ Put the thermistor wire slightly down to prevent water
accumulation on top of the thermistor.
▪ Make good contact between thermistor and air handling unit.
Put the top of the thermistors on the air handling unit, this is
the most sensitive point of the thermistor.
ba
a Most sensitive point of the thermistor
b Maximise the contact
2 Fix the thermistor with insulating aluminum tape (field supply) to
ensure a good heat transference.
3 Put an insulation rubber (delivered as accessory) around the
thermistor (R2T/R3T) to prevent loosening of the thermistor
after some years.
4 Fasten the thermistor with 2 cable ties (delivered as accessory).
5 Insulate the thermistor with insulation tape (delivered as
accessory).
14 Piping installation
CAUTION
See "2 Specific installer safety instructions" [4 6] to make
sure this installation complies with all safety regulations.
