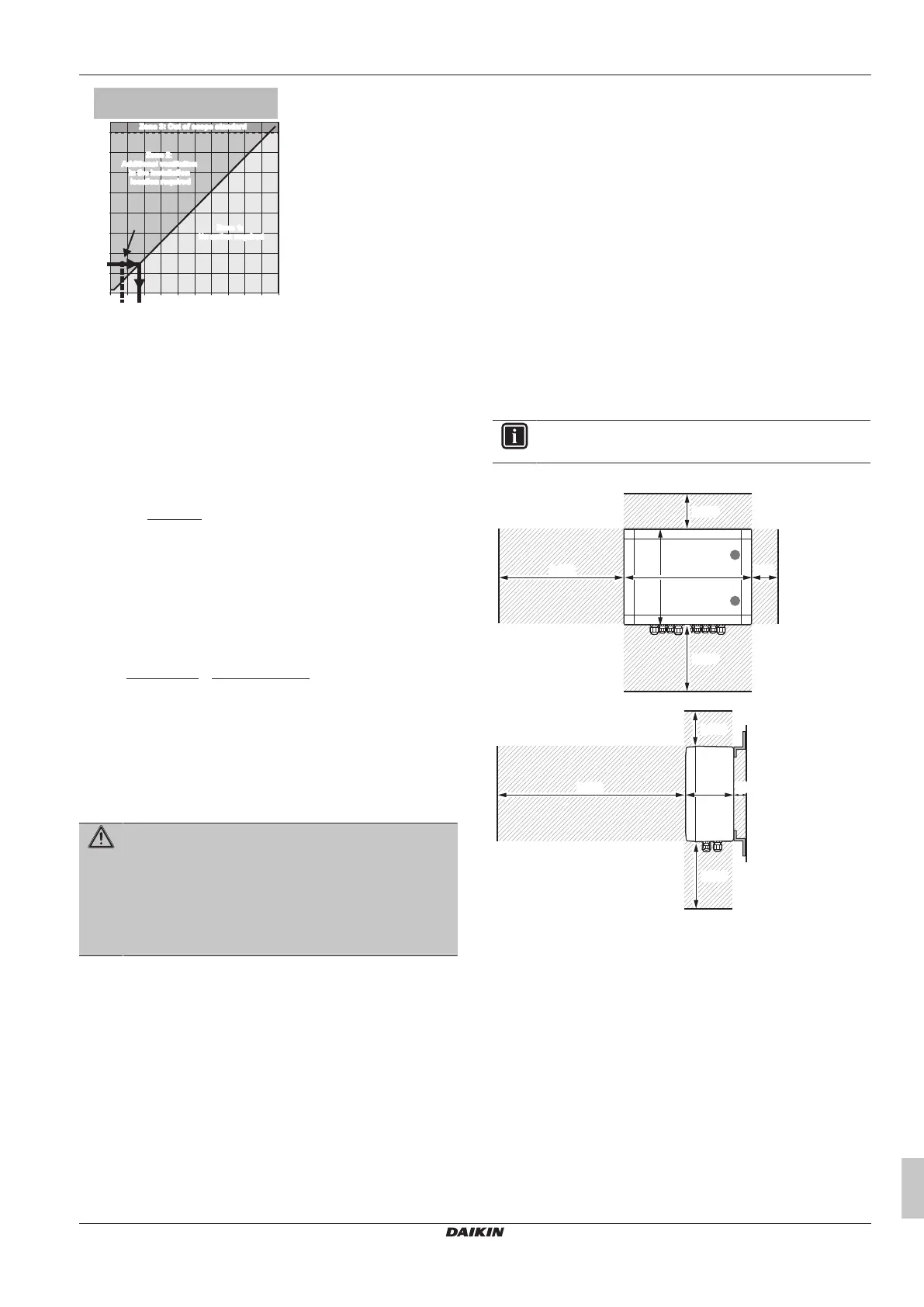

13 Unit installation
Installation and operation manual
21
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1B – 2024.03
0
30
40
50
60
70
80
m
c
[kg]
0 50 100 125 150
[m
2
]
200 25025 75 175 225
3a: Requirements for
AHU installation location
Zone 3: Out of scope standard
Zone 2:
Additional ventilation
in the installation
location required
Zone 1:
No action required
43=A
min
A
inst
=20
14.4
▪ Based on figure 3b, only circulation airflow is required (A
tot
>A
min
).
▪ Based on figure 2, the minimum circulation airflow needs to
remain above 2814m³/h.
▪ Based on figure 3a, additional ventilation in the installation
location is required (A
inst
<A
min
).
Note: Figure 3a is only applicable if the air handling unit is
installed indoors.
Calculation of the minimum additional ventilation airflow rate
(Q
min_vent
) in the installation location:
Q
min_vent
=
m
c
-m
max
4×LFL
×2×60 = 747 m³/h
Where the allowable maximum refrigerant charge m
max
is:
m
max
= 50%×LFL×H×A
inst
= 50%×0.307×2.2×20 = 6.75 kg
If mechanical extraction is required, the mechanical extraction must
take place to the outdoor or indoor space when the room area is
larger than the minimum room area (EAmin), using the calculation
formula:
EA
min
= =
m
c
-m
max
CF x LFL x H
m
c
-m
max
25% x 0.307 x 2.2
Note: In case of additional ventilation, the lower edge of the
openings extracting air from the room cannot be more than 100mm
above the floor.
13 Unit installation
WARNING
In case of R32 refrigerant, the installation MUST comply
with the requirements that apply to this R32 equipment.
For more information, see:
▪ "2.1 Instructions for equipment using R32
refrigerant"[47]
▪ "12Special requirements for R32 units"[417]
For the control box and the expansion valve kit:
▪ The unit can be installed indoors and outdoors, but do NOT install
it in direct sunlight. Direct sunlight will increase the temperature
inside the unit and may reduce its lifetime and influence its
operation.
▪ Choose a flat and strong mounting surface.
▪ The operating temperature of the unit is between –20°C and 52°C.
▪ Do NOT install the unit in or on the outdoor unit.
▪ Do NOT install or operate the unit in rooms:
▪ Where mineral oil, like cutting oil is present.
▪ Where the air contains high levels of salt, e.g. air near the
ocean.
▪ Where sulphurous gas is present, e.g. in areas of hot springs.
▪ In vehicles or vessels.
▪ Where voltage fluctuates a lot, e.g. in factories.
▪ Where high concentration of vapor or spray are present.
▪ Where machines generating electromagnetic waves are
present.
▪ Where acidic or alkaline vapor is present.
13.1 Control box
13.1.1 Installation site requirements of the
control box
INFORMATION
The sound pressure level is less than 70dBA.
Mind the following spacing installation guidelines:
≥50
≥100
≥400
≥100
≥400
≥50400
300
(mm)
≥200≥200
≥600≥600
(mm)
≥100≥100
≥200≥200
49150 1010
13.1.2 To install the control box
1 Open the cover with the key (delivered as accessory).
2 Attach the hanger brackets with their screws (delivered as
accessory) to the control box.
3 Fix the control box with its hanger brackets to the mounting
surface.
Use 4 screws (for holes of Ø6mm).
