16 Configuration
Installation and operation manual
28
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1 – 2023.06

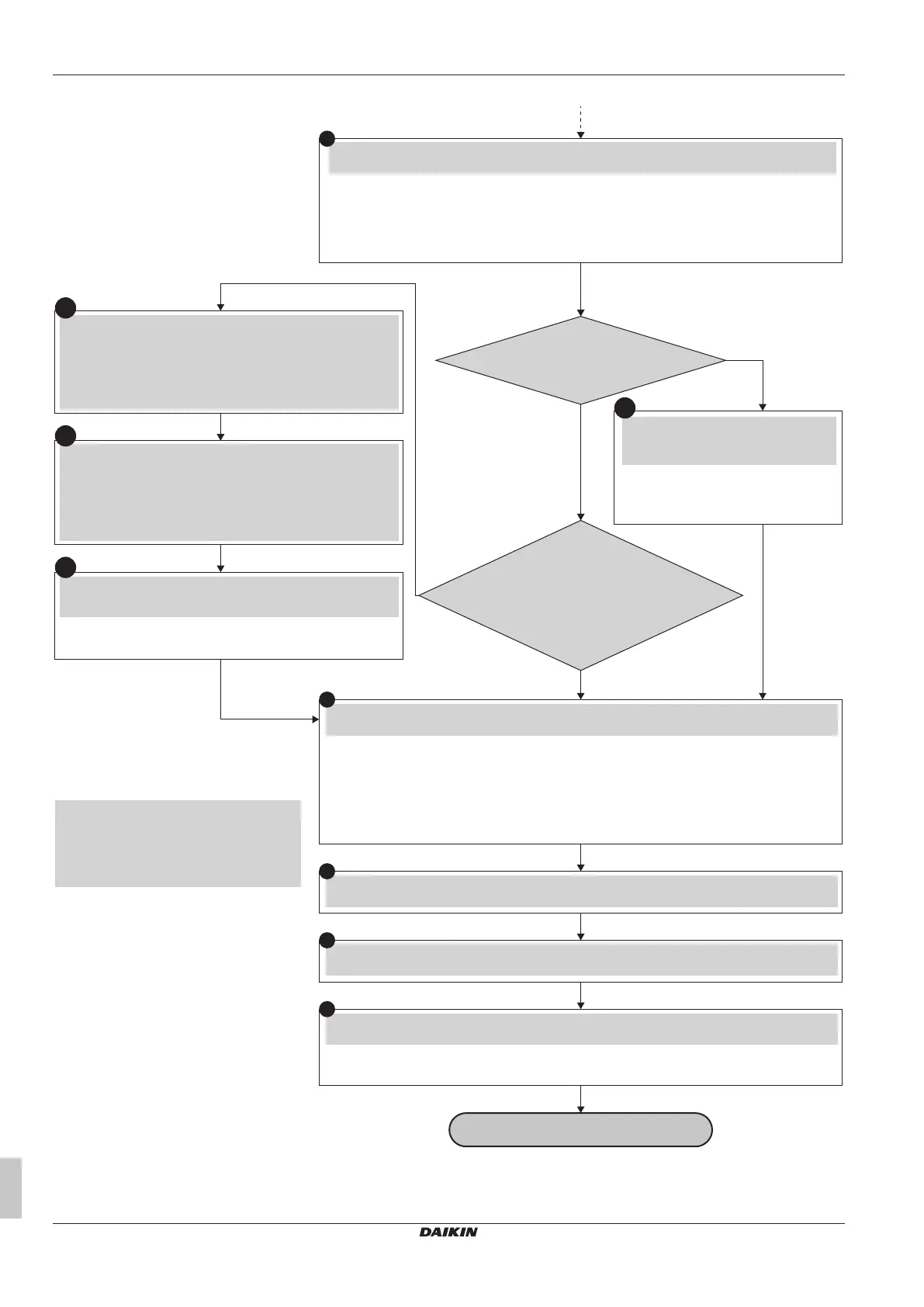

Only cooling/heating application?
Will the T3T4 input be used for cooling/heating
selection? (*1)
1. Power OFF EKEA(s).
2. Connect the expansion valve cable.
3. Connect F1F2.
4. Power ON EKEA(s).
▪ 11(21)-13 (see chapter "16.2 Field settings“)
(see chapter "16.2 Field settings“)
▪ 11(21)-11
▪ 11(21)-13
▪ 11(21)-14
▪ 13(23)-13
▪ In some situations, disconnecting the remote controller is NOT allowed, see other parts of the manual.
▪ 10(20)-15 (see chapter "16.2 Field
settings“)
No
Yes
Yes
No
Connect all indoor and outdoor units of the system with
F1F2. Make sure that all units are powered ON.
Set the EKEA that you want to use for cooling/heating
selection as the cooling/heating master.
Change the field setting for T3T4 selection.
Change the other field settings that require a power cycle.
Power cycle the EKEA(s).
If needed, change other field settings.
If needed, disconnect the remote controller and power cycle the EKEA(s).
Change the operation mode
restriction setting.
Connect F1F2 to the EKEA(s).
Continued from previous page
Configuration completed
(1)
If "Yes", the cable for the T3T4 input should have
been connected already in step 1, step 4.1 or step
4.2.
5
6
7
8
9
5.1
5.2
5.3
5.4
