15 Electrical installation
Installation and operation manual
25
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1 – 2023.06

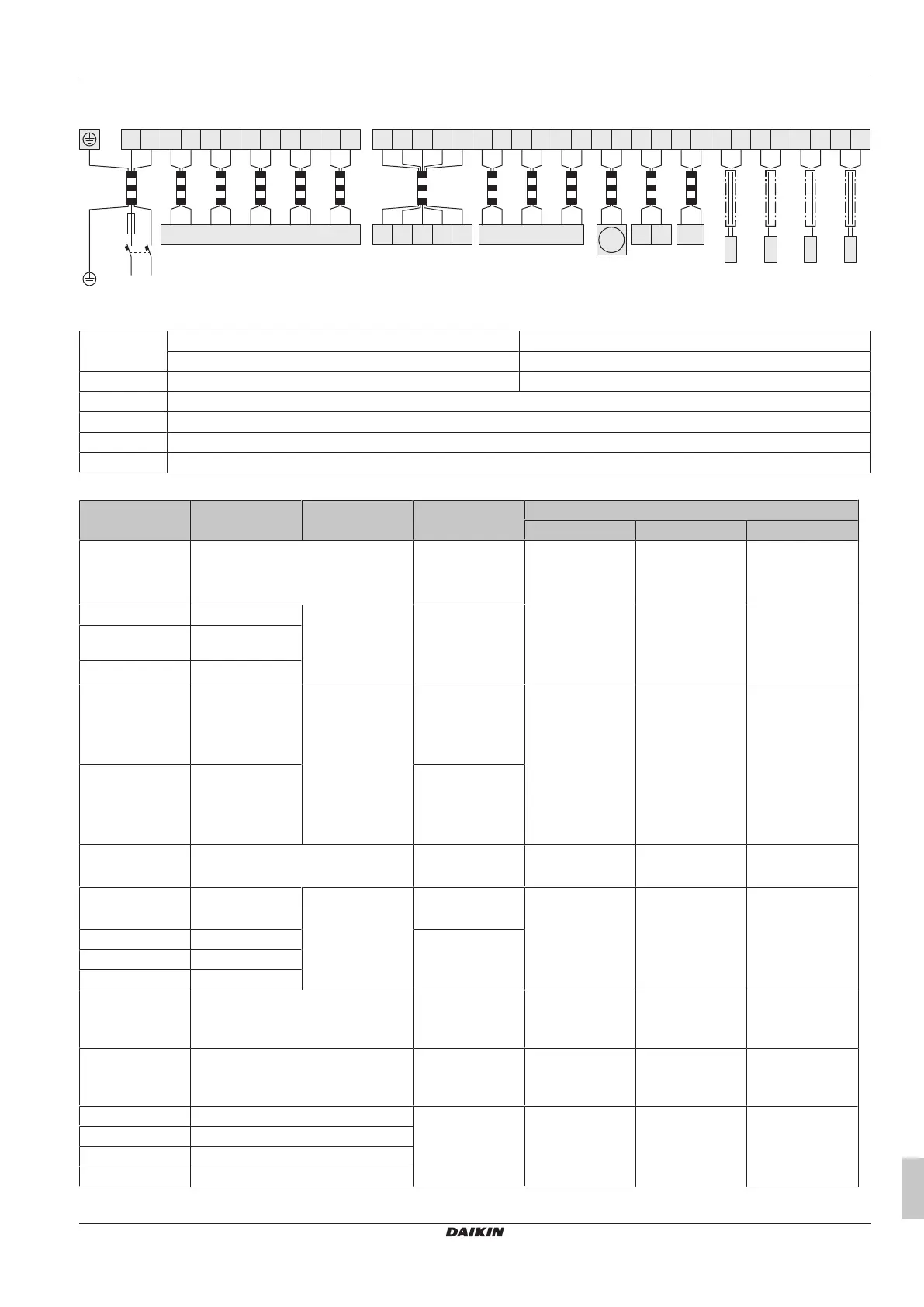

6 Connect as shown in the following figure and table.
L N K1 K2
L
1~
50/60 Hz
220-240/220 V
N
K3 K4 K5 K6 K7 K8 K9
K10 Y1 Y2 Y3 Y4 Y6 C1 C2 T3 T4 T5 T6 P1 P2 F1 F2 T1 T2 R1 R2 R3 R4 R5 R6 R7 R8
R3T
R2T
R1T
R4T
X1M X2M
EKEXVAContr. Contr. Contr.O/U
BRC
F1 F2Y1 Y2 Y3 Y4 Y6
H1 H3 H2 H3 H3 H2 H4 H6 H6 H6 H8 H7 H6 H9 H9 H9 H9
F1U
Q1DI
F1U Recommended field fuse 6A
MCA
(a)
0.22A
Q1DI Earth leakage circuit breaker / residual current device MUST comply with national wiring regulation
BRC Remote controller
Contr. Controller (field supply)
EKEXVA Expansion valve kit
O/U Outdoor unit
(a)
MCA=Minimum circuit ampacity. Stated values are maximum values.
Terminal Description Connect to Specifications Cable
(a)
Cores (+ entry) Size (mm²)
(b)
Max. length (m)
L, N, earth Power supply 220-240V / 220V
1~
50/60Hz
3 core (H1) 2.5 —
K1, K2 Error status EKEA Controller (field
supply)
Digital output
(voltage free)
0-230VAC
Max. 0.5A
6 core (H3) 0.75
(c)
K5, K6 Compressor
operation
K7, K8 Defrost operation
K3, K4 AHU fan
instruction
Controller (field
supply)
Digital output
(voltage free)
0-230VAC
Max. 2A.
4 core (H2) 0.75
(c)
K9, K10 R32 alarm Digital output
(voltage free)
0-230VAC
Max. 0.5A
Y1~Y6 Expansion valve kit Digital output
12VDC
5 core (H4) 0.75 20
C1, C2 0-10VDC voltage
signal
(d)
Controller (field
supply)
Analogue input
0-10VDC
8 core (H6) 0.75 20
(e)
T1, T2 Operation ON/OFF Digital input
16VDC
T3, T4 Cooling/heating
T5, T6 Malfunction
(f)
F1, F2 Outdoor unit Communication
line
16VDC
2 core (H7) 0.75 100
P1, P2 BRC Wired remote controller Communication
line
16VDC
2 core (H8) 0.75 100
R1, R2 R2T Thermistor (liquid pipe) Analogue input
16VDC
8 core (H9) 0.75 20
R3, R4 R3T Thermistor (gas pipe)
R5, R6 R1T Thermistor (suction air)
R7, R8 R4T Thermistor (discharge air)
(a)
Only use harmonised wire providing double insulation and suitable for the applicable voltage.
