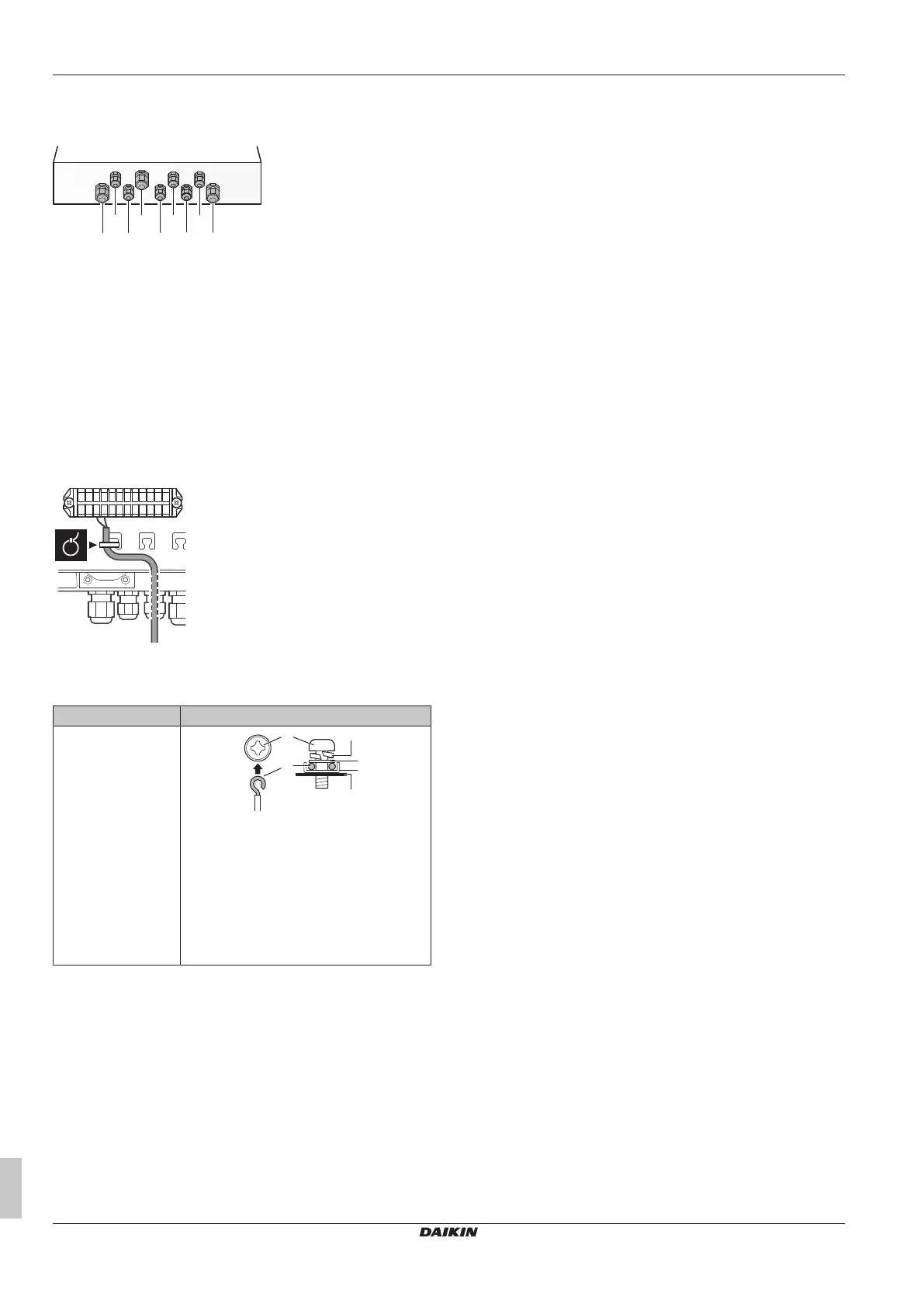

15 Electrical installation
Installation and operation manual
24
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1 – 2023.06
K8R Magnetic relay (feedback connection relay PCB to main
PCB)
X1M Terminal block
X2M Terminal block
H1
H3
H2 H4 H6 H8
H5
H7
H9
H1~H9 Cable openings / cable glands. If not used, close with
stoppers (delivered as accessory). H5 is used if the
master-slave function is implemented. See "11.9Master-
slave configuration"[415].
1 For all used cable openings: install cable glands (with screw
nuts and O-rings)(delivered as accessory).
2 For all unused cable openings: close the openings with
stoppers (delivered as accessory).
3 Pull the cables inside the control box through their dedicated
cable glands (as shown below: H1~H9) and close the screw nut
firmly in order to ensure good pull relief and water protection.
4 For all cables, provide an additional pull relief inside the control
box. The figure below shows one example.
5 Connect the earth wire of the power supply to the sheet metal
inside the EKEA as shown below to make sure that the earth
connection is rigidly fixed.
Wire type Installation method
Single-core wire
Or
Stranded conductor
wire twisted to "solid-
like" connection
d
a
b c
f
e
a Clockwise curled wire (single-core or
twisted stranded conductor wire)
b Screw
c Spring washer
d Flat washer
e Coupling washer
f Sheet metal
