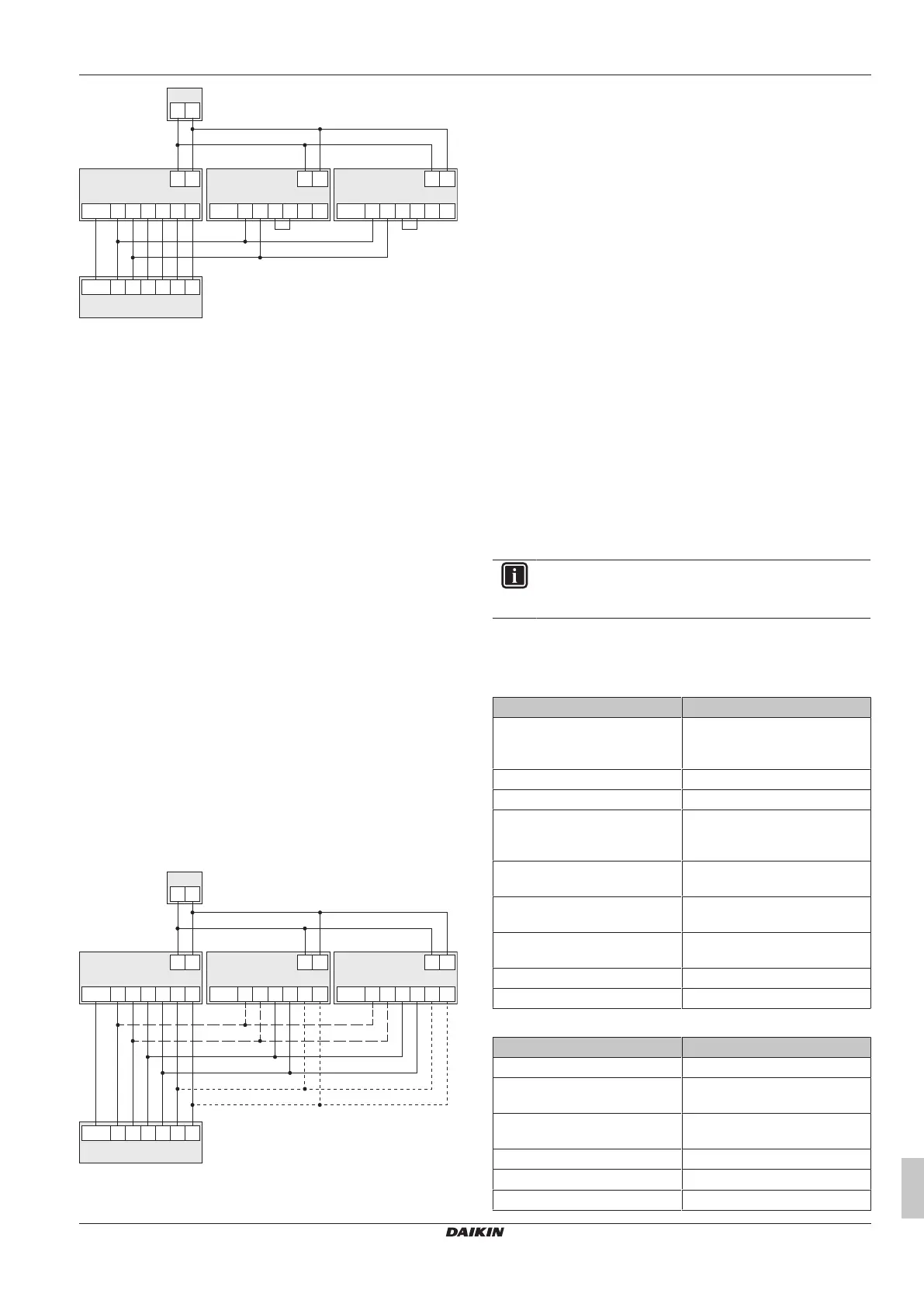

12 Special requirements for R32 units
Installation and operation manual
17
EKEACBVE + EKEXVA50~500
Option kit for combination of Daikin outdoor units with field-
supplied air handling units
4P724517-1 – 2023.06
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Master
Contr.
K8K7T6T5C2C1I/O...
BRC
P2P1
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Slave
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Slave
BRC Remote controller
Contr. Controller (field supply)
EKEA Control box
I/O... Other input/output signals
Master Master
Slave Slave
Notes:
▪ The P1P2 connection between the remote controller, the EKEA
master and the EKEA slaves is always required.
▪ All other connections are optional depending on the situation:
▪ In general, all inputs and outputs only need to be connected to
the EKEA master.
▪ If C1C2 is used, it needs to be connected to the EKEA master
and to all EKEA slaves.
▪ If T5T6 is used, it only needs to be connected to the EKEA
master, the connection can be short-circuited on the EKEA
slaves.
▪ If T5T6 is not used, the connection needs to be short-circuited
on the EKEA master and on all EKEA slaves, see
"11.3Operation signals"[413].
▪ If K7K8 is used, it only needs to be connected to the EKEA
master.
▪ There are other electrical connections to the EKEA control box
that are not shown in the figure, these are left out for the clarity of
the figure.
11.9.2 Separate refrigerant circuits system
The figure below shows how the inputs and outputs must be
connected in case of a separate refrigerant circuit system. This
means that the expansion valve kits of the EKEAs configured as
master and slave, are connected to different refrigerant circuits.
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Master
Contr.
K8K7T6T5C2C1I/O...
BRC
P2P1
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Slave
EKEA
K8K7
P2P1
T6T5C2C1I/O...
Slave
BRC Remote controller
Contr. Controller (field supply)
EKEA Control box
I/O... Other input/output signals
Master Master
Slave Slave
Notes:
▪ The P1P2 connection between the remote controller, the EKEA
master and the EKEA slaves is always required.
▪ All other connections are optional depending on the situation
▪ In general, all inputs and outputs only need to be connected to
the EKEA master.
▪ If C1C2 is used, it needs to be connected to the EKEA master
and to all EKEA slaves.
▪ If T5T6 is used, it needs to be connected to the EKEA master
and to all EKEA slaves.
▪ If T5T6 is not used, the connection needs to be short-circuited
on the EKEA master and on all EKEA slaves, see
"11.3Operation signals"[413].
▪ If K7K8 is used, it needs to be connected to the EKEA master
and to all EKEA slaves.
▪ There are other electrical connections to the EKEA control box
that are not shown in the figure, these are left out for the clarity of
the figure.
12 Special requirements for R32
units
INFORMATION
Also read the precautions and requirements in
"2.1Instructions for equipment using R32 refrigerant"[47].
For the safe operation of systems containing R32, make sure to
meet the requirements as shown in the graphs and tables at the
beginning of this manual:
"Figure 1"[42]:
English Translation / description
1: Requirements for spaces
served by AHU (m
c
≤16 kg)
1: Requirements for spaces
served by air handling unit
(m
c
≤16 kg)
A
min_room
Required minimum room area
but not less than but not less than
h
0
Release height, which is the
vertical distance in metres from
the floor to the point of release
LFL Lower flammability limit =
0.307kg/m³ for R32
m
c
Total refrigerant charge in the
system
Measures must be provided
following figures 2 and 3
Measures must be provided
following figures 2 and 3
No R32 safety requirements No R32 safety requirements
valid for m
c
>1.84 kg valid for m
c
>1.84 kg
"Figure 2"[43]:
English Translation / description
2: Minimum circulation airflow 2: Minimum circulation airflow
LFL Lower flammability limit =
0.307kg/m³ for R32
m
c
Total refrigerant charge in the
system
Q [m³/h] Circulation airflow rate
Q
min
=60×m
c
/LFL Minimum circulation airflow rate
Zone 1: Q>Q
min
Zone 1: Q>Q
min
