5 | About the units and options

Installer reference guide

27

ERLA11~16D + EBSH/X(B)11+16P30+50D

Daikin Altherma 3 R ECH₂O

4P663482-1C – 2023.05

5 About the units and options

In this chapter

5.1 Overview: About the units and options ................................................................................................................................. 27

5.2 Identification........................................................................................................................................................................... 27

5.2.1 Identification label: Outdoor unit .......................................................................................................................... 27

5.2.2 Identification label: Indoor unit ............................................................................................................................. 28

5.3 Combining units and options.................................................................................................................................................. 28

5.3.1 Possible combinations of indoor unit and outdoor unit ....................................................................................... 28

5.3.2 Possible options for the outdoor unit.................................................................................................................... 29

5.3.3 Possible options for the indoor unit ...................................................................................................................... 29

5.1 Overview: About the units and options

This chapter contains information about:

▪ Identifying the outdoor unit

▪ Identifying the indoor unit

▪ Combining the outdoor unit with options

▪ Combining the indoor unit with options

5.2 Identification

5.2.1 Identification label: Outdoor unit

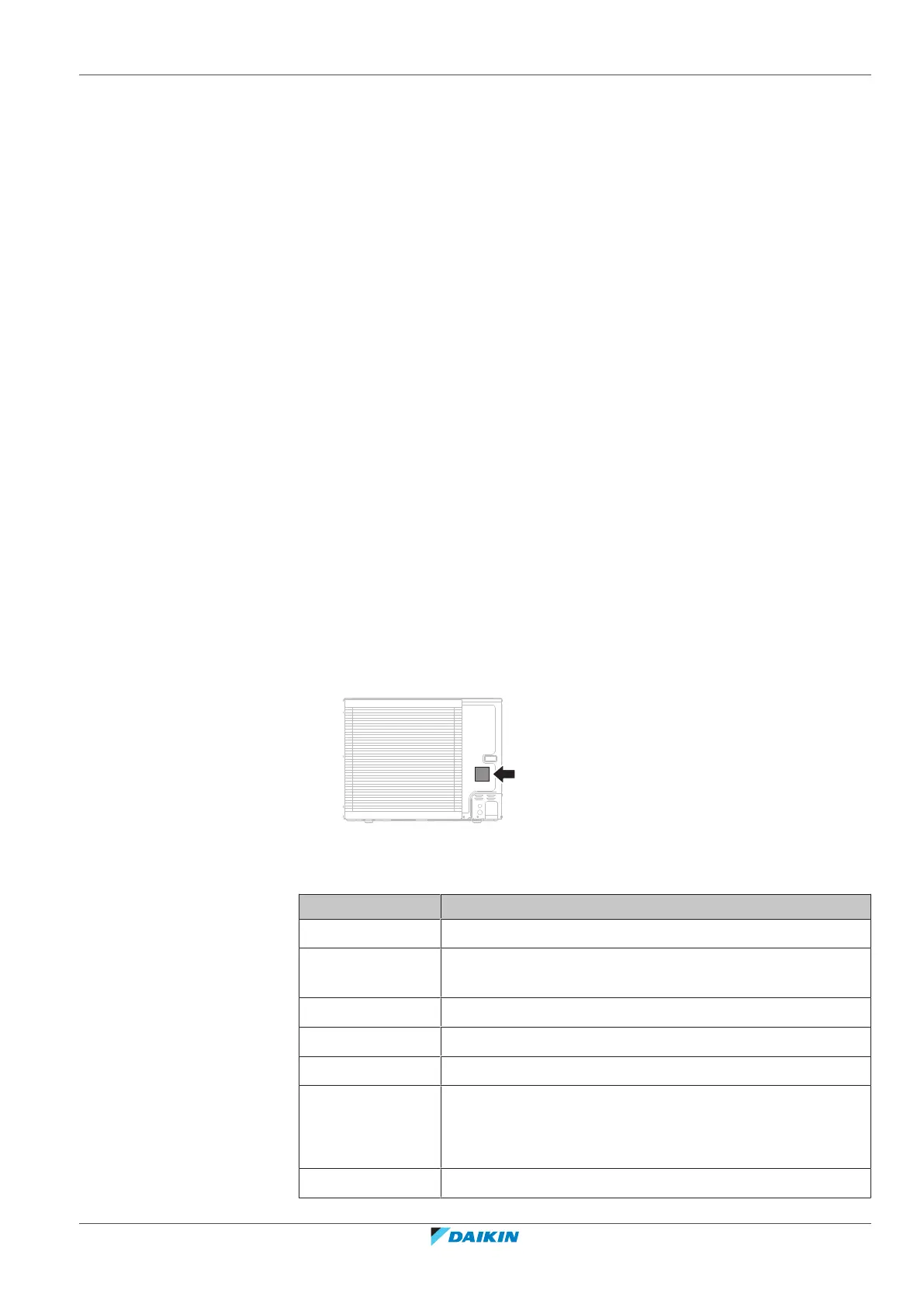

Location

Model identification

Example: ERLA16DAV37

Code Explanation

ER European refrigerant split outdoor pair heat pump

L Low water temperature – ambient zone 2 (see operation

range)

A Refrigerant R32

16 Capacity class

DA Model series

V3 Power supply:

V3=1N~, 230VAC, 50Hz

W1=3N~, 400VAC, 50Hz

7 Model series
