4 | About the box
Installer reference guide
26
ERLA11~16D + EBSH/X(B)11+16P30+50D
Daikin Altherma 3 R ECH₂O
4P663482-1C – 2023.05
k Drain pan hose clamp
l Cable fixation for strain relief
m Cable tie
n O‑ring
o Chimney socket
p Securing clip
q Switch box metal insert
r Screw for switch box metal insert
s Top cover screws
t General safety precautions
u Addendum book for optional equipment
v Indoor unit installation manual
x Operation manual
x Addendum software changelog
y Addendum commercial warranty
4.2.3 To handle the indoor unit
Use the handles at the back and at the front to carry the unit.
NOTICE
The indoor unit is top-heavy as long as the storage tank is empty. Secure the unit
accordingly and only transport by using the handles.
If optional Backup Heater (EKECBU*) is installed, see the installation manual of the
Backup Heater.
c
b
360°
a

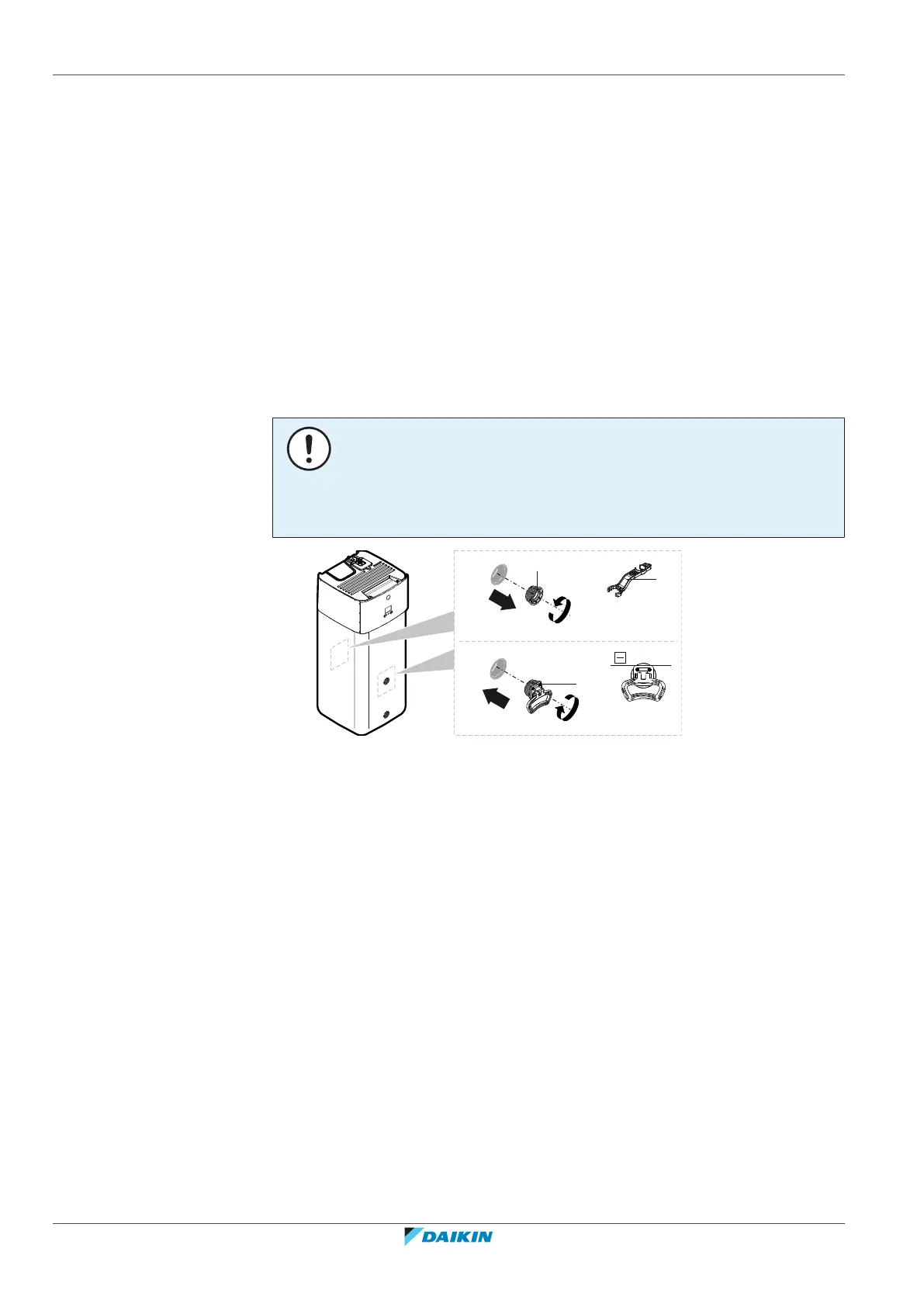

1
2
a Screw plug
b Assembly wrench
c Handle
1 Open the screw plugs on the front and back of the tank.
2 Attach the handles horizontally and turn by 360°.
3 Use the handles to carry the unit.
4 After carrying the unit remove the handles, add the screw plugs again and
insert the thread covers on the plugs.
