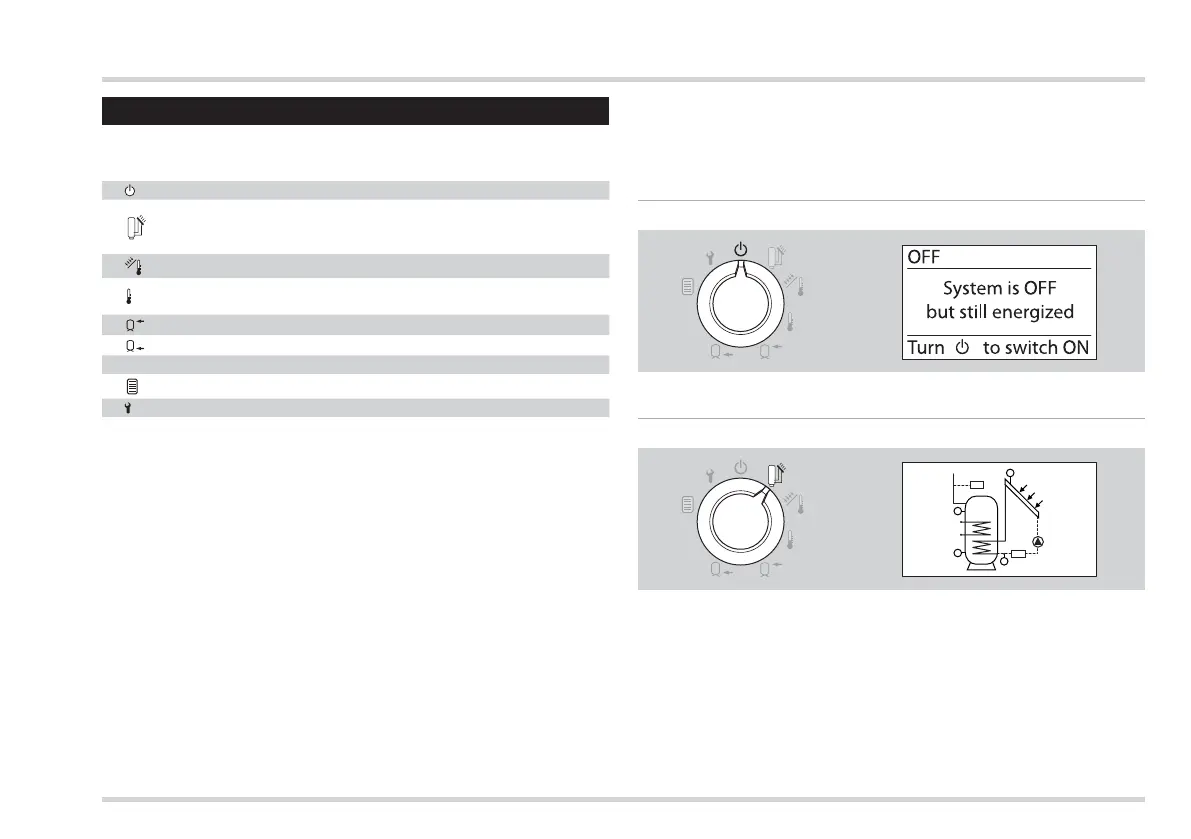

Selector switch and display
Selector switch and display
Selector switch
Standby (no function)
Automatic mode
Display of the set installation scheme with actuators
and sensors
Temperature display of collector/solid fuel boiler
2
Temperature display of additional sensor
(storage tank 2 bottom, collector 2)
Temperature display Tank top
Temperature display Tank bottom
ΣkWh
Display of day, week, month or total production
User settings
Technician Settings
Display
ڀ The display is dependent on the selector switch position.
ڀ
In the event of an error in the installation configuration, the display
lights up red, see page 50 (Troubleshooting)
Standby
2
Σ
k
W
h
ڀ The controller has power.
Automatic mode
F1
F2
A1
F3
F4
2
Σ
k
W
h
ڀ
The currently selected installation scheme with actuators and
sensors is displayed.
ڀ
With the rotary knob it is possible to select whether the
designations (e.g. F1, F2, A1) or the momentary statuses and
temperatures are displayed at the actuators and sensors.
