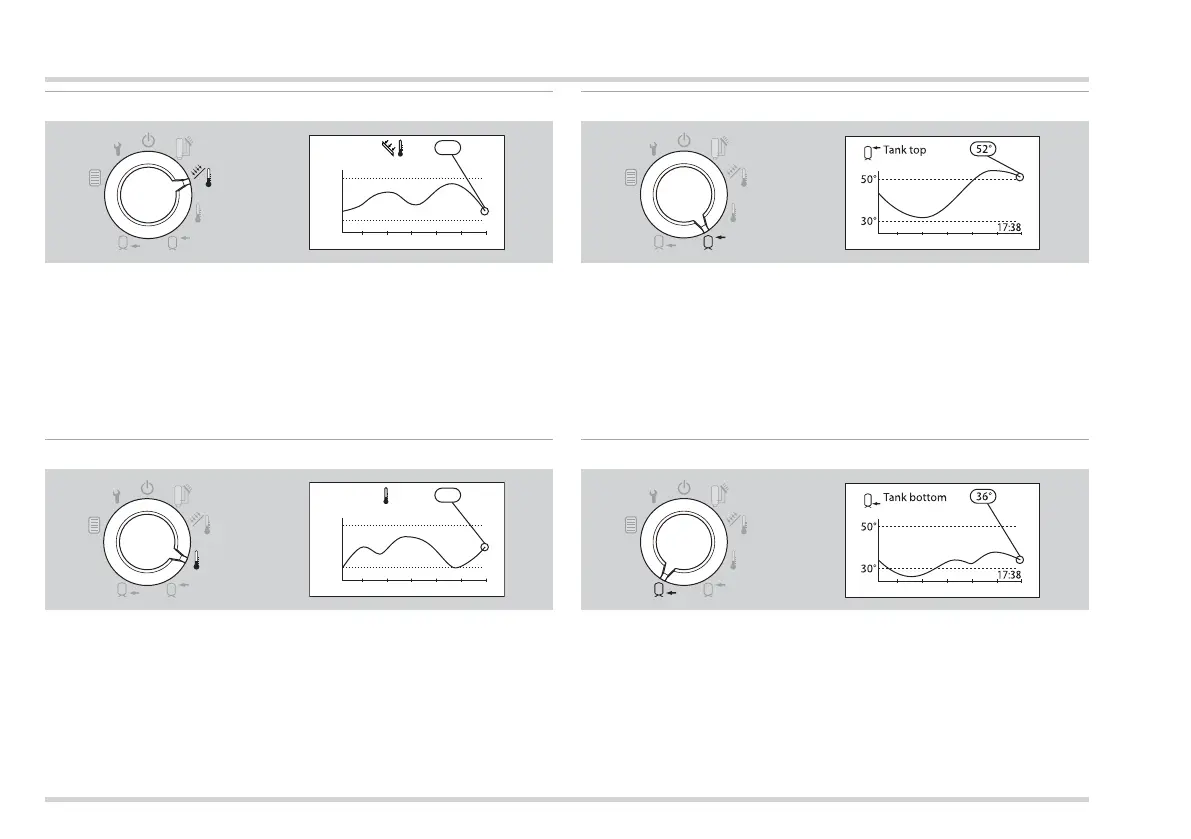

Selector switch and display
Temperature display F1 (Collector/storage tank)
17:38
80°
70°
72°
2
Σ
k
W
h
ڀ
The display shows the temperature currently measured by sensor
F1 at the collector, or alternatively for some hydraulic systems
the temperature at the sensor on the solid fuel boiler.
ڀ In addition, the temperature curve of the sensor for the last hour
is displayed.
ڀ The display is refreshed every minute, the current time is shown
in the bottom right of the diagram.
Temperature display F2 (Additional sensor)
17:38
55°
45°
50°
2
2
Σ
kWh
ڀ
The display shows the temperature currently measured by sensor
F2.
ڀ In addition, the temperature curve of the sensor for the last hour
is displayed.
ڀ The display is refreshed every minute, the current time is shown
in the bottom right of the diagram.
ڀ The display shows "Not connected" if F2 is not installed.
Temperature display F3 (Tank top)
2
Σ
k
W
h
ڀ
The display shows the temperature currently measured by sensor
F3.
ڀ In addition, the temperature curve of the sensor for the last hour
is displayed.
ڀ The display is refreshed every minute, the current time is shown
in the bottom right of the diagram.
ڀ The display shows "Not connected" if F3 is not installed.
Temperature display F4 (Tank bottom)
2
Σ
k
W
h
ڀ
The display shows the temperature currently measured by sensor
F4 in the lower half of the storage tank.
ڀ In addition, the temperature curve of the sensor for the last hour
is displayed.
ڀ
The display is refreshed every minute, the current time
is shown in the bottom right of the diagram.
