5 | Installation
Installer reference guide
25
BRP069A61+BRP069A62
Daikin Altherma LAN adapter
4P464229-1E – 2023.11

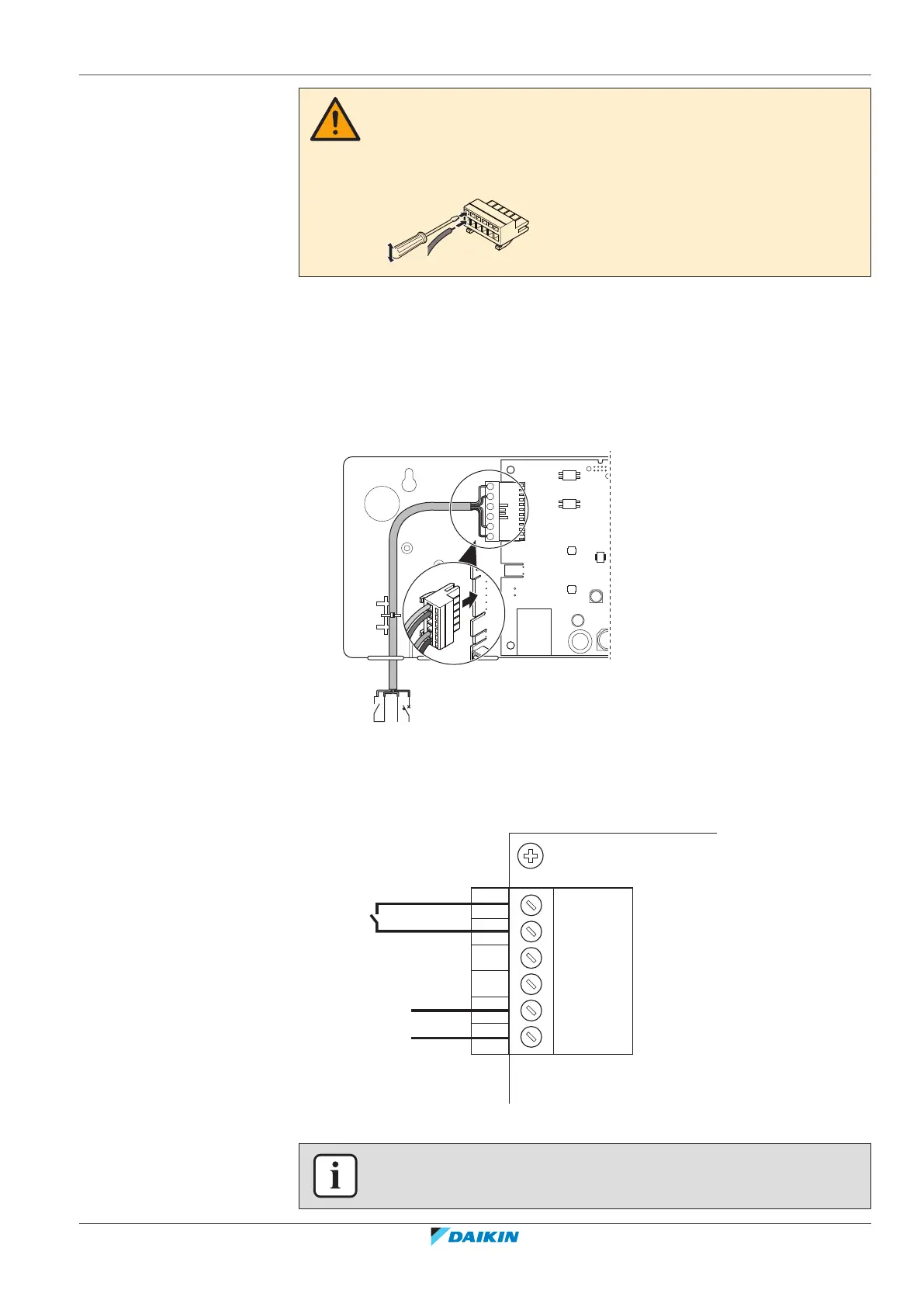

WARNING
When connecting the wiring to LAN adapter terminal X1A, make sure each wire is
securely fastened to the appropriate terminal. Use a screwdriver to open the wire
clamps. Make sure the bare copper wire is fully inserted into the terminal (bare
copper wire CANNOT be visible).
1
3
2
1 Ensure strain relief by fastening the cable with a cable tie to the cable tie
mounting.
2 Provide a detection voltage to X1A/N+L. Make sure X1A/N+L are protected by
a fast acting circuit breaker (100mA~6A, typeB).
3 For the system to run in the "Recommended ON" operation mode (Smart Grid
application), connect the digital outputs of the solar inverter/energy
management system to LAN adapter digital inputs X1A/1+2 LAN.
X4A
X1A
X2A
X3A
S1S LN
4
L
N
3
2
1
To connect to a voltage free contact (Smart Grid application)
If the solar inverter/energy management system has a voltage free contact,
connect the LAN adapter as follows:
X1A
a
3
1
2
4
N
L
230 V AC
a To voltage free contact
INFORMATION
The voltage free contact should be able to switch 230VAC – 20mA.
