8 | Electrical installation
Installer reference guide
50
AZAS100~140MUV/Y
Sky Air Active-series
4P743509-1B – 2024.05

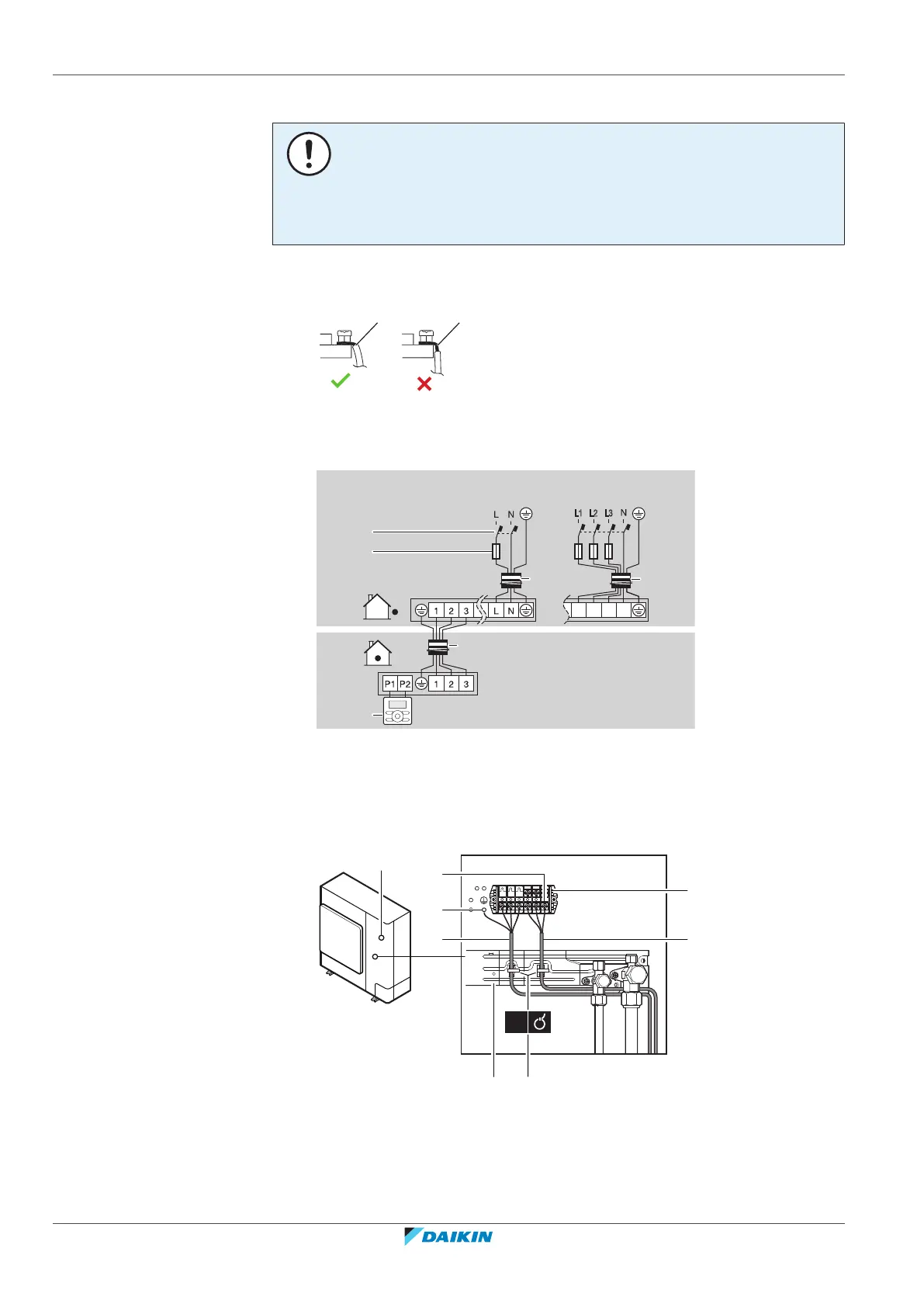

8.2.2 To connect the electrical wiring to the outdoor unit
NOTICE
▪ Follow the wiring diagram (delivered with the unit, located at the inside of the
service cover).
▪ Make sure the electrical wiring does NOT obstruct proper reattachment of the
service cover.
1 Remove the service cover. See "6.2.2To open the outdoor unit"[426].
2 Strip insulation (20mm) from the wires.
a b
a Strip wire end to this point
b An excessive strip length may cause electrical shock or leakage
3 Connect the interconnection cable and power supply as follows:
c
a
d
e
1~50 Hz
220-240 V
3N~50 Hz
380-415 V
AZAS-MV AZAS-MY
L1 L2 L3
L1 L2 L3
N
b
b
a Interconnection cable
b Power supply cable
c Earth leakage circuit breaker
d Fuse
e User interface
Example: AZAS100~140MUV
c
ef
b g
d
d
a
2×
a Switch box
b Stop valve attachment plate
c Terminal block
d Earth wire
e Power supply cable
f Interconnection cable
g Tie wrap
