6 | Unit installation
Installer reference guide
25
2MXM-A8, 3MXM-A8, 4MXM-A8, 5MXM-A8
R32 Split series
4P766272-5C – 2025.05
NOTICE
Do NOT place objects below the indoor and/or outdoor unit that may get wet.
Otherwise condensation on the unit or refrigerant pipes, air filter dirt or drain
blockage may cause dripping, and objects under the unit may get dirty or damaged.
6.1.1 Installation site requirements of the outdoor unit
INFORMATION
Also read the following requirements:
▪ "2General safety precautions"[47].
▪ "7.1.3Refrigerant piping length and height difference"[434].

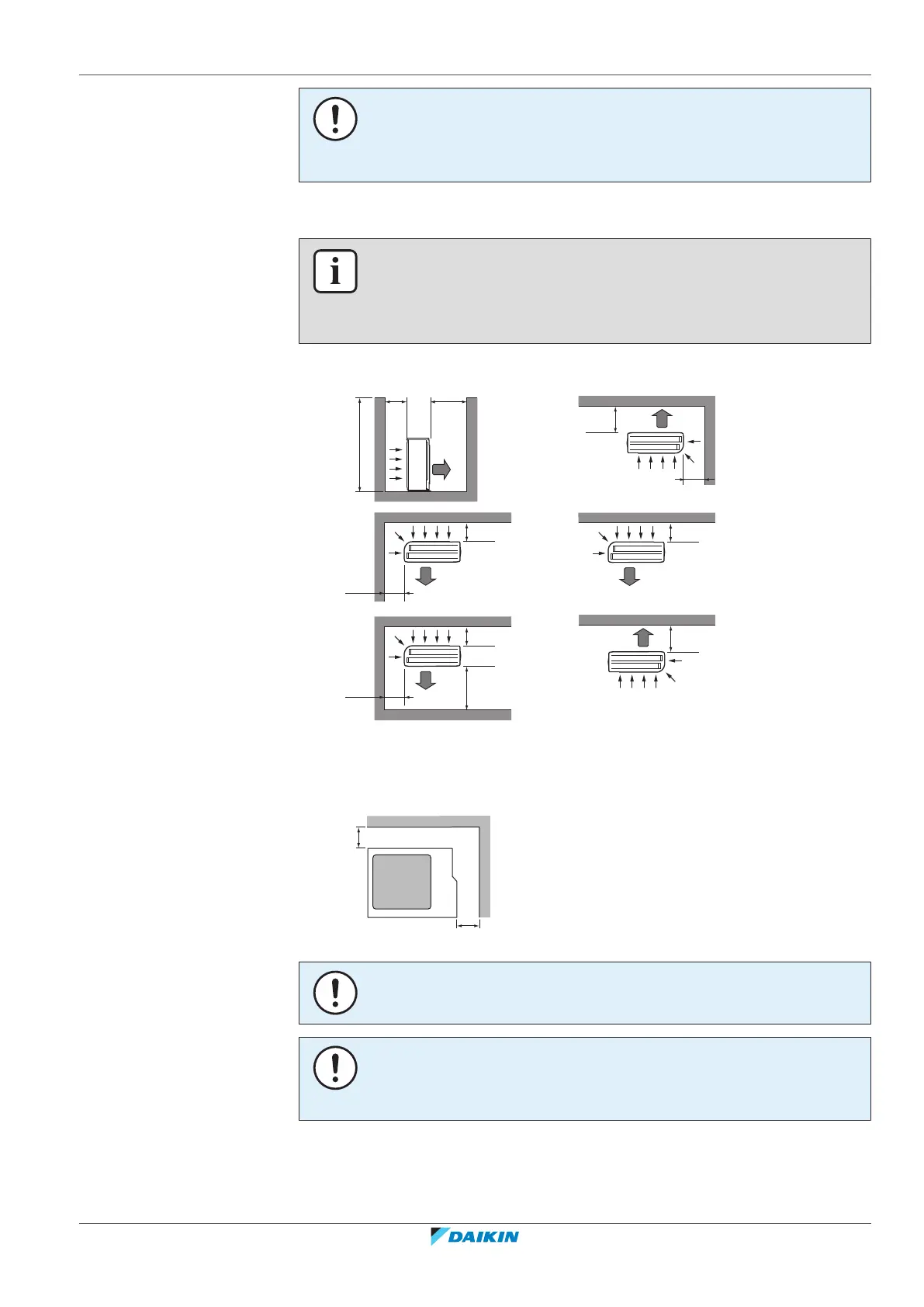

Mind the following spacing guidelines:
>100
>50
>350
(mm)
b
a
>100
>50
b
a
>100
b
a
b
a
>350
>350
>50
b
a
≤1200
>100 >350
a
b
a Air outlet
b Air inlet
Allow 300mm of work space below the ceiling surface and 250mm for piping and
electrical servicing.
>250
>300
(mm)
NOTICE
The height of the wall on the outlet side of the outdoor unit MUST be ≤1200mm.
NOTICE
▪ Do NOT stack the units on each other.
▪ Do NOT hang the unit on a ceiling.
Strong winds (≥18km/h) blowing against the outdoor unit’s air outlet causes short
circuit (suction of discharge air). This may result in:
▪ deterioration of the operational capacity;
