DMS-3130 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
19

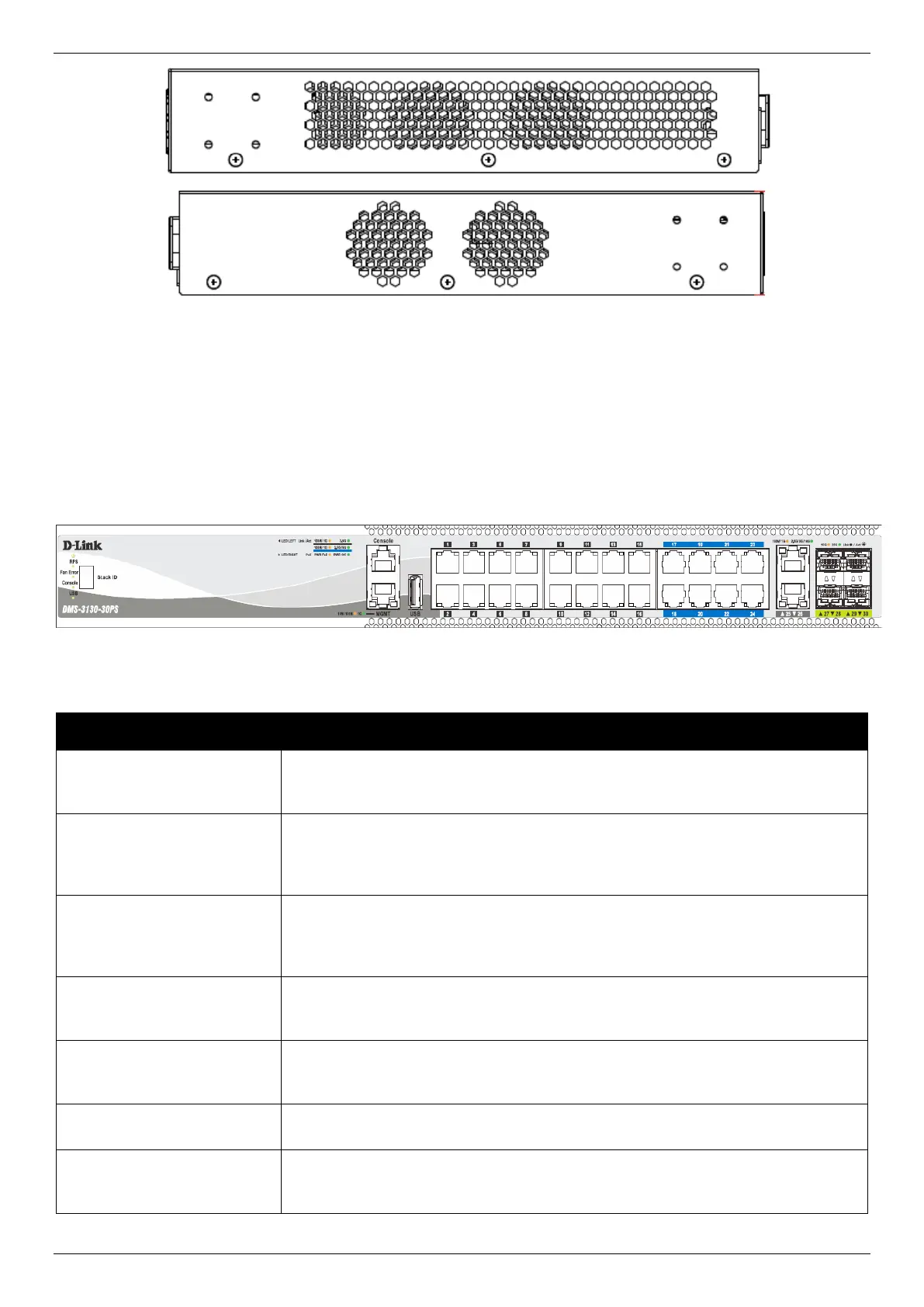

Figure 2-4 Side panels of the DMS-3130-30TS
DMS-3130-30PS Switch
Front Panel Components
The front panel of DMS-3130-30PS features a variety of LED indicators and ports.
Figure 2-5 Front panel view of the DMS-3130-30PS
Ports on the front panel of this switch
Port
Description
USB
Inserting a flash drive into the USB 2.0 Type-A port provides an additional storage
space for portable firmware images and configuration files that can be copied to
and from the NVRAM of the Switch.
MGMT
The RJ45 Management (MGMT) port is an IP-based, Out-Of-Band (OOB) port for
Telnet, web, or SNMP management that operates at 10/100/1000 Mbps wire-
speed. This port can be used to configure the Switch without being connected to
the network.
Console (RJ45)
The RJ45 console port can be used to connect to the Command Line Interface
(CLI) of the Switch for configuration, management, and monitoring. This port uses
a special console cable (included in this package) with a RJ45-to-Serial interface
to connect the Switch and the serial port (COM) of a PC.
2.5GBASE-T RJ45 PoE
Ports
The Switch is equipped with 16 RJ45 Ethernet ports. These ports can operate at
100 Mbps, 1 Gbps, or 2.5 Gbps wire-speed. These PoE ports are compliant to
IEEE802.3af and IEEE802.3at.
5GBASE-T RJ45 PoE Ports
The Switch is equipped with 8 RJ45 Ethernet ports. These ports can operate at 100
Mbps, 1 Gbps, 2.5 Gbps, or 5 Gbps wire-speed. These PoE ports are compliant to
IEEE802.3af, IEEE802.3at, and IEEE802.3bt.
10GBASE-T RJ45 Ports
The Switch is equipped with 2 RJ45 Ethernet ports. These ports can operate at 100
Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, or 10 Gbps wire-speed.
25 Gigabit SFP28 Ports
The Switch is equipped with 4 SFP28 (or optional SFP+) ports. These ports can
operate at 10 Gbps or 25 Gbps wire-speeds and support a wide collection of SFP+
or SFP28 transceivers.
