DGS-3224TG Gigabit Ethernet Switch User’s Guide
• Access Right – Displays the current access level assigned to each corresponding user. There are
three access levels: User, User+, and Root. A Root user has full read/write access, while a User has
read only access. A User+ has the same privileges as a User, but with the added ability to restart
the switch.
• New – Select this hyperlink to add a new user to the table.

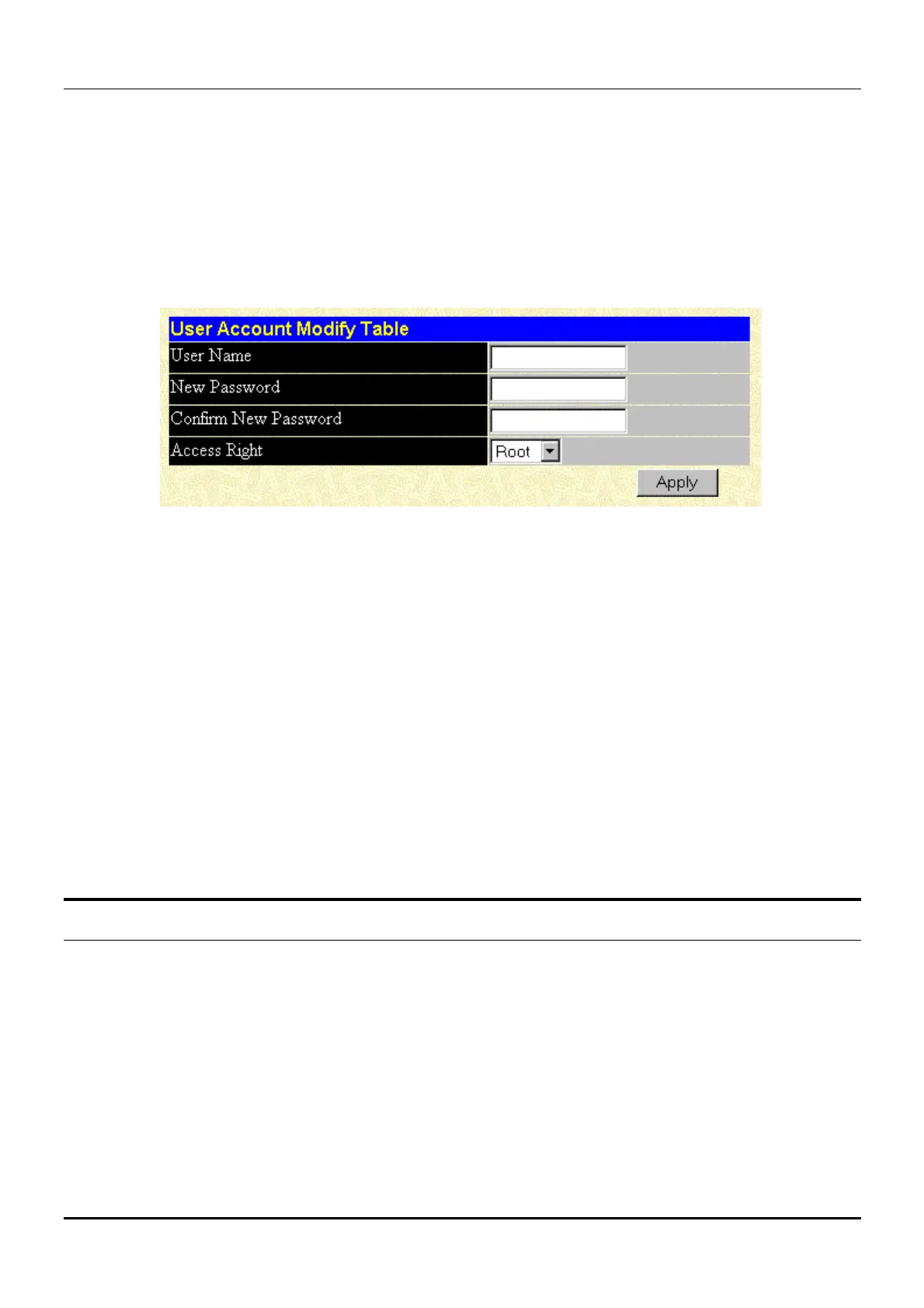

User Account Modify Table
Figure 7-25. User Account Modify Table window
To add or delete a User Account, fill in the appropriate information in the User Name, New
Password, and Confirm New Password fields. Then select the desired access, Root, User or User+,
in the Access Right control and click Apply.
The information on the window is described as follows:
• User Name – Enter a user name in this field.
• New Password – Enter the desired new password in this field.
• Confirm New Password – Enter the new password a second time.
• Access Right – Displays the current access level assigned to each corresponding user. There are
three access levels: User, User+, and Root. A Root user has full read/write access, while a User has
read only access. A User+ has the same privileges as a User, but with the added ability to restart
the Switch.
Monitoring
This category includes: Port Utilization, Packets (Received (RX), UMB_cast (RX), and Transmitted
(TX)), Errors (Received (RX) and Transmitted (TX)), Size (Received (RX)), MAC Address Table, IGMP
Snooping Table, VLAN Multicast Table, IGMP Multicast Table, and VLAN Status Table, and
secondary windows.
Port Utilization
The Switch can display the utilization percentage of a specified port in the window below.
101
