DGS-3224TG Gigabit Ethernet Switch User’s Guide
Figure 7-16. Default Port Priority assignment window
This window allows you to set a default priority for packets that have not already been assigned a
priority value. After filling out the two fields offered, click Apply to let your changes take effect.
Class of Traffic

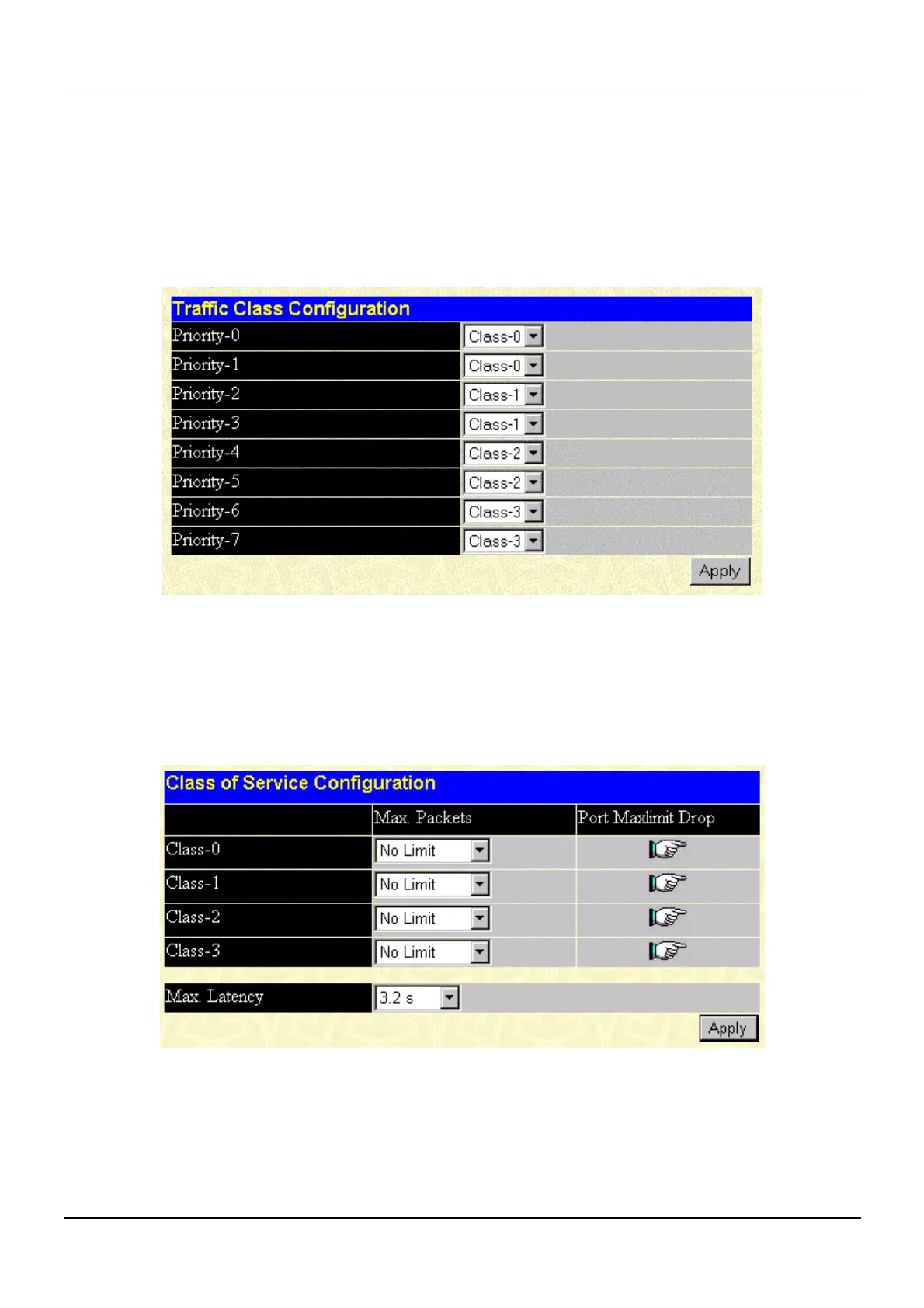

Figure 7-17. Traffic Class Configuration window
This window allows you to configure traffic class priority by specifying the class value, from 0 to 3, of
the switch’s eight levels of priority. Click Apply to let your changes take effect.
Class of Service
Figure 7-18. Class of Service Configuration window
This window allows you to set the following features:
• Max. Packets – The Class of Service scheduling algorithm starts from the highest CoS for a given
port, sends the maximum number of packets, then moves on to the next lower CoS. The values that
96
